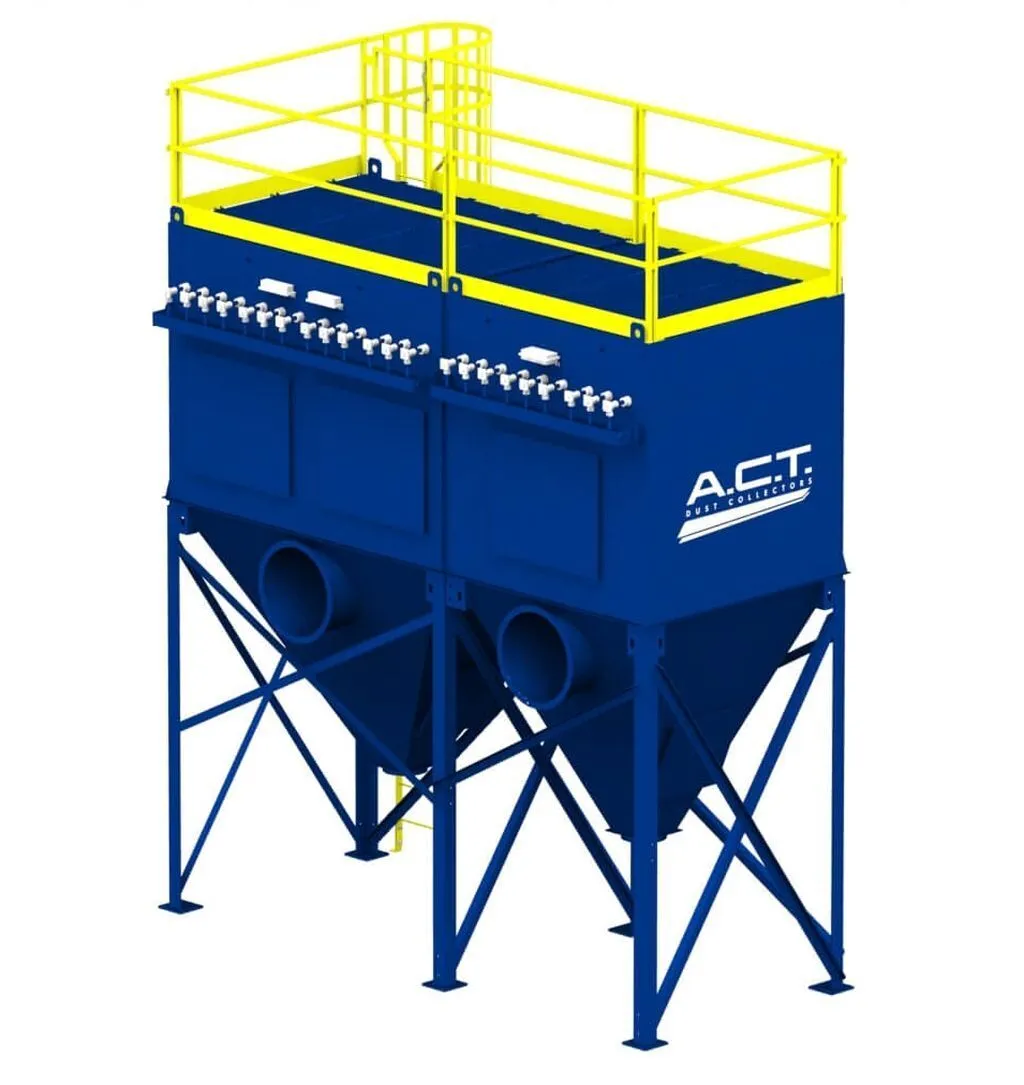

The ACT TLM 198-05 Modular Baghouse is designed to meet the unique requirements of many applications including woodworking, sanding, finishing, food processing, pharmaceutical and other industrial environments.
Often baghouses are larger systems that can process a lot of dirty air in a short amount of time. With our TLM 198-05 Baghouse Dust Collector we have kept that same principle but shortened the size of dust collector and the filter bag. This allows us to offer a smaller unit with a smaller amount of media which is ideal for various low volume applications.
The 5 foot bags and cages in this system with the tool-free top access doors is the perfect combination. If there are height restrictions in your area or if you prefer the shorter design that is no problem - we can make almost any size due to its modular design.
Specifications:
• Nominal Airflow Range (CFM)..........6,000 - 15,000
• Filter Media (ft2)..........1,555
• # TLM 81 Modules..........1
• # of TLM 117 Modules..........1
• # of Bags..........198
• # of Valves..........22
• Bag Length (ft)..........5'
• Bag Diameter (in)..........6"
• Estimated Shipping Weight (lbs)..........9,600
Filter Specifications:
DCB1211 OEM Bag Filter:
• Snap Band Top
• 16 oz. Singed Poly Media
• 6.25" Diameter
• 5 ft long
• Disc Bottom
• 275°F Temperature Limit
• Shape: Round

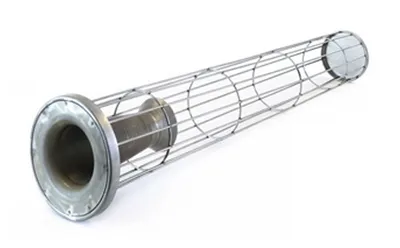

DC79251 Baghouse Cage:
• 5ft long
• Turn Down Flange (U-Channel)
• Top Load with Venturi
• 12 Vertical Wires
• 11 Gage Galvanized
• Cup Bottom
• Shape: Round
Standard Features:

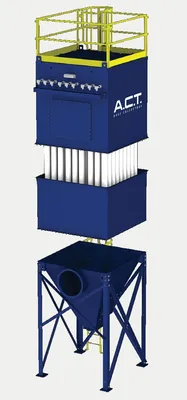

• Modular Design

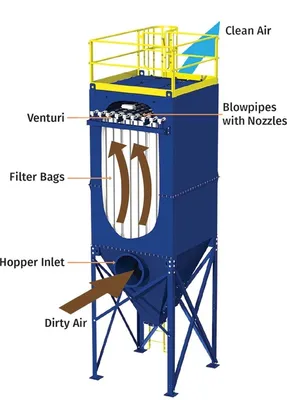

• Venturi-Assisted Pulse Jet Cleaning
• Automatic Pulse Controls for both Online & DownTime Cleaning
• Exclusive Tool-Free Bag Replacement
• Clean Side, Top Access Snap Band Filter Bags
• Top Load Filter Change Out
• Hinged Filter Access Doors
• No Confined Space Filter Access
• OSHA Compliant Hand Rail & Cages Access Ladder
• Replaceable Bolt-On Deflection Baffle
• Pressure/Vacuum Rating ±25” W.C.
• Premium Prime & Paint Exterior, High Gloss Enamel
• 16 oz Polyester Filter Bags with Stainless Steel Snapband
• Rotary Airlocks with Hopper, Mount Transitions..........Optional
• Screw Conveyors..........Optional
• Extended/Modified Steel Support Structure..........Optional
• Custom Filter Media Options..........Optional
• Motor/Blower for Specific Performance..........Optional
• Inlet or Outlet Dampers..........Optional
• Exhaust Silencer..........Optional
• Ductwork and Inlet/Outlet Manifolds..........Optional
• Afterfilter Plenums for HEPA or ASHRAE..........Optional
• NFPA 69 Compliant Backdraft Dampers / Explosion Isolation Valves..........Optional
• Explosion Venting..........Optional
• Motor Control Panels (Soft Start, VFD’s, etc.)..........Optional
• Spark Detection System..........Optional
• High Speed Abort Gates..........Optional
• High Temperature Operation Components..........Optional
• Stainless Steel Construction..........Optional
• Custom Color Exterior, Paint Finishes..........Optional
