New Piranha P-50 Ironworker
Have one to sell?
ConditionNew
1 available
New

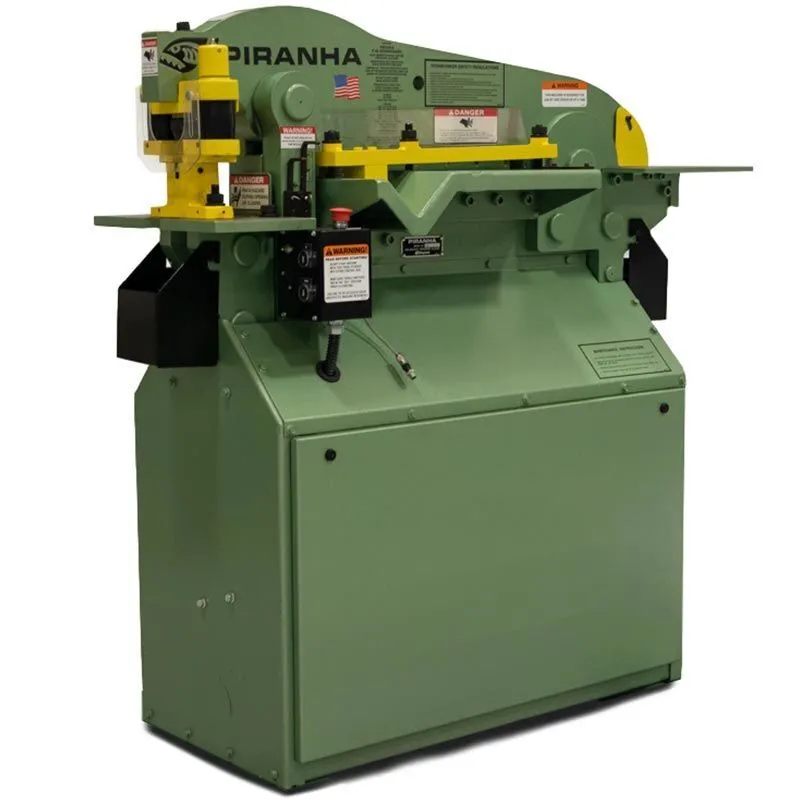

Piranha P-50 ironworker machines are the entry-level of the iconic line of Piranha hydraulic ironworker machines, but they don’t lack the toughness and precision expected from a Piranha Ironworker. 230V/ 3 Phase. P-50 also has a nice list of available attachments to enhance its usefulness. This Ironworker is in stock and ready to ship.
Maximum Specifications (rated on mild steel):
• Punching (50 Tons)..........13/16” diameter through 3/4” plate
• Throat Depth..........5”
• Bending (Optional)..........6” up to 12” w/4-way die block
• Round Bar Shear..........1/4” through 1-3/8”
• Square Bar Shear..........1/2” through 1”
• Flat Bar Shear..........12” x 3/8”, 10” x 1/2”, 6″ x 3/4″
• Angle Shear..........3” x 3” x 3/8”
• Coping/Notching..........2-1/4” x 3” x 1/4”
• Motor..........3 HP, 3 Phase
• Weight..........1,700 Lbs.
• Industry leading cycle times—punch holes in less time than other ironworkers.
Urethane Strippers—Results in less part distortion, faster cycle times, no need for stripper height adjustment.
• Integrated notching station—Low shear removes fillet for precise, burr-free cuts and clean notches.
Ergonomics—Convenient work height and visibility for all stations. The single work height also provides added benefits when using roller feed tables.
STANDARD EQUIPMENT:
• Mechanical Hold Down
• Coupling Wrench
• Punch Holder, Urethane Stripper, & Die Block
• 1/2” Allen Wrench
• Set of Angle Knives
• Foot Switch
• Set of Coper Knives
• Set of 13” Plate Shear Knives
• Instruction/Parts Book/Video Link
Piranha P-50 ironworker machines are the entry-level of the iconic line of Piranha hydraulic ironworker machines, but they don’t lack the toughness and precision expected from a Piranha Ironworker. 230V/ 3 Phase. P-50 also has a nice list of available attachments to enhance its usefulness. This Ironworker is in stock and ready to ship.
T.R. Wigglesworth is proud to offer the Piranha product line.
Imperial
| Tonnage | 50 T |
| Angle (L1) | 3" |
| Angle (L2) | 3" |
| Angle (T) | 3" |
| Power | 3 hp |
| Throat | 5" |
| Dimensions | 1700 lbs |
| Weight | 1700 lbs. |
Maximum Specifications (rated on mild steel):
• Punching (50 Tons)..........13/16” diameter through 3/4” plate
• Throat Depth..........5”
• Bending (Optional)..........6” up to 12” w/4-way die block
• Round Bar Shear..........1/4” through 1-3/8”
• Square Bar Shear..........1/2” through 1”
• Flat Bar Shear..........12” x 3/8”, 10” x 1/2”, 6″ x 3/4″
• Angle Shear..........3” x 3” x 3/8”
• Coping/Notching..........2-1/4” x 3” x 1/4”
• Motor..........3 HP, 3 Phase
• Weight..........1,700 Lbs.
• Industry leading cycle times—punch holes in less time than other ironworkers.
Urethane Strippers—Results in less part distortion, faster cycle times, no need for stripper height adjustment.
• Integrated notching station—Low shear removes fillet for precise, burr-free cuts and clean notches.
Ergonomics—Convenient work height and visibility for all stations. The single work height also provides added benefits when using roller feed tables.
STANDARD EQUIPMENT:
• Mechanical Hold Down
• Coupling Wrench
• Punch Holder, Urethane Stripper, & Die Block
• 1/2” Allen Wrench
• Set of Angle Knives
• Foot Switch
• Set of Coper Knives
• Set of 13” Plate Shear Knives
• Instruction/Parts Book/Video Link
