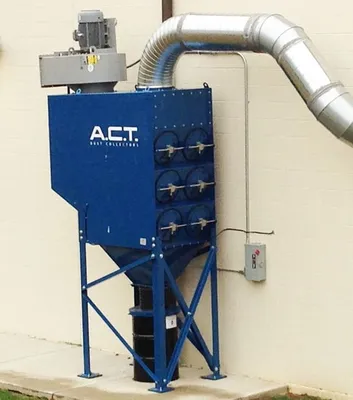

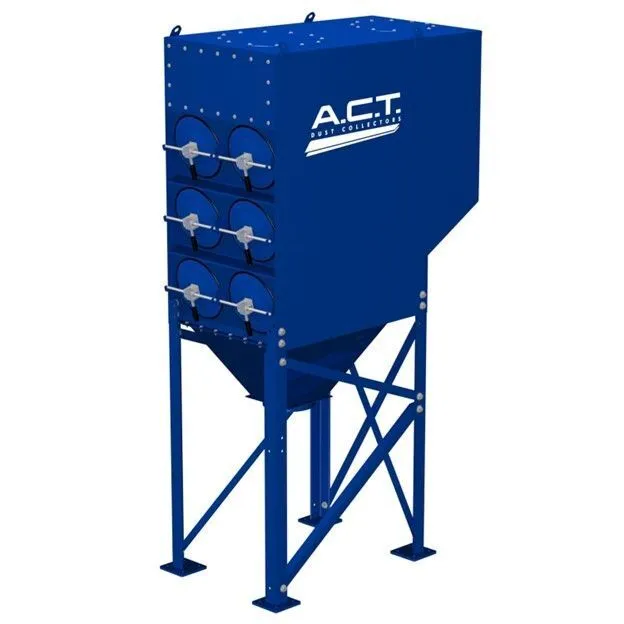

The ACT 2-16 is efficient and effective for many dust collection applications including metalworking, weld smoke and fumes, blasting, plastics and many more. Typically the ACT 2-16 would be found collecting dust and debris from a variety of areas around the building. This could include multiple weld cells or processes that require dust/fume collection.

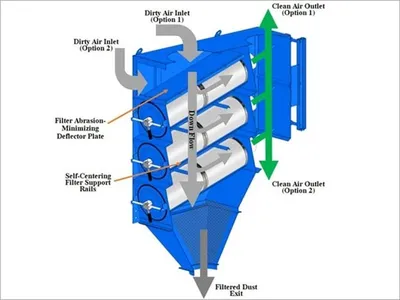

The downward airflow technology of this horizontal cartridge style dust collector, maximizes the airflow in the collector to assist with dust separation. The 4,064 square feet of media in the ACT 2-16 will help to ensure the dust collection system is operating at optimum performance.
Specifications:
• # of Filters..........16
• Filter Area..........4,064
• 2,000-14,000 CFM
• 5-40 HP
Standard Features:
• Mild Steel Construction

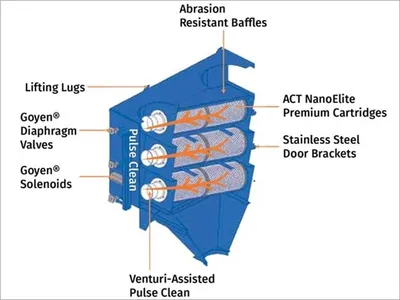

• Venturi-Assisted Pulse Filter Cleaning System
• ACTion-Lock Quick Release Filter Doors
• Inlets (2) Available
• A.C.T. Nano-Elite Nanofiber Cartridges
• Dust Drawer/Tray Bottom Material Outlet..........Optional
• Stainless Steel Construction..........Optional
• High Temperature Construction..........Optional
• Explosion Protected Models..........Optional
• Direct Drive Fans..........Optional
• Chamber and Exhaust Silencers..........Optional
• Air Management Modules..........Optional
• Steep-Sided Hopper..........Optional
• Multi-Module Hopper for Single Outlet..........Optional
• Service Platform (OSHA compliant)..........Optional
• Sprinkler Coupler..........Optional
• Alternate Filter Media Options..........Optional
• After Filter Housing..........Optional
• HSPA/ASHRAE Filters..........Optional
• Damper Pack..........Optional
• Bag-In/Bag-Out Kit (Filter & Discharge)..........Optional
• High Temp (MERV 13) Filter..........Optional
• HEPA/ASHRAE Afterfilters..........Optional
Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
• Epoxy Coating..........Optional
Hopper Discharge:
• Drum Cover and Hose
• Slide Gates..........Optional
• Rotary Valves and Transitions..........Optional
• Screw Conveyors..........Optional
Electrical Controls, Gauges & Enclosures:
• Control Box w/Digital Timer in NEMA 4 Enclosure
• Control Panel with Magnetic Starter and Digital Timer Control..........Optional
• Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control..........Optional
• Custom Panels..........Optional
• Solenoid Heater Kit..........Optional
Warranty:
• 10-Year Warranty
Filter Specifications:

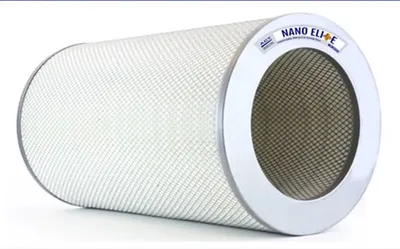

DCF22611 NANO-ELITE FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Open
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
• 27 filters per pallet
DCF22711 NANO-ELITE FLAME RETARDANT FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• Flame Retardant Coating
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• Open/Open
• 200°F Temperature Limit
• Gasket Top
• Heavy Gauge Steel Structural Elements
• Made in the USA
• 27 Filters Per Pallet
The ACT 2-16 is efficient and effective for many dust collection applications including metalworking, weld smoke and fumes, blasting, plastics and many more. Typically the ACT 2-16 would be found collecting dust and debris from a variety of areas around the building. This could include multiple weld cells or processes that require dust/fume collection.
The downward airflow technology of this horizontal cartridge style dust collector, maximizes the airflow in the collector to assist with dust separation. The 4,064 square feet of media in the ACT 2-16 will help to ensure the dust collection system is operating at optimum performance.
T.R. Wigglesworth Machinery Co. is now in partnership with A.C.T. Dust Collectors.
Clean Air, Precision Performance: The Ultimate Machining Solution
For nearly a century, T.R. Wigglesworth Machinery Co. has supplied the finest machine tools to American manufacturers. Now, in partnership with A.C.T. Dust Collectors, we offer a total solution for your shop floor. Combine our high-precision machinery with A.C.T.'s industrial air filtration systems to achieve superior results, a safer workplace, and improved efficiency.
The power of our partnership
Advanced air quality
A.C.T. Dust Collectors' high-performance filtration systems capture dust, fumes, and debris right at the source, ensuring a clean and safe environment for your employees.
Reduced maintenance costs
Protect your valuable machinery from corrosive dust, particles and fumes, significantly reducing maintenance and extending equipment life.
Optimized performance
A clean work area leads to increased employee efficiency and higher-quality results from your machinery. A.C.T.'s specialized collectors are designed to handle demanding applications, so your machinery can operate at peak performance.
Key products
Cartridge dust collectors
Efficient and powerful, these are ideal for capturing fine dust from applications such as grinding, cutting tables, and thermal spray. ADC units are mounted to the ceiling to maximize floor space.
LaserPack and Weldpack dust collectors
Dust particles, fumes and various oxides generated during the laser cutting process are dangerous to breathe. A.C.T.'s specialized LaserPack systems are designed specifically for laser cutting applications, providing maximum suction and filtration for a safer, more productive environment.
Baghouse dust collectors
A reliable and robust solution for heavy-duty applications that produce large volumes of dust and bulk powders. A.C.T. Dust Collectors’ TLM series baghouse dust collectors are most effective when the particulate is larger, and the loading is extreme.
Real-world results
A leading North American metal fabrication shop needed a large-volume filtration solution for a metalizing booth. By partnering with A.C.T. Dust Collectors, they were able to implement a robust cartridge dust collection system, ensuring a clean environment for their bridge building and transportation projects.
Ready for a total shop solution?
The T.R. Wigglesworth and A.C.T. Dust Collector partnership gives you access to a comprehensive, high-value package—combining superior machine tools with industrial-grade air quality.
Request a consultation today to design a total solution for your facility.
Imperial
| Flow Rate | 14,000 ft³/min. |
| Power | 40 hp |
Specifications:
• # of Filters..........16
• Filter Area..........4,064
• 2,000-14,000 CFM
• 5-40 HP
Standard Features:
• Mild Steel Construction
• Venturi-Assisted Pulse Filter Cleaning System
• ACTion-Lock Quick Release Filter Doors
• Inlets (2) Available
• A.C.T. Nano-Elite Nanofiber Cartridges
• Dust Drawer/Tray Bottom Material Outlet..........Optional
• Stainless Steel Construction..........Optional
• High Temperature Construction..........Optional
• Explosion Protected Models..........Optional
• Direct Drive Fans..........Optional
• Chamber and Exhaust Silencers..........Optional
• Air Management Modules..........Optional
• Steep-Sided Hopper..........Optional
• Multi-Module Hopper for Single Outlet..........Optional
• Service Platform (OSHA compliant)..........Optional
• Sprinkler Coupler..........Optional
• Alternate Filter Media Options..........Optional
• After Filter Housing..........Optional
• HSPA/ASHRAE Filters..........Optional
• Damper Pack..........Optional
• Bag-In/Bag-Out Kit (Filter & Discharge)..........Optional
• High Temp (MERV 13) Filter..........Optional
• HEPA/ASHRAE Afterfilters..........Optional
Paint System:
• Primed and Painted Interior
• Multi-Coat Paint Finish
• Custom Color..........Optional
• Epoxy Coating..........Optional
Hopper Discharge:
• Drum Cover and Hose
• Slide Gates..........Optional
• Rotary Valves and Transitions..........Optional
• Screw Conveyors..........Optional
Electrical Controls, Gauges & Enclosures:
• Control Box w/Digital Timer in NEMA 4 Enclosure
• Control Panel with Magnetic Starter and Digital Timer Control..........Optional
• Control Panel with Variable Frequency Drive (VFD) and Digital Timer Control..........Optional
• Custom Panels..........Optional
• Solenoid Heater Kit..........Optional
Warranty:
• 10-Year Warranty
Filter Specifications:
DCF22611 NANO-ELITE FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• 200°F Temperature Limit
• Open/Open
• Gasket Top
• Made in the USA
• Heavy Gauge Steel Structural Elements
• 27 filters per pallet
DCF22711 NANO-ELITE FLAME RETARDANT FILTER:
• 13.8" x 26"
• Nanofiber
• MERV 15
• Flame Retardant Coating
• 254 Sq. Foot of Media
• 350 Pleats
• Loading Dust: ASHRAE
• Shape: Round
• Open/Open
• 200°F Temperature Limit
• Gasket Top
• Heavy Gauge Steel Structural Elements
• Made in the USA
• 27 Filters Per Pallet
