New Piranha PII-140 Ironworker
Have one to sell?
ConditionNew
1000 available
New

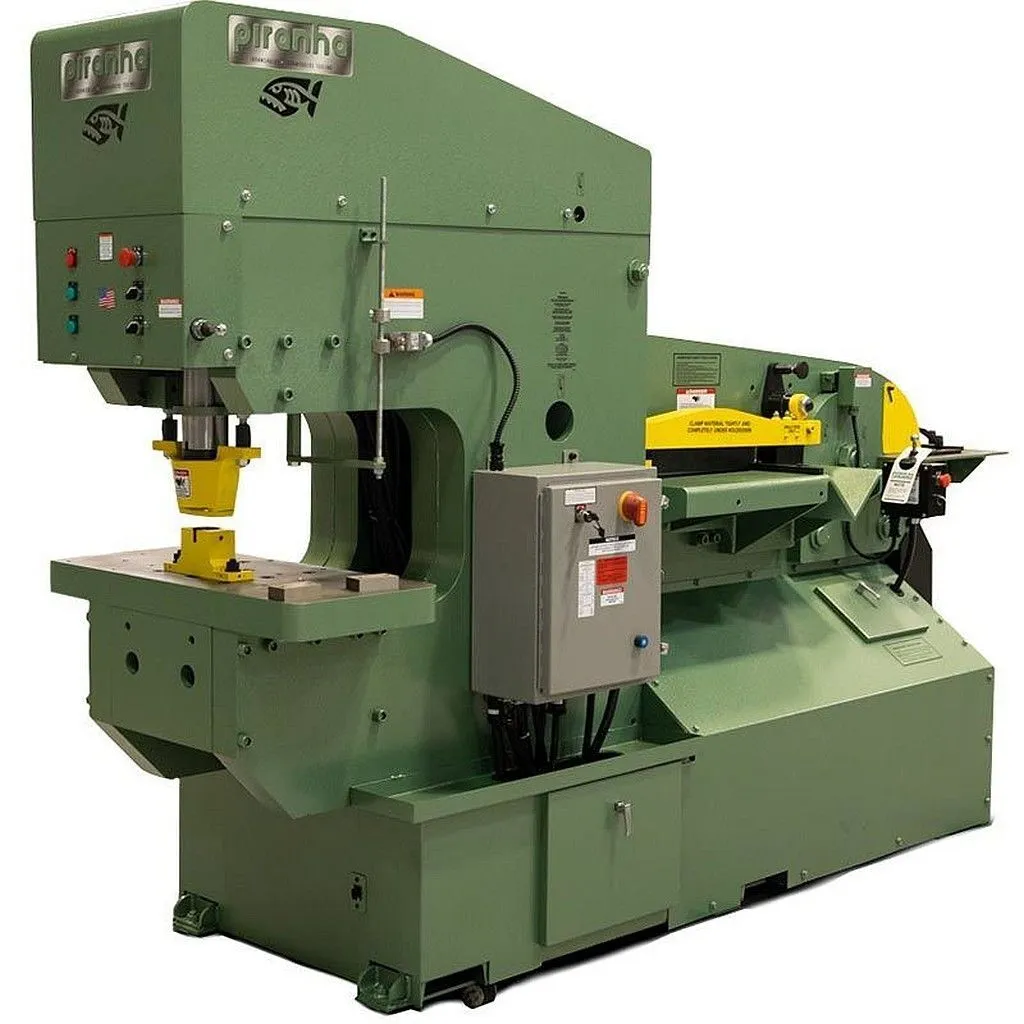

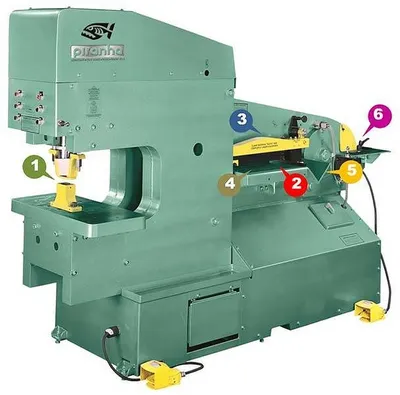

The Piranha Model PII-140 Dual Operator Ironworker has dual-operator electric controls (foot pedal and joystick) for the punch stations and shear/coper stations. Also featured are Automatic Urethane Hold Downs on the Angle, Plate and Bar Shears. The large, open punch station allows the use of a wide assortment of attachments and tooling.
Specifications:
• Punching (140 Tons)..........1-3/8” diameter through 1-1/4” plate
• Throat Depth..........20.5”
• Bending (Optional)..........18” up to 48” w/4-way die block
• Round Bar Shear..........1/2” through 2”
• Square Bar Shear..........1/2” through 1-3/8”
• Flat Bar Shear..........20” x 1/2”, 18” x 3/4”, 14″ x 1″
• Angle Shear..........6” x 6” x 5/8”
• Coping/Notching..........4” x 6” x 3/8”
• Motor..........20 HP
• Weight..........11,930 Lbs.
Standard Equipment
• Automatic Hold Down
• Coupling Wrench
• Punch Holder, Stripper, & Die Block
• 5 Punch & Die Sets 9/16” through 1-1/16”
• Chip Bucket
• Set of Angle Knives
• Extra Filter Element
• Set 1” Round Bar Knives
• Set of 20-5/8” Plate Shear Knives
• Instruction/Parts Book/Video Link
• Set of Coper Knives
ATTACHMENTS:
BENDING ATTACHMENTS:
The bending attachments are designed to increase productivity on the punch end of the machine. Bending attachments come in 18″,24″,36″ versions and a 24″ Press Brake tool holder that are mounted parallel to the beam allowing you unlimited throat depth. All bending attachments include 4-way bending dies with openings of 7/8”, 1-1/8”, 1-1/2” and 2”.
CHANNEL PROCESSING ATTACHMENTS:
On the punch end of the machine we offer an adjustable Channel Shear capable of shearing 2”-8” standard channel. We also offer a Channel Die Block which replaces the standard die block and is designed to punch a hole in the leg or web of channel.
Channel Shear Kits are size specific channel shear blades and a hold down block that replace the standard angle knives and angle block and allows you to shear channel without slug loss in the angle section of the machine.
OVERSIZE PUNCHING ATTACHMENTS:
Oversize Attachments mount in place of standard punch attachment and are designed to punch a 50-ton maximum hole. Heavy Duty attachments and urethane stripping options for attachments 2-3/4” and larger are available upon request.
QUICKSET GAUGING TABLES:
The quickset gauging table option is a productivity tool for the punch end. The gauging table mounts around the die block and uses finger stops to repeat a series of punched holes in flat bar or angle. The attachment comes with a table and flat bar gauge with measuring rules for easy hole location layout. A 5’ or 10’ extension can be added to the left or right side of the base table for longer part processing.
SHEARING BACKGAUGES:
The backgauge option is a productivity tool for the shearing section. The backgauge mounts on the drop side of the machine and uses a compression sleeve for infinite, easy adjustment to gauge cut lengths in the angle, flat bar and round bar shearing stations. Electronic versions of this backgauge are available which automatically cycles the machine every time material makes contact with the backgauge probe. A support leg is included with the 9’ and 12’ versions.
ROLLER FEED TABLES:
The roller feed tables come in 5’ lengths and can be bolted together to make longer sections for fast, easy feeding of plate or angle. Includes 20” wide rollers for flat bar and 6” rollers in the angle section. Adjustable to accommodate floor height and machine type.
PIPE NOTCHING ATTACHMENTS:
The pipe notching attachments mount easily on the platen table in place of the punch die block. This is a single notch system. To notch both sides of the pipe you must rotate the pipe and realign with the notching die for the second notch.
The pipe notching attachment is made up of three separate pieces, the pipe notching die holder, the pipe notching die and the pipe notching striker.
The pipe notching die holder is a universal die holder that bolts to the platen table and can accept 3/4” through 2” Schedule 40 Pipe Notching Dies
The pipe notching dies are spring return die sets that mount in the pipe notching die holder. Standard sizes of pipe notching dies are 3/4”, 1”, 1-1/4”, 1-1/2” and 2” Schedule 40. Other sizes of pipe and tube notching dies are available upon request but may require a different die holder.
The pipe notching striker is an extended flat bottom punch used in your standard stripper assembly to press down the pipe notching die.
The Piranha Model PII-140 Dual Operator Ironworker has dual-operator electric controls (foot pedal and joystick) for the punch stations and shear/coper stations. Also featured are Automatic Urethane Hold Downs on the Angle, Plate and Bar Shears. The large, open punch station allows the use of a wide assortment of attachments and tooling.
Imperial
| Tonnage | 140 T |
| Angle (L1) | 6" |
| Angle (L2) | 6" |
| Angle (T) | 0.625" |
| Power | 20 hp |
| Throat | 20.5" |
| Stroke | 7" |
Specifications:
• Punching (140 Tons)..........1-3/8” diameter through 1-1/4” plate
• Throat Depth..........20.5”
• Bending (Optional)..........18” up to 48” w/4-way die block
• Round Bar Shear..........1/2” through 2”
• Square Bar Shear..........1/2” through 1-3/8”
• Flat Bar Shear..........20” x 1/2”, 18” x 3/4”, 14″ x 1″
• Angle Shear..........6” x 6” x 5/8”
• Coping/Notching..........4” x 6” x 3/8”
• Motor..........20 HP
• Weight..........11,930 Lbs.
Standard Equipment
• Automatic Hold Down
• Coupling Wrench
• Punch Holder, Stripper, & Die Block
• 5 Punch & Die Sets 9/16” through 1-1/16”
• Chip Bucket
• Set of Angle Knives
• Extra Filter Element
• Set 1” Round Bar Knives
• Set of 20-5/8” Plate Shear Knives
• Instruction/Parts Book/Video Link
• Set of Coper Knives
ATTACHMENTS:
BENDING ATTACHMENTS:
The bending attachments are designed to increase productivity on the punch end of the machine. Bending attachments come in 18″,24″,36″ versions and a 24″ Press Brake tool holder that are mounted parallel to the beam allowing you unlimited throat depth. All bending attachments include 4-way bending dies with openings of 7/8”, 1-1/8”, 1-1/2” and 2”.
CHANNEL PROCESSING ATTACHMENTS:
On the punch end of the machine we offer an adjustable Channel Shear capable of shearing 2”-8” standard channel. We also offer a Channel Die Block which replaces the standard die block and is designed to punch a hole in the leg or web of channel.
Channel Shear Kits are size specific channel shear blades and a hold down block that replace the standard angle knives and angle block and allows you to shear channel without slug loss in the angle section of the machine.
OVERSIZE PUNCHING ATTACHMENTS:
Oversize Attachments mount in place of standard punch attachment and are designed to punch a 50-ton maximum hole. Heavy Duty attachments and urethane stripping options for attachments 2-3/4” and larger are available upon request.
QUICKSET GAUGING TABLES:
The quickset gauging table option is a productivity tool for the punch end. The gauging table mounts around the die block and uses finger stops to repeat a series of punched holes in flat bar or angle. The attachment comes with a table and flat bar gauge with measuring rules for easy hole location layout. A 5’ or 10’ extension can be added to the left or right side of the base table for longer part processing.
SHEARING BACKGAUGES:
The backgauge option is a productivity tool for the shearing section. The backgauge mounts on the drop side of the machine and uses a compression sleeve for infinite, easy adjustment to gauge cut lengths in the angle, flat bar and round bar shearing stations. Electronic versions of this backgauge are available which automatically cycles the machine every time material makes contact with the backgauge probe. A support leg is included with the 9’ and 12’ versions.
ROLLER FEED TABLES:
The roller feed tables come in 5’ lengths and can be bolted together to make longer sections for fast, easy feeding of plate or angle. Includes 20” wide rollers for flat bar and 6” rollers in the angle section. Adjustable to accommodate floor height and machine type.
PIPE NOTCHING ATTACHMENTS:
The pipe notching attachments mount easily on the platen table in place of the punch die block. This is a single notch system. To notch both sides of the pipe you must rotate the pipe and realign with the notching die for the second notch.
The pipe notching attachment is made up of three separate pieces, the pipe notching die holder, the pipe notching die and the pipe notching striker.
The pipe notching die holder is a universal die holder that bolts to the platen table and can accept 3/4” through 2” Schedule 40 Pipe Notching Dies
The pipe notching dies are spring return die sets that mount in the pipe notching die holder. Standard sizes of pipe notching dies are 3/4”, 1”, 1-1/4”, 1-1/2” and 2” Schedule 40. Other sizes of pipe and tube notching dies are available upon request but may require a different die holder.
The pipe notching striker is an extended flat bottom punch used in your standard stripper assembly to press down the pipe notching die.
