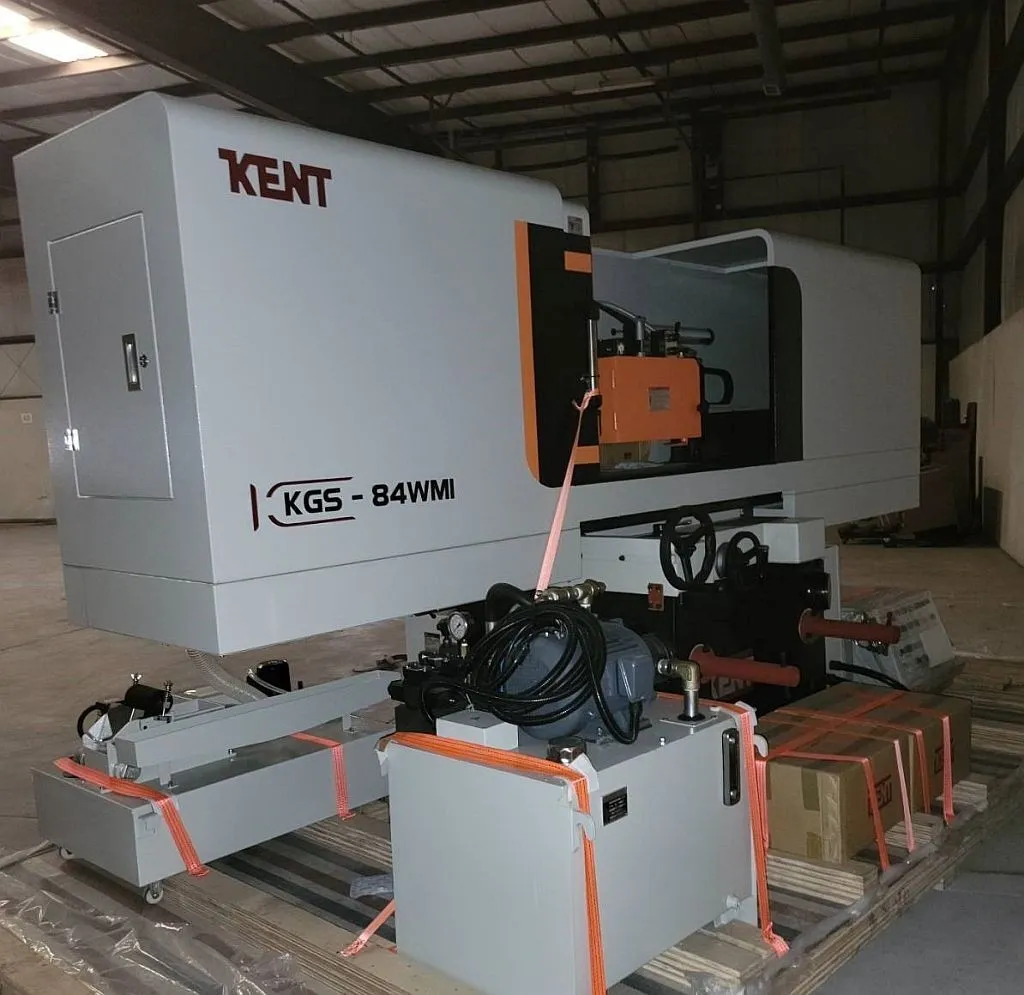

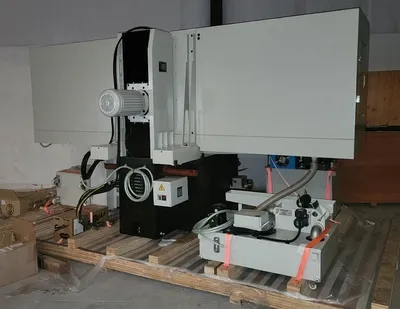

New KENT KGS 84WM1FE Wizard Precision Surface Grinder Full Enclosure "In Stock Now"

Specifications:
Capacity:
• Overall table working area(inch)……….16” x 32”
• Longitudinal table travel(inch)……….36.6”
• Crossfeed table travel(inch)……….17.75”
• Distance spindle center to table(inch)……….24”
• Table load including magnetic chuck..........1540Lbs.
Table and Crossfeed:
• T-Slot(inch x N)..........(0.5") x 3
• Longitudinal table speed(ft/min)...........4-82
• Crossfeed on handwheel 1GRA(inch)..........(0.001)
• Crossfeed on handwheel 1REV(inch)..........(0.2)
• Auto cross feed per stroke(inch)..........(0.004-0.5)
• Rapid crossfeed(inch/min)..........48
Grinding Wheel:
• Wheel dimension (OD x T x ID)(inch)……….14” x 1.5” x 5”
• Spindle speed(RPM)……….1740
Vertical Movement
• Vertical on MPG/Handwheel 1 GRA(inch)……….0.00005
• Vertical on MPG/Handwheel 1 REV(inch)……….0.005
• Auto downfeed increment(inch)……….0.00005
• Rapid Elevating(inch/min)..........12
Motor:
• Spindle motor(HP x P)……….7.5 x 4
• Elevation motor(AC Servo)(HP)..........(0.5)
• Hydraulic motor(HP x P)……….3 x 6
• Crossfeed motor(Watt x P)..........80 x 6
Dimension & Weight:
• Machine height(inch)……….74
• Floor space(inch)……….142 x 103
• Net weight(Lbs.)……….6160
• Gross weight(Lbs.)……….6600

Features:
• V & Flat Turcite Table Ways
• Double V Turcite Cross Ways
• Programmable Automatic Lubrication System
• Servo Motor Driven Automatic Down-Feed
• Downfeed & Crossfeed Ballscrews
• Halogen Light
• 16" x 32" Electro-Magnetic Chuck w/ Console Built-In Variable Power Chuck
• Control
• Magnetic Separator Coolant System
• Full Length Rear Splash Guard
• Two Front Table Splash Guard
• Overhead Parallel Dresser
• PLC Cross Feed
• Console Setting Cross Feed Travel
• Down Feed Manual Pulse Generator (MPG)
*New Mitsubishi Control & Touch-Screen Technology*

Automatic Grinding Cycle:
• Key-in Total Removal Amount and Rough Feeding Increment
• Preset Total Fine Grinding Amount and Fine Feeding Increment
• Spark-Out Time Setting
• Retract Distance Setting
• Table Parking Selection
• Spindle & Coolant Pump Stop Selection

Standard Accessories: (Included)
• Wheel Balancing Base
• Wheel Balancing Arbor
• Grinding Wheel
• Wheel Flange
• Table Dresser
• Halogen Work Light
Optional Accessories:
• Combination Magnetic Separator & Paper Coolant System (M2)
• Extra Wheel Flange
• Table Splash Guard (Rear)

Terms:
1. Detailed Specifications - See Catalogue
2. Warranty of Mechanical Parts are One Year Based on One Shift Normal Working Conditions Excluding Misuse by Ultimate Customers
3. Warranty of Electrical Parts are Ninety Days
4. Our Responsibility Ceases When Delivery is Made to the Carrier and Claims for Loss or Damage Must be Handled by Purchase Against Carrier
5. Prices and Specifications are Subject to Change Without Prior Notice
6. Prices are Based on F.O.B. Our Warehouse in South Elgin, IL
