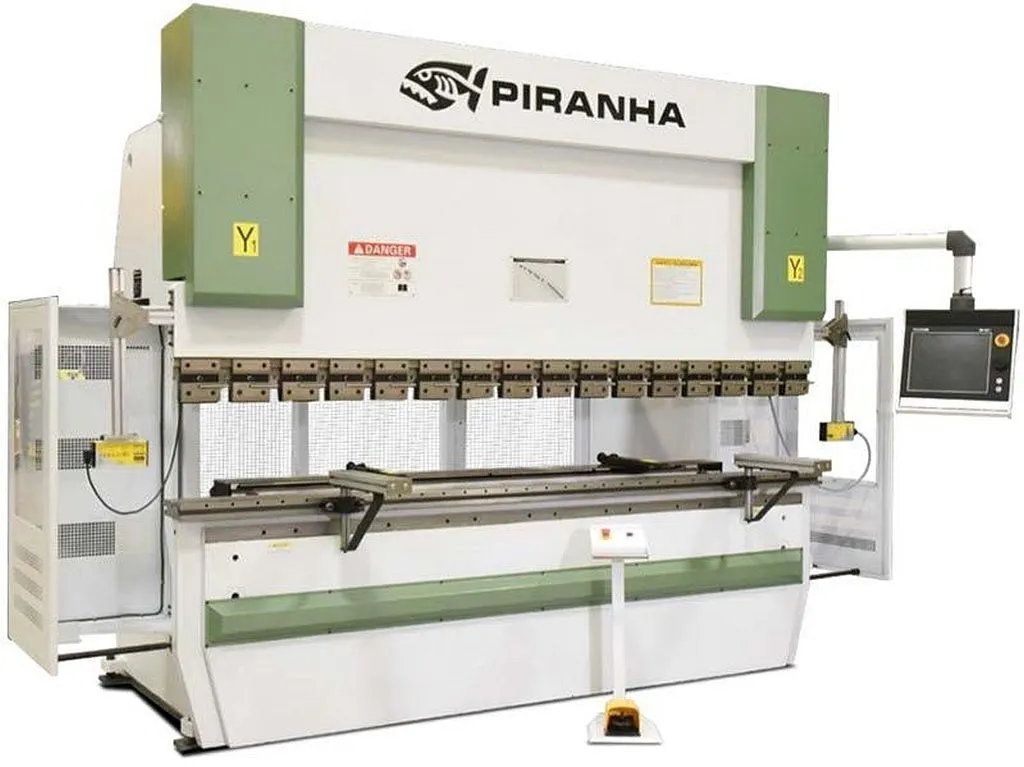

New Piranha Precision CNC Press Brake Model 280-13P
Have one to sell?
ConditionNew
1000 available
New
Presenting the new Piranha Precision CNC Press Brake Model 280-13P, with a DA58T control. With 280 tons of bending force, a 13' length, 8.5" stroke, and up to 6+1 axis configuration, this cutting-edge machine ensures precise and efficient metalwork.
Capacity & Performance:
• Pressure..... 280 TONS
• Ram Speed - Approach..... 283 IPM
• Ram Speed - Work..... 21 IPM
• Ram Speed - Return..... 248 IPM
• Repeatability..... 0.0004 IN
Dimensions & Capacity:
• Length of Worktable..... 161.4 IN
• Distance Between Uprights..... 141.5 IN
• Ram Stroke..... 8.5 IN
• Max Open Height (with die rail, without clamps)..... 17.7 IN
• Throat Depth..... 16.1IN
• Die Rail Height..... 3.15 IN
Back Gauge (X-Axis)
• Stroke..... 19.7 IN
• Work Piece Size..... 0-38.5 IN
• Max Running Speed..... 708 IPM
• Reposition Accuracy..... 0.001 IN
System & Controls
• CNC Axis with Delem Control..... Up to 6+1 Axis Configuration
• Motor Power..... 20HP
• Oil Capacity..... 115 Gallons
Overall Dimensions
• Length (L)..... 197 IN
• Width (W)..... 73 IN
• Height (H)..... 105 IN
• Machine Weight..... 32,000LBS
Optional Features:
Control Options:
• DA-58T (Standard)
• Delem DA-66T Control Upgrade, (Required for Z1, Z2 Upgrade)
• Delem DA-69T Control Upgrade
Back Gauge Options:
• Powered Z1, Z2 Upgrade (Requires DA-66T or DA-69T Control)
• X1 Prime stroke +/- 3.94” (Requires DA-66T or DA-69T Control)
• 6 Axis Upgrade X1, X2, R1, R2, Z1, Z2 (Requires DA-66T or DA-69T Control)
Front Supports and Followers:
• Linear Guied Front Sheet Supports
Throat Depth:
• *3.9” Extra Throat Depth
• *7.9” Extra Throat Depth
Stroke/Opening:
• *3.9” Extra Stroke/Opening
• *7.9” Extra Stroke/Opening
• *11.8” Extra Stroke/Opening
* When selecting this option, machine specifications such as height, weight, depth and material entry height will change from the standard machine specifications.
Clamping:
• Reversible Euro/American Fast Clamp Upgrade (15 Required)
Offline Software:
- Delem Profile T2D DA-58T or DA-66T:
• The Profile-T software offers advanced programming in 2D in line with the DA-Touch controller software. The steps from start to finish of the desired program including its transfer to the control are clearly embedded in the user interface.
• Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.
- Delem Profile T3D DA-66T:
• The Profile-T software offers advanced programming in 3D in line with the DA-Touch controller software. The steps from the start of programming to the desired program including its transfer to the control are clearly embedded in the user interface. Also includes DXF Product import.
• Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.
- Delem OP-W-3DVISUALIZATION:
• Used in conjunction with Profile T3D for viewing of 3D Products on the control.
Standard Features:
• Synchronized Precision Hydraulic Brake with 280 Tons of Bending Force and 161.4” Bed
• Ram repeatability and parallelism of 0.0004”
• 141.5” between housings (measured between the side plates of frame)
• Ram pre-machined to use European tooling (other tooling systems can be priced on request)
• Precision ground die rail with hold down bolts
• Piranha X and R Back Gauge system
• Fiessler AKAS-LC Laser Safety Curtain System
• Integrated Bed Crowning
• European/American Reversible Precision Style Manual Tool Clamps
• Manual Front Sheet Supports
• Open Height (with die rail without clamps) 17.3”
• Shut Height (with die rail without clamps) 9.2”
• Stroke 8.5”
• Throat Depth 16.1”
• Approx. Work Height 35” (for standard machine only)
• Rapid Approach 283 ipm
• Press Speed 21 ipm
• Return Speed 248 ipm
• Delem DA58 Graphical CNC Control
• Graphical 2D programming mode
• Bend sequence determination and developed length calculation
• Storage capacity 256 MB with USB peripheral interfacing
• Motor Rating = 20 H.P.
• Estimated Weight = 32,000 lbs.
Note:
• Y1, Y2 Control ram movement
• X or (X1, X2) Control back gauge front and rear movement
• X1 Prime Controls X1 only 3.94” +/-
• R or (R1, R2) Controls back gauge bar up and down
• Z1/Z2 Controls back gauge fingers left and right
• S Control compensation crowning system
Structural features:
• European design
• Full steel plate welded structure
• Stress relieved
• Machined in one set up to assure parallelism and verticality of all mounting surfaces
• Safety side door guards and rear safety gate
• Movable front support arms
Ram:
• Double guide/gib system ensures precise ram movement
• Parallel tolerance of Y1 and Y2 +/- 0.0004”
• Y1 and Y2 can be programmed separately allowing for off center loading or cone bending
• Dwell at the bottom of stroke can hold the work piece clamped under pressure and can be programmed to assure precision bends
• Slow speed return, allows the operator to control work piece after the bend is completed
• European/American Reversible Precision clamping style for upper tool holder
Hydraulic system:
• Advanced closed-loop electro-hydraulic synchronized servo-control system
• Hydraulic system from HOERBIGER, Germany
• Heidenhain linear scale and positioning system, with a hydraulic balancing system which allows processing of full length work pieces or sectionalized bending
• Overload protection
• Sight glass on tank for easy oil level checks
Back gauge system:
• Available up to 6 axis for complex parts with multiple bends
• High speed precision back gauge .001 repeatability
• X axis is driven by digital AC Servo-motors with ball screw and linear ways
• Back gauge is a box tube design for mechanical strength and rigidity
• Fingers are designed to increase the working range of back gauge
Electrical system:
• Electrical components are sourced to ensure reliability, longevity and common off the shelf replacement
• Standard Foot Pedestal with Emergency Stop Button
Crowning system:
• Integral hydraulic crowning system built into the bed. Programmed through the Delem control to ensure precise bends
• Special 3-piece design of the bed to increase the precision
CNC controller:
• Delem CNC controller from the Netherlands
• Offline programming capable
Standard tooling and configuration:
• Upper tool clamping: European/American Reversible
Precision:
• Lower die rail with standard US tang
Presenting the new Piranha Precision CNC Press Brake Model 280-13P, with a DA58T control. With 280 tons of bending force, a 13' length, 8.5" stroke, and up to 6+1 axis configuration, this cutting-edge machine ensures precise and efficient metalwork.
T.R. Wigglesworth Machinery Company is proud to offer Piranha products.
Backed by Piranha’s reputation for durability and repeatability, our press brake machines offer important advantages over other models.
P Series is available with up to 3,000 tons bending capacity, and our T Series press brake is available in tonnages ranging from 25 to 280 tons. Other tonnages and widths are available upon request – contact us for details.
Day in and day out, Piranha press brakes deliver the dependability and reliability your operation demands. Easy-to-use controls offer an unparalleled user-friendly approach. Our press brakes can handle a wide range of materials, including soft brass, heat-treated aluminum alloys, stainless steel, soft aluminum and chrome molybdenum.
Standard features include a light curtain system and the Piranha X and Manual R Back Gauge system.
This machine is well-suited for applications not requiring sophisticated control or back gauge options and makes for a solid press brake offering.
The Perfect Machine is Our Promise
As part of our Perfect Machine Process, every Piranha-Whitney hydraulic press brake is rigorously inspected in our Rockford, Illinois, facility so that it’s ready for seamless installation in your shop.
Imperial
| Tonnage | 280 T |
| Type | HYD |
| Overall Length | 13' |
| Between Housings | 11.79' |
| Stroke | 8.5" |
| # Axis | 5 |
| Control | CNC (DA-58T) |
| Dimensions | 197" x 83" x 110" |
| Weight | 37,200 lbs |
Capacity & Performance:
• Pressure..... 280 TONS
• Ram Speed - Approach..... 283 IPM
• Ram Speed - Work..... 21 IPM
• Ram Speed - Return..... 248 IPM
• Repeatability..... 0.0004 IN
Dimensions & Capacity:
• Length of Worktable..... 161.4 IN
• Distance Between Uprights..... 141.5 IN
• Ram Stroke..... 8.5 IN
• Max Open Height (with die rail, without clamps)..... 17.7 IN
• Throat Depth..... 16.1IN
• Die Rail Height..... 3.15 IN
Back Gauge (X-Axis)
• Stroke..... 19.7 IN
• Work Piece Size..... 0-38.5 IN
• Max Running Speed..... 708 IPM
• Reposition Accuracy..... 0.001 IN
System & Controls
• CNC Axis with Delem Control..... Up to 6+1 Axis Configuration
• Motor Power..... 20HP
• Oil Capacity..... 115 Gallons
Overall Dimensions
• Length (L)..... 197 IN
• Width (W)..... 73 IN
• Height (H)..... 105 IN
• Machine Weight..... 32,000LBS
Optional Features:
Control Options:
• DA-58T (Standard)
• Delem DA-66T Control Upgrade, (Required for Z1, Z2 Upgrade)
• Delem DA-69T Control Upgrade
Back Gauge Options:
• Powered Z1, Z2 Upgrade (Requires DA-66T or DA-69T Control)
• X1 Prime stroke +/- 3.94” (Requires DA-66T or DA-69T Control)
• 6 Axis Upgrade X1, X2, R1, R2, Z1, Z2 (Requires DA-66T or DA-69T Control)
Front Supports and Followers:
• Linear Guied Front Sheet Supports
Throat Depth:
• *3.9” Extra Throat Depth
• *7.9” Extra Throat Depth
Stroke/Opening:
• *3.9” Extra Stroke/Opening
• *7.9” Extra Stroke/Opening
• *11.8” Extra Stroke/Opening
* When selecting this option, machine specifications such as height, weight, depth and material entry height will change from the standard machine specifications.
Clamping:
• Reversible Euro/American Fast Clamp Upgrade (15 Required)
Offline Software:
- Delem Profile T2D DA-58T or DA-66T:
• The Profile-T software offers advanced programming in 2D in line with the DA-Touch controller software. The steps from start to finish of the desired program including its transfer to the control are clearly embedded in the user interface.
• Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.
- Delem Profile T3D DA-66T:
• The Profile-T software offers advanced programming in 3D in line with the DA-Touch controller software. The steps from the start of programming to the desired program including its transfer to the control are clearly embedded in the user interface. Also includes DXF Product import.
• Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.
- Delem OP-W-3DVISUALIZATION:
• Used in conjunction with Profile T3D for viewing of 3D Products on the control.
Standard Features:
• Synchronized Precision Hydraulic Brake with 280 Tons of Bending Force and 161.4” Bed
• Ram repeatability and parallelism of 0.0004”
• 141.5” between housings (measured between the side plates of frame)
• Ram pre-machined to use European tooling (other tooling systems can be priced on request)
• Precision ground die rail with hold down bolts
• Piranha X and R Back Gauge system
• Fiessler AKAS-LC Laser Safety Curtain System
• Integrated Bed Crowning
• European/American Reversible Precision Style Manual Tool Clamps
• Manual Front Sheet Supports
• Open Height (with die rail without clamps) 17.3”
• Shut Height (with die rail without clamps) 9.2”
• Stroke 8.5”
• Throat Depth 16.1”
• Approx. Work Height 35” (for standard machine only)
• Rapid Approach 283 ipm
• Press Speed 21 ipm
• Return Speed 248 ipm
• Delem DA58 Graphical CNC Control
• Graphical 2D programming mode
• Bend sequence determination and developed length calculation
• Storage capacity 256 MB with USB peripheral interfacing
• Motor Rating = 20 H.P.
• Estimated Weight = 32,000 lbs.
Note:
• Y1, Y2 Control ram movement
• X or (X1, X2) Control back gauge front and rear movement
• X1 Prime Controls X1 only 3.94” +/-
• R or (R1, R2) Controls back gauge bar up and down
• Z1/Z2 Controls back gauge fingers left and right
• S Control compensation crowning system
Structural features:
• European design
• Full steel plate welded structure
• Stress relieved
• Machined in one set up to assure parallelism and verticality of all mounting surfaces
• Safety side door guards and rear safety gate
• Movable front support arms
Ram:
• Double guide/gib system ensures precise ram movement
• Parallel tolerance of Y1 and Y2 +/- 0.0004”
• Y1 and Y2 can be programmed separately allowing for off center loading or cone bending
• Dwell at the bottom of stroke can hold the work piece clamped under pressure and can be programmed to assure precision bends
• Slow speed return, allows the operator to control work piece after the bend is completed
• European/American Reversible Precision clamping style for upper tool holder
Hydraulic system:
• Advanced closed-loop electro-hydraulic synchronized servo-control system
• Hydraulic system from HOERBIGER, Germany
• Heidenhain linear scale and positioning system, with a hydraulic balancing system which allows processing of full length work pieces or sectionalized bending
• Overload protection
• Sight glass on tank for easy oil level checks
Back gauge system:
• Available up to 6 axis for complex parts with multiple bends
• High speed precision back gauge .001 repeatability
• X axis is driven by digital AC Servo-motors with ball screw and linear ways
• Back gauge is a box tube design for mechanical strength and rigidity
• Fingers are designed to increase the working range of back gauge
Electrical system:
• Electrical components are sourced to ensure reliability, longevity and common off the shelf replacement
• Standard Foot Pedestal with Emergency Stop Button
Crowning system:
• Integral hydraulic crowning system built into the bed. Programmed through the Delem control to ensure precise bends
• Special 3-piece design of the bed to increase the precision
CNC controller:
• Delem CNC controller from the Netherlands
• Offline programming capable
Standard tooling and configuration:
• Upper tool clamping: European/American Reversible
Precision:
• Lower die rail with standard US tang
We use cookies to improve your experience. Privacy Policy.
