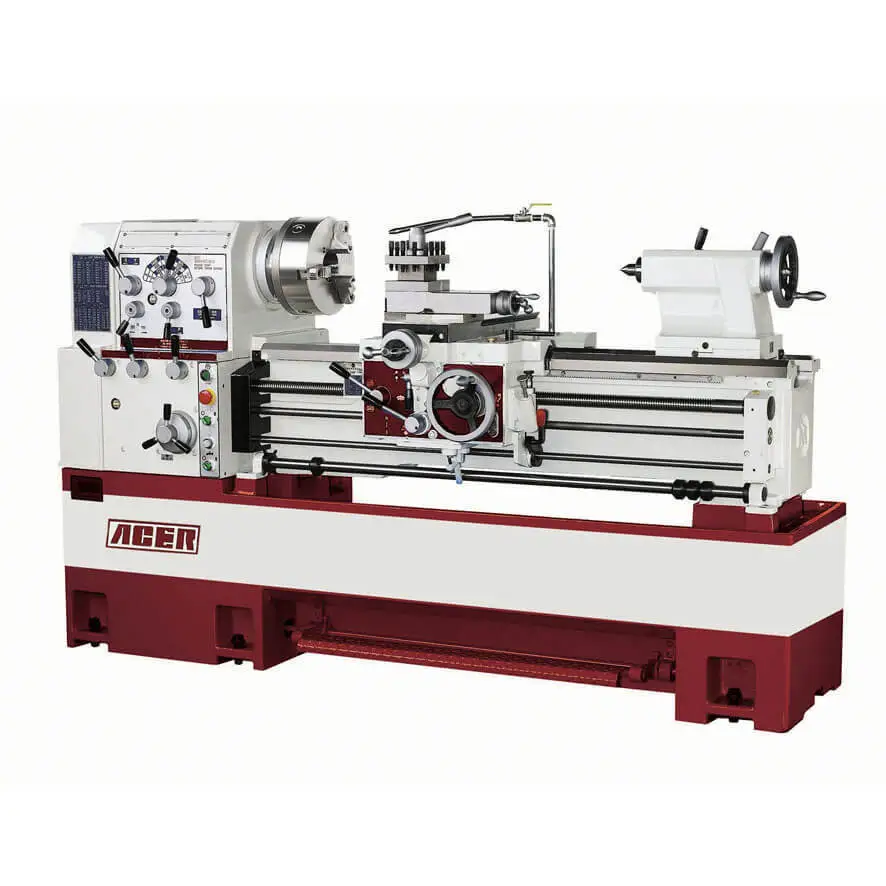

Introducing the new ACER Dynamic-2130S Precision Engine Lathe. With a 20.5" swing, 30" between centers, and 3.1" spindle bore, it boasts a 10 hp motor, 2,000 RPM, and D1-8 spindle nose. Features include an auto feed/thread interlock and a built-in coolant system.
MODEL 2130S
General Capacity:
• Swing over bed .......... 520 mm/20.5"
• Swing over gap .......... 740 mm/29.1"
• Swing over cross slide .......... 330 mm/13"
• Distance between centers .......... 760 mm/30"
• Width of bed .......... 300 mm/11.8"
Headstock:
• Spindle nose .......... D1-8
• Spindle bore .......... 78 mm/3.1"
• Spindle speeds .......... 20~2000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 4~56 T.P.I.
• Metric threads range .......... P 0.5~P 7
• Longitudinal feeds range .......... 0.050.82 mm/0.002" 0.032"
• Cross feeds range .......... 0.02~0.40 mm/0.0008"~0.016"
• Leadscrew diameter .......... 35 mm/1.4"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Carriage:
• Taper of tail center .......... MT 4
• Compound rest travel .......... 125 mm/4.9"
• Cross slide travel .......... 275 mm/10.8"
Tailstock:
• Tail spindle travel .......... 150 mm/5.9"
• Tail spindle diameter .......... 68 mm/2.7"
Power:
• Main drive motor .......... 7.5HP (5.625KW)/10HP (7.5 KW, Opt.)
• Coolant pump .......... 1/8 HP (0.1KW)
Dimensions:
• Machine Dimensions .......... 189 x 81 x 123 cm/74" x 32" x 48"
• Packing Dimensions .......... 198 x 95 x 162 cm/78" x 37" x 64"
• Net Weight .......... 1760 kgs/3880 lbs
• Gross Weight .......... 1860 kgs/4101 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
Features:
• The 21" series is available in 30", 40", 60", and 80" distance between centers
• 3.1" spindle bore with D1-8 spindle nose
• 10 hp spindle motor
• Spindle speed 20 - 2000 rpm (12 spindle speed)
• Auto. feed & threading are interlocked to prevent simultenious functions
• Thermal treated meehanite casting bed; bed hardness reaches HS70
• Heat treated and precision ground alloy gears
• Universal gearbox for both inch/metric thread & conversion chart
• Automatic longitudinal multiple feed stop
• Bed width 11.81"
STANDARD ACCESSORIES:
• Gap bed
• Steady rest: bronze tip (0.39" - 6.29")
• 1 face plate
• 4-way tool post
• Built-in coolant system
• Halogen work light
• Tool box w/ tools and touch-up paint
• Full length splash guard
• Operations manual
OPTIONAL ACCESSORIES (ADDITIONAL):
• 3-jaw scroll chuck
• 12" 4-jaw independent chuck (D1-8) (SC strong)
• 3-jaw adaptor plate
• 4-jaw adaptor plate
• Follow rest: bronze tip (0.59" - 3.14")
• LED light
• 4-position carriage stop
• Micro carriage stop
• Live centers
• Taper turning attachment
• Splash guard
• Chuck guard with safety switch
• Change gears for DP and MP thread
• 5C collet closer
• Drive plate
• Quick change tool post
• Digital readout
• Chip guard
• Installation fee for taper turning attachment
• Installation fee for collet closer
• Installation fee for DRO
• Installation fee for rear splash guard
** Machine subject to ocean freight surcharge
** Above prices are based on F.O.B. Piscataway, NJ
** Prices and designs are subject to change without notice
** Manufacturer reserves the right to modify the design without notice
