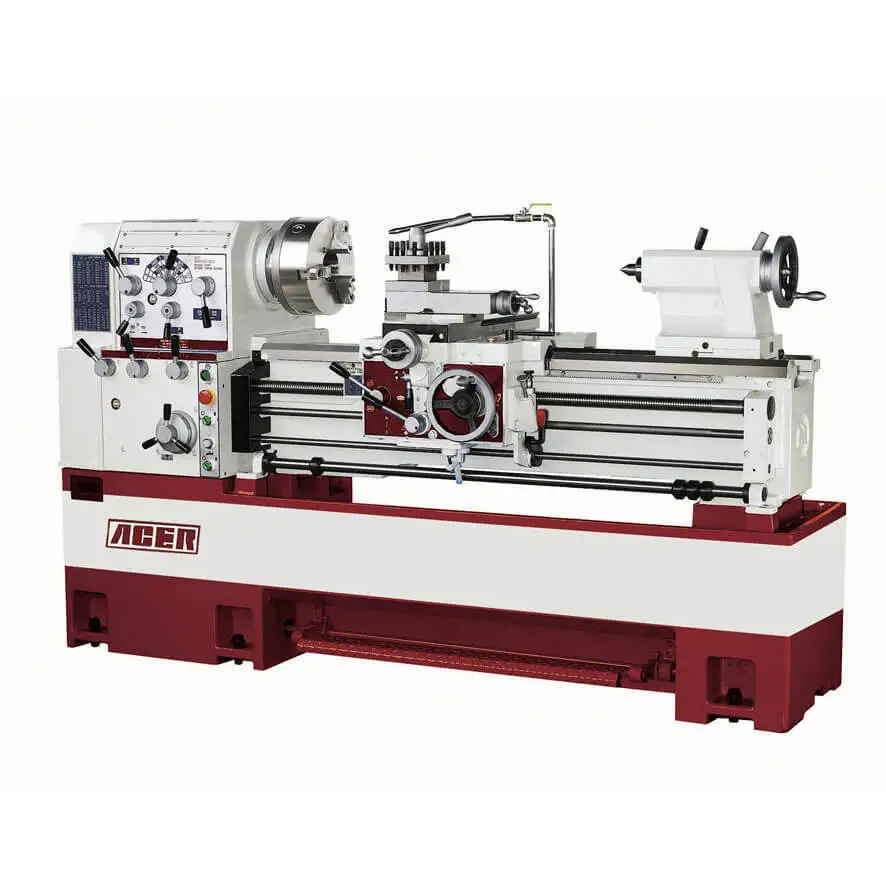

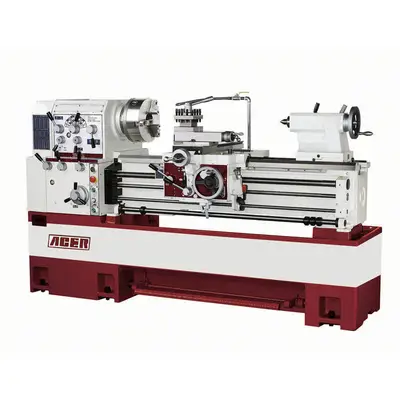

New ACER Dynamic-2140S Precision Engine Lathe
Have one to sell?
ConditionNew
New
Explore precision with the new ACER Dynamic-2140S Lathe. Feature-packed with a 20.5" swing, 3.1" spindle bore, and 10 HP, it operates at 20-2000 RPM. Includes built-in coolant, a halogen light, and more. Upgrade with optional accessories.
MODEL 2140S
General Capacity:
• Swing over bed..........520 mm / 20.5"
• Swing over gap.......... 740 mm / 29.1"
• Swing over cross slide.......... 330 mm / 13"
• Distance between centers.......... 1000 mm / 39"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1-8
• Spindle bore diameter.......... 78 mm / 3.1"
• Spindle speeds.......... 20 - 2000 RPM (12 steps)
• Taper of spindle bore.......... MT 7
Threading:
• Inch thread range.......... 4 - 56 TPI
• Metric threads range.......... P 0.5 - P 7
• Longitudinal feeds range.......... 0.05 - 0.82 mm / 0.002" - 0.032"
• Cross feeds range..........0.02 - 0.40 mm / 0.0008 - 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 TPI or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel..........125 mm / 4.9"
• Cross slide travel.......... 275 mm / 10.8"
Tailstock:
• Tail spindle diameter.......... 150 mm / 5.9"
• Tail spindle travel.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 HP (5.5 KW) / 10 HP (7.5 KW)
• Coolant pump motor.......... 1/8 HP (0.1 KW)
Machine Dimensions:
• Machine Dimensions..........85" x 32" x 48"
• Packing dimensions..........90" x 37" x 64"
• Net weight.......... 1810 kg / 3990 lbs
• Gross weight.......... 1910 kg / 4211 lbs
***NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
Features:
• The 21" series is available in 22", 30", 40", 60", and 80" distance between centers
• 3.1" spindle bore with D1-8 spindle nose
• 10 hp spindle motor
• Spindle speed 20 - 2000 rpm (12 spindle speed)
• Auto. feed & threading are interlocked to prevent simultanious functions
• Thermal treated meehanite casting bed; bed hardness reaches HS70
• Heat treated and precision ground alloy gears
• Universal gearbox for both inch/metric thread & conversion chart
• Automatic longitudinal multiple feed stop
• Bed width 11.81"
STANDARD ACCESSORIES:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
OPTIONAL ACCESSORIES (ADDITIONAL):
• 3-jaw scroll chuck
• 12" 4-jaw independent chuck (D1-8) (SC strong)
• 3-jaw adaptor plate
• 4-jaw adaptor plate
• Follow rest: bronze tip (0.59" - 3.14")
• LED light
• 4-position carriage stop
• Micro carriage stop
• Live centers
• Taper turning attachment
• Splash guard
• Chuck guard with safety switch
• Change gears for DP and MP thread
• 5C collet closer
• Drive plate
• Quick change tool post
• Digital readout
• Chip guard
• Installation fee for taper turning attachment
• Installation fee for collet closer
• Installation fee for DRO
• Installation fee for rear splash guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
Explore precision with the new ACER Dynamic-2140S Lathe. Feature-packed with a 20.5" swing, 3.1" spindle bore, and 10 HP, it operates at 20-2000 RPM. Includes built-in coolant, a halogen light, and more. Upgrade with optional accessories.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.
Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
The Acer Dynamic Lathe series are high-speed, precision-geared head engine lathes renowned for their robust construction, exceptional durability, and precision engineering capabilities. Built with high-tensile cast iron, these machines are designed to withstand demanding industrial environments and are a reliable choice for a wide range of machining operations, from intricate parts for aerospace to heavy-duty automotive components.
Key Features & Specifications:
Ideal For:
The Acer Dynamic series is ideal for job shops, manufacturing facilities, and educational institutions seeking a reliable, high-precision manual lathe capable of handling both general-purpose and intricate turning operations with consistency and power.
Imperial
| Swing | 20.5" |
| Centers | 39" |
| Spindle Bore | 3.1" |
| Power | 10 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 13" |
| Dimensions | 85" x 32" x 48" |
| Weight | 3,990Lbs. |
MODEL 2140S
General Capacity:
• Swing over bed..........520 mm / 20.5"
• Swing over gap.......... 740 mm / 29.1"
• Swing over cross slide.......... 330 mm / 13"
• Distance between centers.......... 1000 mm / 39"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1-8
• Spindle bore diameter.......... 78 mm / 3.1"
• Spindle speeds.......... 20 - 2000 RPM (12 steps)
• Taper of spindle bore.......... MT 7
Threading:
• Inch thread range.......... 4 - 56 TPI
• Metric threads range.......... P 0.5 - P 7
• Longitudinal feeds range.......... 0.05 - 0.82 mm / 0.002" - 0.032"
• Cross feeds range..........0.02 - 0.40 mm / 0.0008 - 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 TPI or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel..........125 mm / 4.9"
• Cross slide travel.......... 275 mm / 10.8"
Tailstock:
• Tail spindle diameter.......... 150 mm / 5.9"
• Tail spindle travel.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 HP (5.5 KW) / 10 HP (7.5 KW)
• Coolant pump motor.......... 1/8 HP (0.1 KW)
Machine Dimensions:
• Machine Dimensions..........85" x 32" x 48"
• Packing dimensions..........90" x 37" x 64"
• Net weight.......... 1810 kg / 3990 lbs
• Gross weight.......... 1910 kg / 4211 lbs
***NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
Features:
• The 21" series is available in 22", 30", 40", 60", and 80" distance between centers
• 3.1" spindle bore with D1-8 spindle nose
• 10 hp spindle motor
• Spindle speed 20 - 2000 rpm (12 spindle speed)
• Auto. feed & threading are interlocked to prevent simultanious functions
• Thermal treated meehanite casting bed; bed hardness reaches HS70
• Heat treated and precision ground alloy gears
• Universal gearbox for both inch/metric thread & conversion chart
• Automatic longitudinal multiple feed stop
• Bed width 11.81"
STANDARD ACCESSORIES:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
OPTIONAL ACCESSORIES (ADDITIONAL):
• 3-jaw scroll chuck
• 12" 4-jaw independent chuck (D1-8) (SC strong)
• 3-jaw adaptor plate
• 4-jaw adaptor plate
• Follow rest: bronze tip (0.59" - 3.14")
• LED light
• 4-position carriage stop
• Micro carriage stop
• Live centers
• Taper turning attachment
• Splash guard
• Chuck guard with safety switch
• Change gears for DP and MP thread
• 5C collet closer
• Drive plate
• Quick change tool post
• Digital readout
• Chip guard
• Installation fee for taper turning attachment
• Installation fee for collet closer
• Installation fee for DRO
• Installation fee for rear splash guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
