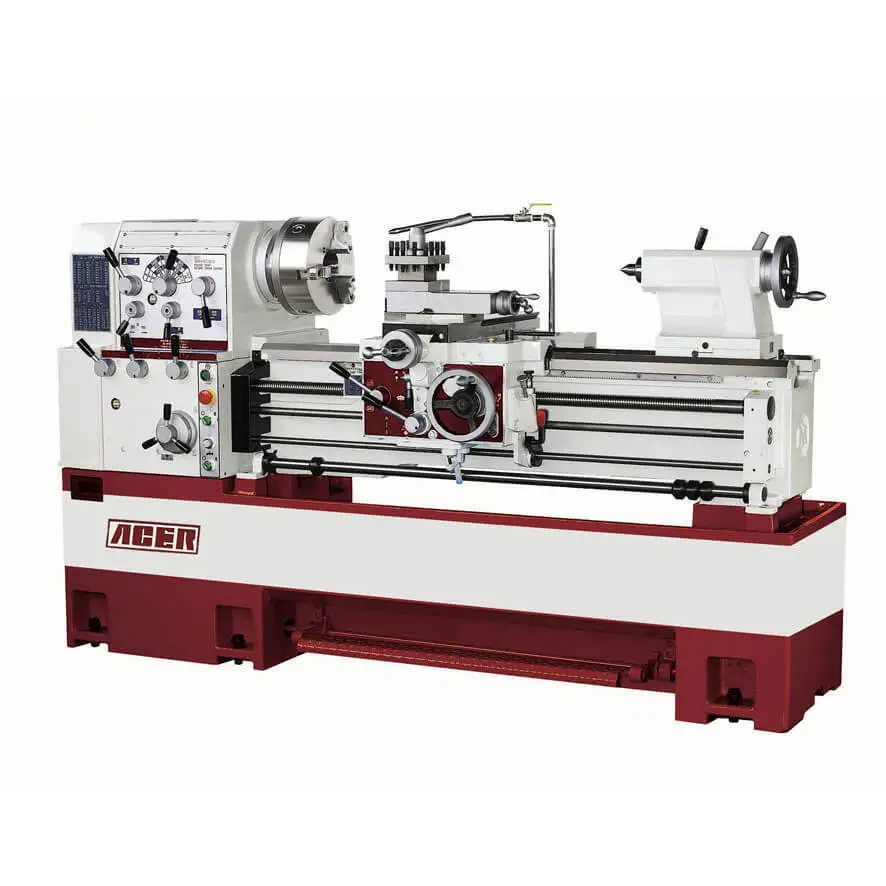

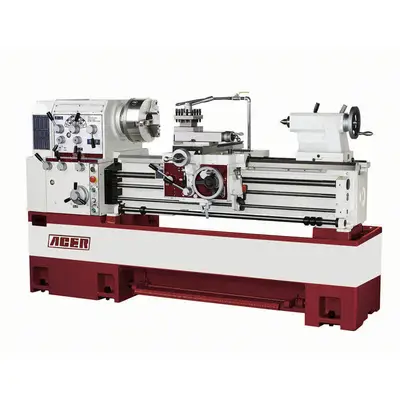

Introducing the new ACER Dynamic-2160S Precision Engine Lathe. With a 20.5" swing, 59" between centers, and a 3.1" spindle bore. 10 HP motor that will power the spindle to reach 2000RPM. 13" swing over crossslide. Perfect for precision tasks, upgrade with optional accessories.
MODEL 2160S
General Capacity:
• Swing over bed .......... 520 mm/20.5"
• Swing over gap .......... 740 mm/29.1"
• Swing over cross slide .......... 330 mm/13"
• Distance between centers .......... 1500 mm/59"
• Width of bed .......... 300 mm/11.8"
Headstock:
• Spindle nose .......... D1-8
• Spindle bore .......... 78 mm/3.1"
• Spindle speeds .......... 20~2000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 4~56 T.P.I.
• Metric threads range .......... P 0.5~P 7
• Longitudinal feeds range .......... 0.05~0.82 mm/0.002"~0.032"
• Cross feeds range .......... 0.02~0.40 mm/0.0008"~0.016"
• Leadscrew diameter .......... 35 mm/1.4"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Carriage:
• Taper of tail center .......... MT 4
• Compound rest travel .......... 125 mm/4.9"
• Cross slide travel .......... 275 mm/10.8"
Tailstock:
• Tail spindle travel .......... 150 mm/5.9"
• Tail spindle diameter .......... 68 mm/2.7"
Power:
• Main drive motor .......... 7.5HP (5.625KW)/10HP (7.5 KW, Opt.)
• Coolant pump .......... 1/8 HP (0.1KW)
Machine Dimensions:
• Machine Dimensions .......... 264 x 81 x 123 cm/104" x 32" x 48"
• Packing Dimensions .......... 279 x 95 x 162 cm/110" x 37" x 64"
• Net Weight .......... 2135 kgs/4707 lb
• Gross Weight .......... 2285 kgs/5038 lbs
***NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
Features:
• The 21" series is available in 22", 30", 40", 60", and 80" distance between centers
• 3.1" spindle bore with D1-8 spindle nose
• 10 hp spindle motor
• Spindle speed 20 - 2000 rpm (12 spindle speed)
• Auto. feed & threading are interlocked to prevent simultenious functions
• Thermal treated meehanite casting bed; bed hardness reaches HS70
• Heat treated and precision ground alloy gears
• Universal gearbox for both inch/metric thread & conversion chart
• Automatic longitudinal multiple feed stop
• Bed width 11.81"
STANDARD ACCESSORIES:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
OPTIONAL ACCESSORIES (ADDITIONAL):
• 3-jaw scroll chuck
• 12" 4-jaw independent chuck (D1-8) (SC strong)
• 3-jaw adaptor plate
• 4-jaw adaptor plate
• Follow rest: bronze tip (0.59" - 3.14")
• LED light
• 4-position carriage stop
• Micro carriage stop
• Live centers
• Taper turning attachment
• Splash guard
• Chuck guard with safety switch
• Change gears for DP and MP thread
• 5C collet closer
• Drive plate
• Quick change tool post
• Digital readout
• Chip guard
• Installation fee for taper turning attachment
• Installation fee for collet closer
• Installation fee for DRO
• Installation fee for rear splash guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
