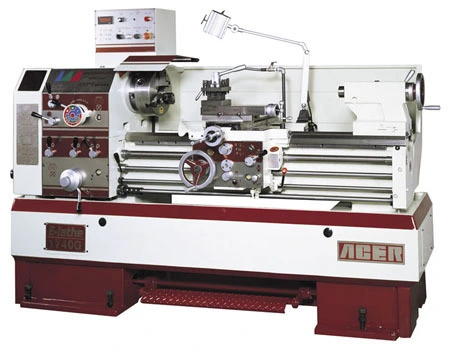

New Acer 1740G Precision E-Lathe ~In Stock Now~
Have one to sell?
ConditionNew
New
Features:
- Infinite 25-2200 (3 gear range) constant spindle speed. Easy change in no time (4 sec).
- High efficient 7.5 HP spindle motor for high torque output.
- Accept both single phase and three phase power.
- Low maintenance and down time cost due to fewer gears in headstock.
- Constant surface speed (optional).
- Electronic and mechanical brake for fast spin spindle stops internal threading.
- No R.P.M. gear changer break down, accurate reading on R.P.M. to prolong tool life.
- Save energy cost up to 35%.
- Spindle speed could be adjusted to best condition during cutting.
***MUST SPECIFY IF YOU NEED THE MACHINE WIRED FOR 220V OR 440V BASED ON WHAT YOUR SHOP IS WIRED FOR.
General Capacity:
• Center height.......... 8-3/4"
• Swing over bed.......... 17"
• Swing over gap (gap type only).......... 26"
• Swing over cross slide.......... 9-5/8"
• Distance between centers.......... 40"
Main Spindle:
• Spindle nose.......... D1-6
• Spindle bore diameter.......... 2-1/4"
• Type of spindle nose.......... MT. # 6
• Taper of center.......... MT. # 4
• Spindle speeds.......... 25~2200 rpm (infinite)
Carriage:
• Cross slide travel.......... 8-5/8"
• Compound rest travel.......... 7"
• Max. size cutting tool.......... 1" x 1"
Tailstock:
• Spindle diameter.......... 2-1/4"
• Spindle travel.......... 6"
• Taper of center.......... MT. # 4
Bed:
• Bed length.......... 73"
• Bed width.......... 12"
• Width of gap.......... 8-3/4"
Threading & Feeding:
• System.......... inch/Metric
• Pitch of leadscrew.......... 35 ø, 4 TPI
• Metric pitch threads.......... 0.5~7mm/pitch (22 kinds)
• Inch pitch threads.......... 4~56 TPI (36 kinds)
• Module pitch threads.......... 0.5~3.5 M.P. (12 kinds)
• Diametral pitch threads.......... 8~56 D.P. (21 kinds)
• Range of longitudinal feeds.......... 0.002"~0.028"/rev.
• Range of cross feeds.......... 0.001"~0.014"/rev.
Power:
• Main drive motor.......... 7.5 hp
• Coolant pump motor.......... 1/8 hp
Machine Dimensions:
• Floor dimension.......... 85" x 40"
• Net weight.......... 3500 lbs
• Gross weight.......... 3750 lbs
• Packing dimension.......... 88" x 41" x 67"
Features:
• Infinite 25-2200 (3 gear range) constant spindle speed. Easy change in no time (4 sec).
• High efficient 7.5 HP spindle motor for high torque output.
• Accept both single phase and three phase power.
• Low maintenance and down time cost due to fewer gears in headstock.
• Constant surface speed (optional).
• Electronic and mechanical brake for fast spin spindle stops internal threading.
• No R.P.M. gear changer break down, accurate reading on R.P.M. to prolong tool life.
• Save energy cost up to 35%.
• Spindle speed could be adjusted to best condition during cutting.
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attatchment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
Features:
- Infinite 25-2200 (3 gear range) constant spindle speed. Easy change in no time (4 sec).
- High efficient 7.5 HP spindle motor for high torque output.
- Accept both single phase and three phase power.
- Low maintenance and down time cost due to fewer gears in headstock.
- Constant surface speed (optional).
- Electronic and mechanical brake for fast spin spindle stops internal threading.
- No R.P.M. gear changer break down, accurate reading on R.P.M. to prolong tool life.
- Save energy cost up to 35%.
- Spindle speed could be adjusted to best condition during cutting.
T.R. Wigglesworth Machinery Co. has proudly represented the ACER group (Klim industrial) for more than Twenty years now, along with the factory in Taiwan.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone. Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
The Acer E‑Lathe series is engineered as a dependable, precision‑built manual engine lathe designed for shops that require consistent accuracy, rugged construction, and versatile machining performance. Built from high‑grade cast iron and designed with operator‑focused functionality, the E‑Lathe series delivers smooth operation, excellent rigidity, and long‑term durability. These machines are ideal for general‑purpose turning, maintenance applications, toolroom work, and production environments where reliability and precision are essential.
Key Features & Specifications
• Heavy‑Duty Construction: The headstock, bed, and major structural components are manufactured from high‑tensile cast iron to ensure maximum rigidity and vibration absorption. The bedways are hardened and precision‑ground to maintain long‑term accuracy and resist wear under continuous use. This robust foundation allows the E‑Lathe to perform consistently across a wide range of machining operations.
• Precision Spindle System: The spindle assembly is supported by premium precision bearings and powered by a high‑torque motor sized appropriately for each model. This combination provides smooth rotation, excellent runout control, and a broad speed range suitable for machining various materials. Spindle bore options accommodate different workpiece diameters, making the E‑Lathe adaptable to diverse shop requirements.
• Reliable Gearbox & Feed System: The E‑Lathe features a durable, easy‑to‑operate gearbox designed for smooth power transmission and dependable performance. A wide selection of feed rates and threading capabilities allows operators to handle inch, metric, and modular threading applications without unnecessary complexity. The gearing is engineered for longevity and consistent accuracy.
• Operator Safety & Convenience: Safety and ease of use are built into every aspect of the E‑Lathe. Interlocked controls prevent accidental engagement of incompatible functions, while the machine’s braking system provides fast, reliable spindle stops. Large, clearly marked dials, smooth handwheel action, and an ergonomic control layout ensure comfortable operation during extended machining sessions.
• Enhanced Durability & Low Maintenance: Critical sliding surfaces—such as the saddle—are treated or coated to reduce friction and extend service life. Internal lubrication systems deliver oil to key components, reducing maintenance requirements and ensuring consistent mechanical performance. These features contribute to the E‑Lathe’s reputation for long‑term reliability in demanding shop environments.
• Versatile Machining Capabilities: The Acer E‑Lathe is well‑suited for turning, facing, threading, tapering, boring, and general‑purpose machining on materials ranging from aluminum to alloy steels. Its balanced combination of power, precision, and rigidity makes it a dependable choice for both light finishing work and heavier roughing operations.
Imperial
| Swing | 17" |
| Centers | 40" |
| Spindle Bore | 2.25" |
| Power | 7.5 hp |
| RPM | 2,200 RPM |
| Swing Over Cross Slide | 9.625" |
| Dimensions | 85" x 40" |
| Weight | 3,500Lbs. |
***MUST SPECIFY IF YOU NEED THE MACHINE WIRED FOR 220V OR 440V BASED ON WHAT YOUR SHOP IS WIRED FOR.
General Capacity:
• Center height.......... 8-3/4"
• Swing over bed.......... 17"
• Swing over gap (gap type only).......... 26"
• Swing over cross slide.......... 9-5/8"
• Distance between centers.......... 40"
Main Spindle:
• Spindle nose.......... D1-6
• Spindle bore diameter.......... 2-1/4"
• Type of spindle nose.......... MT. # 6
• Taper of center.......... MT. # 4
• Spindle speeds.......... 25~2200 rpm (infinite)
Carriage:
• Cross slide travel.......... 8-5/8"
• Compound rest travel.......... 7"
• Max. size cutting tool.......... 1" x 1"
Tailstock:
• Spindle diameter.......... 2-1/4"
• Spindle travel.......... 6"
• Taper of center.......... MT. # 4
Bed:
• Bed length.......... 73"
• Bed width.......... 12"
• Width of gap.......... 8-3/4"
Threading & Feeding:
• System.......... inch/Metric
• Pitch of leadscrew.......... 35 ø, 4 TPI
• Metric pitch threads.......... 0.5~7mm/pitch (22 kinds)
• Inch pitch threads.......... 4~56 TPI (36 kinds)
• Module pitch threads.......... 0.5~3.5 M.P. (12 kinds)
• Diametral pitch threads.......... 8~56 D.P. (21 kinds)
• Range of longitudinal feeds.......... 0.002"~0.028"/rev.
• Range of cross feeds.......... 0.001"~0.014"/rev.
Power:
• Main drive motor.......... 7.5 hp
• Coolant pump motor.......... 1/8 hp
Machine Dimensions:
• Floor dimension.......... 85" x 40"
• Net weight.......... 3500 lbs
• Gross weight.......... 3750 lbs
• Packing dimension.......... 88" x 41" x 67"
Features:
• Infinite 25-2200 (3 gear range) constant spindle speed. Easy change in no time (4 sec).
• High efficient 7.5 HP spindle motor for high torque output.
• Accept both single phase and three phase power.
• Low maintenance and down time cost due to fewer gears in headstock.
• Constant surface speed (optional).
• Electronic and mechanical brake for fast spin spindle stops internal threading.
• No R.P.M. gear changer break down, accurate reading on R.P.M. to prolong tool life.
• Save energy cost up to 35%.
• Spindle speed could be adjusted to best condition during cutting.
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attatchment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
