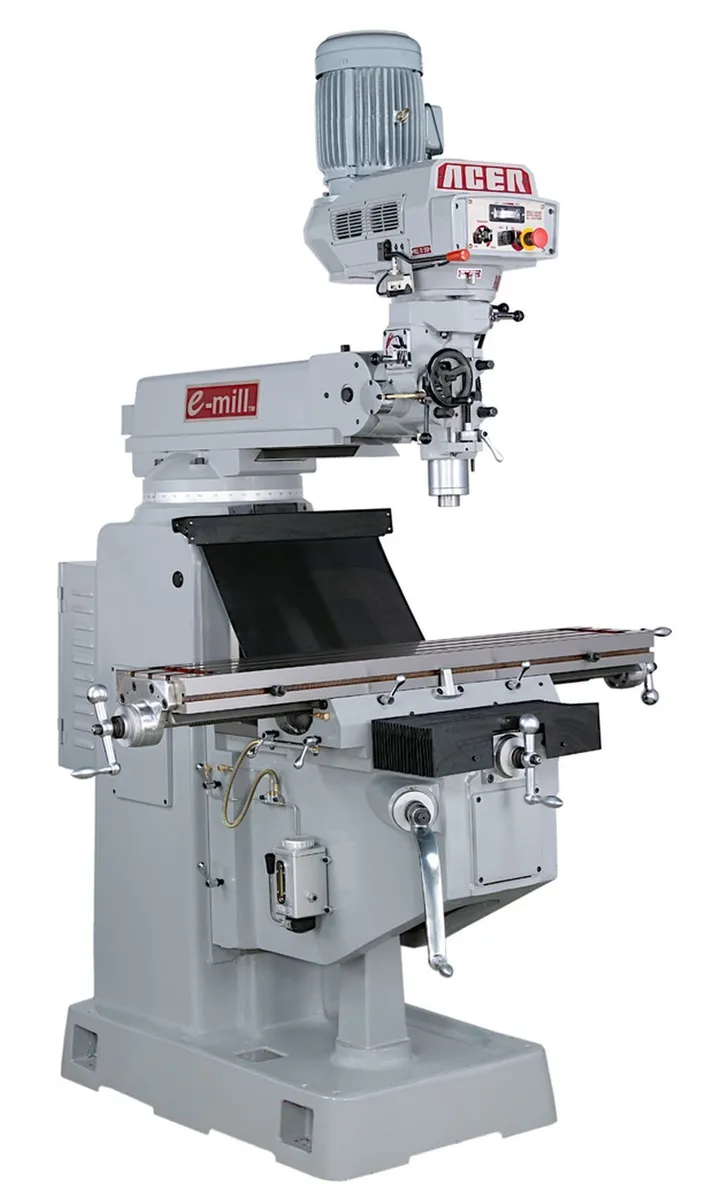

Meet the new ACER 3VKH E-MILL, a powerhouse vertical mill built for precision. Featuring a 50"x10" table, 3 HP motor, variable speed up to 4500 RPM, and durable design elements such as a hardened, ground table and precision-ground lead screws for top performance.
Specifications:
Table:
• Working surface..........50" x 10" (54" x 10" Optional)
• Longitudinal travel..........32.5" (36.5" Optional)
• Cross travel..........17"
• Vertical knee travel..........19"
• Ram travel..........20"
• T-slot number, size..........3, 5/8"
Head:
• Main motor..........3 HP
• Head moves right to left..........90°
• Head tilts front to back..........45°
Spindle:
• Spindle drive..........Variable
• Spindle speed..........60 ~ 4,500
• Spindle taper..........R-8
Quill:
• Power quill feeds (In / Rev.)..........0.0015", 0.003", 0.006"
• Quill diameter (Chromed).........3.375"
• Quill travel..........5"
• Weight approximated..........3,300 lbs (3,450Lbs. Optional)
Features:
• 3 HP inverter motor with fan cooling system dissipates heat efficiently.
• Grease fitting for lubricating the bull gear.
• One piece quill pinion & shaft.
• Precision hand scraped contact surfaces between turret and column.
• X, Y & knee axes hardened & ground to HRC 52.
• Top brand “FUJI” or equivalent A.C. frequency inverter drive.
• Hardened & ground table top to HRC 52.
• Licensed “MEEHANITE” casting.
• 3 HP variable speed from 60 to 4,500 RPM.
• Dish-in coolant base.
• Extra oiler lubricates the high-low moving device.
• Extra oiler to lubricate the quill.
• Precision ground ram ways within 0.0004″ accuracy.
• Precision ground finished lead screws.
• Precision ground table guide line to 0.0002″ over 20″.
• Standard accordian type way cover.
• Turcite-B coated saddle ways.
Optional accessories:
• "Newall" 2-axis DRO (16" x 36" travel, 0.0002" res. scale)
• Installation fee on 2-axis DRO
• Longitudinal/cross/knee power feed
• "Servo" longitudinal power feed (K-9108/380X)
• "Servo" cross power feed (K-9508/380X)
• "Servo" knee power feed (K-9811/380X)
• Installation fee: long. feed
• Installation fee: crossfeed
• Installation fee: knee feed
• 12" rotary table (vertical & horizontal)
• Coolant system (not installed)
• Installation fee for coolant system
• Chip pan (52" x 35" x 6"; 55 lbs)
• Clamping kits (52 pieces)
• R-8 collets (1/8" - 3/4"; 11 pcs/set)
• 6" angle lock milling vise
• Horizontal milling attachment
• Maxi-torque auto-air power draw bar (not installed)
• Installation fee for auto-air power draw bar
• N.S.T. #30 spindle taper (replace R-8 spindle)
• Installation fee for N.S.T. #30 spindle taper
• Riser block (4"/6"/8")
• Riser block installation fee
• Halogen or LED-L95 work light
• 10" x 54" table upgrade
• Upgrade frequency inverter (440V / 3-phase)
• Upgrade to UL conformity electric cabinet
• Installation fee for UL conformity electric cabinet
• Upgrade to "Newall" 3 axis DRO (3rd-axis on quill or knee)
• Installation fee on 3rd-axis DRO on quill or knee
