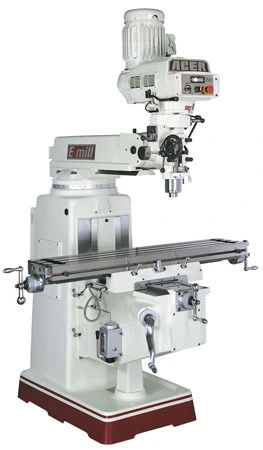

Introducing the new ACER E-MILL 3VS Vertical Mill, boasting a 42" x 9" working surface, variable spindle speeds from 60 to 4,500 RPM, and a powerful 3 HP motor. Compatible with R-8 and optional N.S.T #30 spindle tapers, it's perfect for precise machining tasks.
Specifications:
Table:
• Working surface..........42" x 9" (49" x 9" optional)
• Longitudinal travel..........28" (34" optional)
• Cross travel..........12"
• Vertical knee travel..........12"
• Ram travel..........12"
• T-slot number, size..........3, 5/8"
Head:
• Main motor..........3 HP
• Head moves right to left..........90°
• Head tilts front to back..........45°
Spindle:
• Spindle drive..........Variable
• Spindle speed..........60 ~ 4,500
• Spindle taper..........R-8
Quill:
• Power quill feeds (In / Rev.)..........0.0015", 0.003", 0.006"
• Quill diameter (Chromed)..........3-3/8"
• Quill travel..........5"
• Weight approximated..........2,380 lbs (Optional 2,430)
Optional accessories:
• "Newall" 2-axis DRO (12" x 30" travel, 0.0002" res. scale)
• "A class" feed power longitudinal/cross/knee
• "Servo" longitudinal feed (M-9121-140/M-9121-150)
• "Servo" cross feed (M-9521-140/M-9521-150)
• "Servo" knee feed (M-9811T-200)
• Installation fee: cross feed / knee feed
• 12" rotary table (vertical & horizontal)
• Coolant system (not installed)
• Installation fee for coolant system
• Chip pan (52" x 31" x 6"; 49 lbs)
• Clamping kits (52 pieces)
• R-8 collets (1/8" - 3/4"; 11 pcs/set)
• 6" angle lock milling vise
• Horizontal milling attachment
• Maxi-torque auto-air power draw bar (not installed)
• Installation fee for auto-air power draw bar
• N.S.T. #30 spindle taper (replace R-8 spindle)
• Riser block (4"/6"/8")
• Installation fee for riser block
• Upgrade frequency inverter (3 phase; 380V - 520V)
• Halogen work light
• Upgrade to UL conformity electric cabinet
• Upgrade to "Newall" 3 axis DRO (3rd-axis on quill or knee)
• Installation fee on 3rd axis DRO on quill or knee
• Upgrade to 440V / 3PH
