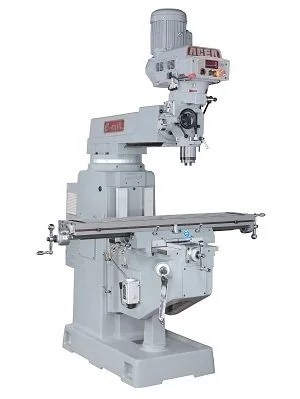

Explore precision with the new ACER E-MILL 5VK Vertical Mill. Featuring a 50"x10" table, 32.5" travel, and 5 HP motor. Variable speeds from 50-3,750 RPM, chromed 4" quill, durable MEEHANITE casting, and comprehensive accessory options. Perfect for advanced machining.
Specifications:
Table:
• Working surface..........50" x 10"
• Longitudinal travel..........32-1/2"
• Cross travel..........17"
• Vertical knee travel..........19"
• Ram travel..........20"
• T-slot number, size..........3, 5/8"
Head:
• Main motor..........5 HP
• Head moves right to left..........90°
• Head tilts front to back..........-
Spindle:
• Spindle drive..........Variable
• Spindle speed..........50 ~ 3,750
• Spindle taper..........N.S.T. #40
Quill:
• Power quill feeds (In / Rev.)..........0.0015", 0.003", 0.006"
• Quill diameter (Chromed)..........4"
• Quill travel..........5"
• Weight approximated..........3,500 lbs
Features:
• Fan cooling system dissipates heat efficiently.
• 5 HP spindle inverter motor
• Hand scraped contact surface between ram and head.
• MEEHANITE casting
• Top brand "FUJI" or equivalent A.C. frequency inverter drive.
• Turn-in the hand handle.
• Protective automotive paint ensures life-long appearance.
• Dish-in coolant base.
• 5 HP variable speed from 50 to 4,500 RPM.
• One piece quill pinion & shaft.
• 4" quill diameter and NST #40 spindle.
• Precision hand scraped contact surfaces between turret and column.
• Square ways of Y & Z axes are hardened & ground. - Table surface is HRC 52.
• All lead screws are ground finished.
• Chrome plated chip guards.
Standard Accessories:
• 5 HP spindle motor with frequency inverter drive
• Large digital spindle RPM display
• Spindle is designed not to turn on automatically when power is restored after power failure
• Precision grinding head housing
• Precision N.S.T. 40 spindle with ABEC-7 bearings
• Precision X, Y axes & knee are hardened & ground square ways to HRC 52 degrees
• Rigid Meehanite GA-50 casting
• 2-step electric brake & one shot lube pump
Optional Accessories:
• Newall DRO (16" x 36" travel, 0.0002" res. scale)
• Longitudinal/cross/knee/ power feed
• "Servo" longitudinal feed (M-9121-140/M-9121-150X)
• "Servo" cross feed (M-9521-140/M-9521-150)
• "Servo" knee feed (M-9811T-200)
• Installation fee: crossfeed
• Installation fee: knee feed
• 12" rotary table (vertical & horizontal)
• Coolant system (not installed)
• Installation fee for coolant system
• Chip pan (52" x 35" x 6" 55 lbs)
• Clamping kits (52 pieces)
• 6" angle lock milling vise
• Horizontal milling attachment
• Maxi-torque auto-air power draw bar (not installed)
• Installation fee for auto-air power draw bar
• Riser block (4"/6"/8")
• Riser block installation fee
• Upgrade frequency inverter (3-phase, 380V - 520V)
• 10" x 54" table upgrade
• Halogen work light
• Upgrade to UL conformity electrical cabinet
