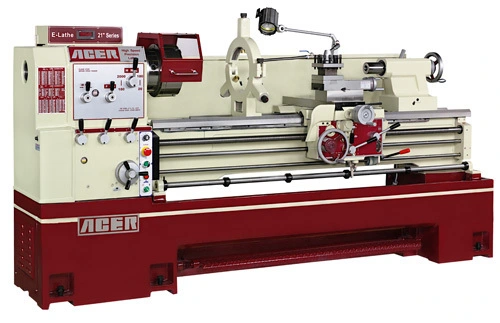

New Acer 2140V Precision E-Lathe
Have one to sell?
ConditionNew
New
Discover the new ACER E-LATHE 2140V Precision E-Lathe with a 20.5" swing, 39" between centers, and 3.1" spindle bore. Featuring 7.5 hp power, 2,200 RPM, auto-feed stopper, built-in coolant, and tool post. Elevate your machining precision today, upgrade with optional accessories.
***MUST SPECIFY IF YOU NEED THE MACHINE WIRED FOR 220V OR 440V BASED ON WHAT YOUR SHOP IS WIRED FOR.
General Capacity:
• Swing over bed.......... 530 mm / 20.9"
• Swing over gap.......... 750 mm / 29.5"
• Swing over cross slide.......... 325 mm / 12.8"
• Distance between centers.......... 1000 mm / 39.4"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1 - 8
• Spindle bore.......... 78 mm / 3.1"
• Spindle speeds.......... 20 ~ 2000 r.p.m. (infinite)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 4 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 7
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / 0.002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel.......... 125 mm / 4.9"
• Cross slide travel.......... 250 mm / 9.8"
Tailstock:
• Tail spindle travel.......... 150 mm / 5.9"
• Tail spindle diameter.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 hp (5.625 kw)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 216 x 81 x 131 cm / 85" x 32" x 52"
• Packing dimensions.......... 228 x 95 x 162 cm / 90" x 37" x 64"
• Net weight.......... 1810 kgs / 3990 lbs
• Gross weight.......... 1910 kgs / 4211 lbs
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
Discover the new ACER E-LATHE 2140V Precision E-Lathe with a 20.5" swing, 39" between centers, and 3.1" spindle bore. Featuring 7.5 hp power, 2,200 RPM, auto-feed stopper, built-in coolant, and tool post. Elevate your machining precision today, upgrade with optional accessories.
T.R. Wigglesworth Machinery Co. has proudly represented the ACER group (Klim industrial) for more than Twenty years now, along with the factory in Taiwan.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone. Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
The Acer E‑Lathe series is engineered as a dependable, precision‑built manual engine lathe designed for shops that require consistent accuracy, rugged construction, and versatile machining performance. Built from high‑grade cast iron and designed with operator‑focused functionality, the E‑Lathe series delivers smooth operation, excellent rigidity, and long‑term durability. These machines are ideal for general‑purpose turning, maintenance applications, toolroom work, and production environments where reliability and precision are essential.
Key Features & Specifications
• Heavy‑Duty Construction: The headstock, bed, and major structural components are manufactured from high‑tensile cast iron to ensure maximum rigidity and vibration absorption. The bedways are hardened and precision‑ground to maintain long‑term accuracy and resist wear under continuous use. This robust foundation allows the E‑Lathe to perform consistently across a wide range of machining operations.
• Precision Spindle System: The spindle assembly is supported by premium precision bearings and powered by a high‑torque motor sized appropriately for each model. This combination provides smooth rotation, excellent runout control, and a broad speed range suitable for machining various materials. Spindle bore options accommodate different workpiece diameters, making the E‑Lathe adaptable to diverse shop requirements.
• Reliable Gearbox & Feed System: The E‑Lathe features a durable, easy‑to‑operate gearbox designed for smooth power transmission and dependable performance. A wide selection of feed rates and threading capabilities allows operators to handle inch, metric, and modular threading applications without unnecessary complexity. The gearing is engineered for longevity and consistent accuracy.
• Operator Safety & Convenience: Safety and ease of use are built into every aspect of the E‑Lathe. Interlocked controls prevent accidental engagement of incompatible functions, while the machine’s braking system provides fast, reliable spindle stops. Large, clearly marked dials, smooth handwheel action, and an ergonomic control layout ensure comfortable operation during extended machining sessions.
• Enhanced Durability & Low Maintenance: Critical sliding surfaces—such as the saddle—are treated or coated to reduce friction and extend service life. Internal lubrication systems deliver oil to key components, reducing maintenance requirements and ensuring consistent mechanical performance. These features contribute to the E‑Lathe’s reputation for long‑term reliability in demanding shop environments.
• Versatile Machining Capabilities: The Acer E‑Lathe is well‑suited for turning, facing, threading, tapering, boring, and general‑purpose machining on materials ranging from aluminum to alloy steels. Its balanced combination of power, precision, and rigidity makes it a dependable choice for both light finishing work and heavier roughing operations.
Imperial
| Swing | 20.5" |
| Centers | 39" |
| Spindle Bore | 3.1" |
| Power | 7.5 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 13" |
| Dimensions | 85" x 32" x 52" |
| Weight | 3,990Lbs. |
***MUST SPECIFY IF YOU NEED THE MACHINE WIRED FOR 220V OR 440V BASED ON WHAT YOUR SHOP IS WIRED FOR.
General Capacity:
• Swing over bed.......... 530 mm / 20.9"
• Swing over gap.......... 750 mm / 29.5"
• Swing over cross slide.......... 325 mm / 12.8"
• Distance between centers.......... 1000 mm / 39.4"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1 - 8
• Spindle bore.......... 78 mm / 3.1"
• Spindle speeds.......... 20 ~ 2000 r.p.m. (infinite)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 4 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 7
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / 0.002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel.......... 125 mm / 4.9"
• Cross slide travel.......... 250 mm / 9.8"
Tailstock:
• Tail spindle travel.......... 150 mm / 5.9"
• Tail spindle diameter.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 hp (5.625 kw)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 216 x 81 x 131 cm / 85" x 32" x 52"
• Packing dimensions.......... 228 x 95 x 162 cm / 90" x 37" x 64"
• Net weight.......... 1810 kgs / 3990 lbs
• Gross weight.......... 1910 kgs / 4211 lbs
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
