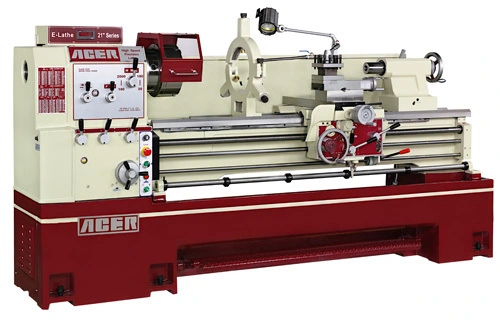

New Acer 2160V Precision E-Lathe
Have one to sell?
ConditionNew
New
Introducing the new Acer 2160V Precision E-Lathe. With a swing of 20.9", 59.1" between centers, and a 3.1" spindle bore. 7.5 hp power and 2000 RPM ensure optimal performance. Standard accessories and optional upgrades available to enhance productivity.
General Capacity:
• Swing over bed.......... 530 mm / 20.9"
• Swing over gap.......... 750 mm / 29.5"
• Swing over cross slide.......... 325 mm / 12.8"
• Distance between centers.......... 1500 mm / 59.1"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1 - 8
• Spindle bore.......... 78 mm / 3.1"
• Spindle speeds.......... 20 ~ 2000 r.p.m. (infinite)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 4 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 7
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / 0.002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel.......... 125 mm / 4.9"
• Cross slide travel.......... 250 mm / 9.8"
Tailstock:
• Tail spindle travel.......... 150 mm / 5.9"
• Tail spindle diameter.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 hp (5.625 kw)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 267 x 81 x 131 cm / 101" x 32" x 52"
• Packing dimensions.......... 279 x 95 x 162 cm / 110" x 32" x 64"
• Net weight.......... 2135 kgs / 4707 lbs
• Gross weight.......... 2285 kgs / 5038 lbs
Standard Accessories:
• 10” 3-Jaw Chuck D1-8
• Built-In Coolant System
• Steady Rest Bronze Tip 0.39” ~ 6.29” capacity
• Four Way Tool Post
• Halogen Work Light
• 4-Pos. Auto-Feed Stopper Ring
• Chuck Guard w/ Safety Switch
• Tool Box & Tools
• Chip Guard for Hand
• Center Sleeve
Optional Accessories:
• 16" 4-jaw independent chuck (D1-8)
• 12" 4-jaw independent chuck (D1-8)
• Follow rest
• 16" face plate
• 20" face plate
• "Aloris" tool post & 4 holders (#4-BS)
• "Aloris" tool post & 6 holders (#4-SET)
• "Dorian" tool post & 4 holders (SD40 CA-TS)
• Micrometer stop
• Four position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• 5c collet closer (lever-type)
• Installation fee for collet closer
• 5c collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set)
• "Magnescale" 2-axis DRO (14" x 60")
• "Newall" 2-axis DRO (14" x 60")
• "Newall" E70 2-axis DRO w/ CSS
• Installation fee on Newall DP700 or Magnescale DRO
• Full length rear splash guard for 2160V
• Installation fee & hardware on rear splash guard
• Chuck guard w/ safety switch
• Installation fee for chuck guard
• Upgrade to 440v / 3 phase
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
Introducing the new Acer 2160V Precision E-Lathe. With a swing of 20.9", 59.1" between centers, and a 3.1" spindle bore. 7.5 hp power and 2000 RPM ensure optimal performance. Standard accessories and optional upgrades available to enhance productivity.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.
Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
Imperial
| Swing | 20.9" |
| Centers | 59.1" |
| Spindle Bore | 3.1" |
| Power | 7.5 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 12.8" |
| Dimensions | 101" x 32" x 64" |
| Weight | 4,707Lbs. |
General Capacity:
• Swing over bed.......... 530 mm / 20.9"
• Swing over gap.......... 750 mm / 29.5"
• Swing over cross slide.......... 325 mm / 12.8"
• Distance between centers.......... 1500 mm / 59.1"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1 - 8
• Spindle bore.......... 78 mm / 3.1"
• Spindle speeds.......... 20 ~ 2000 r.p.m. (infinite)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 4 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 7
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / 0.002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel.......... 125 mm / 4.9"
• Cross slide travel.......... 250 mm / 9.8"
Tailstock:
• Tail spindle travel.......... 150 mm / 5.9"
• Tail spindle diameter.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 hp (5.625 kw)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 267 x 81 x 131 cm / 101" x 32" x 52"
• Packing dimensions.......... 279 x 95 x 162 cm / 110" x 32" x 64"
• Net weight.......... 2135 kgs / 4707 lbs
• Gross weight.......... 2285 kgs / 5038 lbs
Standard Accessories:
• 10” 3-Jaw Chuck D1-8
• Built-In Coolant System
• Steady Rest Bronze Tip 0.39” ~ 6.29” capacity
• Four Way Tool Post
• Halogen Work Light
• 4-Pos. Auto-Feed Stopper Ring
• Chuck Guard w/ Safety Switch
• Tool Box & Tools
• Chip Guard for Hand
• Center Sleeve
Optional Accessories:
• 16" 4-jaw independent chuck (D1-8)
• 12" 4-jaw independent chuck (D1-8)
• Follow rest
• 16" face plate
• 20" face plate
• "Aloris" tool post & 4 holders (#4-BS)
• "Aloris" tool post & 6 holders (#4-SET)
• "Dorian" tool post & 4 holders (SD40 CA-TS)
• Micrometer stop
• Four position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• 5c collet closer (lever-type)
• Installation fee for collet closer
• 5c collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set)
• "Magnescale" 2-axis DRO (14" x 60")
• "Newall" 2-axis DRO (14" x 60")
• "Newall" E70 2-axis DRO w/ CSS
• Installation fee on Newall DP700 or Magnescale DRO
• Full length rear splash guard for 2160V
• Installation fee & hardware on rear splash guard
• Chuck guard w/ safety switch
• Installation fee for chuck guard
• Upgrade to 440v / 3 phase
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
