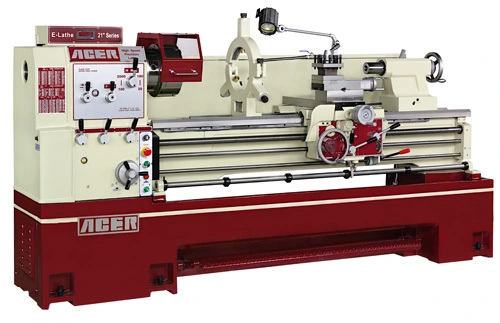

New Acer 2180V Precision E-Lathe

General Capacity:
• Swing over bed.......... 530 mm / 20.9"
• Swing over gap.......... 750 mm / 29.5"
• Swing over cross slide.......... 325 mm / 12.8"
• Distance between centers.......... 2000 mm / 78.7"
• Width of bed.......... 300 mm / 11.8"
Headstock:
• Spindle nose.......... D1 - 8
• Spindle bore.......... 78 mm / 3.1"
• Spindle speeds.......... 20 ~ 2000 r.p.m. (infinite)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 4 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 7
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / 0.002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter.......... 35 mm / 1.4"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 4
Carriage:
• Compound rest travel.......... 125 mm / 4.9"
• Cross slide travel.......... 250 mm / 9.8"
Tailstock:
• Tail spindle travel.......... 150 mm / 5.9"
• Tail spindle diameter.......... 68 mm / 2.7"
Power:
• Main drive motor.......... 7.5 hp (5.625 kw)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 320 x 81 x 131 cm / 126" x 32" x 52"
• Packing dimensions.......... 337 x 95 x 162 cm / 133" x 37" x 64"
• Net weight.......... 2440 kg / 5379 lbs
• Gross weight.......... 2590 kg / 5710 lbs

Standard Accessories:
• 10” 3-Jaw Chuck D1-8
• Built-In Coolant System
• Steady Rest Bronze Tip 0.39” ~ 6.29” capacity
• Four Way Tool Post
• Halogen Work Light
• 4-Pos. Auto-Feed Stopper Ring
• Chuck Guard w/ Safety Switch
• Tool Box & Tools
• Chip Guard for Hand
• Center Sleeve

Optional Accessories:
• $P.O.R...... 16" 4-jaw independent chuck (D1-8).
• $1,485.00..... 12" 4-jaw independent chuck (D1-8).
• $580.00..... Follow rest.
• $935.00..... 16" face plate.
• $P.O.R...... 20" face plate.
• $1,625.00..... "Aloris" tool post & 4 holders (#4-BS).
• $2,060.00..... "Aloris" tool post & 6 holders (#4-SET).
• $P.O.R...... "Dorian" tool post & 4 holders (SD40 CA-TS).
• $495.00..... Micrometer stop.
• $495.00..... Four position carriage stop.
• $2,860.00..... Taper turning attachment.
• $365.00..... Installation fee for taper turning attachment.
• $2,270.00..... 5c collet closer (lever-type).
• $125.00..... Installation fee for collet closer.
• $850.00..... 5c collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set).
• $P.O.R...... "Magnescale" 2-axis DRO (14" x 40"/60"/80").
• $4,260.00..... "Newall" 2-axis DRO (14" x 80).
• $P.O.R...... "Newall" E70 2-axis DRO w/ CSS.
• $440.00..... Installation fee on Newall DP700 or Magnescale DRO.
• $680.00..... Full length rear splash guard for 2180V.
• $100.00..... Installation fee & hardware on rear splash guard.
• $450.00..... Chuck guard w/ safety switch.
• $100.00..... Installation fee for chuck guard.
• $1,030.00..... Upgrade to 440v / 3 phase.

*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
