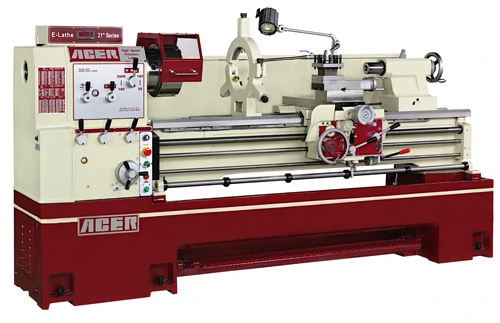

New Acer 2240V Precision E-Lathe

General Capacity:
• Swing over bed.......... 560 mm / 22"
• Swing over gap.......... 788 mm / 31"
• Swing over cross slide.......... 340 mm / 13.4"
• Distance between centers.......... 1000 mm / 39.4"
• Width of bed.......... 400 mm / 15.7"
Headstock:
• Spindle nose.......... D1 - 8 / D1 - 11 (opt.)
• Spindle bore.......... 85 mm / 115 mm (opt.) / 3.3" / 4.5" (opt.)
• Spindle speeds.......... 15 ~ 1500 r.p.m. (12 steps) / 10 ~ 1000 r.p.m. (12 steps, opt.)
• Taper of spindle bore.......... MT7
Threading:
• Inch threads range.......... 2 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 14
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / .002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter.......... 38 mm / 1.5"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 5
Carriage:
• Compound rest travel.......... 200 mm / 7.9"
• Cross slide travel.......... 375 mm / 14.8"
Tailstock:
• Tail spindle travel.......... 165 mm / 6.5"
• Tail spindle diameter.......... 85 mm / 3.3"
Power:
• Main drive motor.......... 10hp (7.5 kw 6p)
• Coolant pump.......... 1/8 hp (0.1 kw)
Machine Dimensions:
• Machine dimensions.......... 238 x 103 x 126 cm / 94" x 41" x 50"
• Packing dimensions.......... 250 x 115 x 194 cm / 98" x 45" x 73"
• Net weight.......... 2200 kgs / 4850 lbs
• Gross weight.......... 2300 kgs / 5071 lbs

Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-Up Paint Tool box W/Tools
• Operational Manual
• Four Way Tool Post
• Halogen Light

Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard

*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
