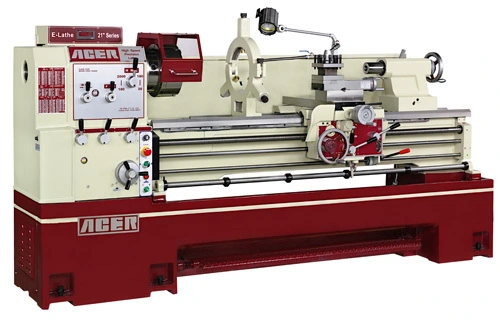

New Acer 2280V Precision E-Lathe
Have one to sell?
ConditionNew
New
Introducing the new Acer 2280V Precision E-Lathe, featuring a 22" swing, 78.7" between centers, and 3.3" spindle bore. Boasting a 10 hp motor with 1500 RPM, this lathe comes with standard accessories like a gap bed and built-in coolant system. Optional upgrades available.
General Capacity:
• Swing over bed.......... 560 mm / 22"
• Swing over gap.......... 788 mm / 31"
• Swing over cross slide.......... 340 mm / 13.4"
• Distance between centers.......... 2000 mm / 78.7"
• Width of bed.......... 400 mm / 15.7"
Headstock:
• Spindle nose.......... D1 - 8 / D1 - 11 (opt.)
• Spindle bore.......... 85 mm / 115 mm (opt.) / 3.3" / 4.5" (opt.)
• Spindle speeds.......... 15 ~ 1500 r.p.m. (12 steps) / 10 ~ 1000 r.p.m. (12 steps, opt.)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 2 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 14
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / .002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008 ~ 0.016"
• Leadscrew diameter.......... 38 mm / 1.5"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 5
Carriage:
• Compound rest travel.......... 200 mm / 7.9"
• Cross slide travel.......... 375 mm / 14.8"
Tailstock:
• Tail spindle travel.......... 165 mm / 6.5"
• Tail spindle diameter.......... 85 mm / 3.3"
Power:
• Main drive motor.......... 10hp (7.5 kw 6p)
• Coolant pump.......... 1/8 hp (0.1 kw)
Machine Dimensions:
• Machine dimensions.......... 347 x 103 x 126 cm / 137" x 41" x 50"
• Packing dimensions.......... 356 x 115 x 194 cm / 140" x 45" x 73"
• Net weight.......... 2900 kgs / 6393 lbs
• Gross weight.......... 3050 kg / 6724 lbs
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-Up Paint Tool box W/Tools
• Operational Manual
• Four Way Tool Post
• Halogen Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
Introducing the new Acer 2280V Precision E-Lathe, featuring a 22" swing, 78.7" between centers, and 3.3" spindle bore. Boasting a 10 hp motor with 1500 RPM, this lathe comes with standard accessories like a gap bed and built-in coolant system. Optional upgrades available.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.
Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
Imperial
| Swing | 22" |
| Centers | 78.7" |
| Spindle Bore | 3.3" |
| Power | 10 hp |
| RPM | 1,500 RPM |
| Swing Over Cross Slide | 13.4" |
| Dimensions | 137" x 41" x 50" |
| Weight | 6,393Lbs. |
General Capacity:
• Swing over bed.......... 560 mm / 22"
• Swing over gap.......... 788 mm / 31"
• Swing over cross slide.......... 340 mm / 13.4"
• Distance between centers.......... 2000 mm / 78.7"
• Width of bed.......... 400 mm / 15.7"
Headstock:
• Spindle nose.......... D1 - 8 / D1 - 11 (opt.)
• Spindle bore.......... 85 mm / 115 mm (opt.) / 3.3" / 4.5" (opt.)
• Spindle speeds.......... 15 ~ 1500 r.p.m. (12 steps) / 10 ~ 1000 r.p.m. (12 steps, opt.)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 2 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 14
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / .002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008 ~ 0.016"
• Leadscrew diameter.......... 38 mm / 1.5"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm / 0.24"
• Taper of tail center.......... MT 5
Carriage:
• Compound rest travel.......... 200 mm / 7.9"
• Cross slide travel.......... 375 mm / 14.8"
Tailstock:
• Tail spindle travel.......... 165 mm / 6.5"
• Tail spindle diameter.......... 85 mm / 3.3"
Power:
• Main drive motor.......... 10hp (7.5 kw 6p)
• Coolant pump.......... 1/8 hp (0.1 kw)
Machine Dimensions:
• Machine dimensions.......... 347 x 103 x 126 cm / 137" x 41" x 50"
• Packing dimensions.......... 356 x 115 x 194 cm / 140" x 45" x 73"
• Net weight.......... 2900 kgs / 6393 lbs
• Gross weight.......... 3050 kg / 6724 lbs
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-Up Paint Tool box W/Tools
• Operational Manual
• Four Way Tool Post
• Halogen Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
