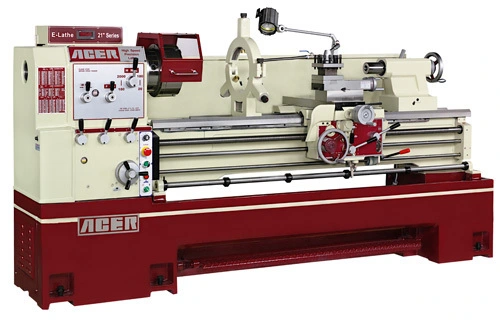

New Acer 22100V Precision E-Lathe
Have one to sell?
ConditionNew
New
ACER E-LATHE 22100V, a new engine lathe with 22" swing, 98.4" centers, and a 3.3" spindle bore. Powered by 10 hp, it reaches 1,500 RPM. Ideal for precision tasks with 13.4" swing over cross slide. Perfect for advanced machining needs.
General Capacity:
• Swing over bed.......... 560 mm / 22"
• Swing over gap.......... 788 mm / 31"
• Swing over cross slide.......... 340 mm / 13.4"
• Distance between centers.......... 2500 mm / 98.4"
• Width of bed.......... 400 mm / 15.7"
Headstock:
• Spindle nose.......... D1 - 8 / D1 - 11 (opt.)
• Spindle bore.......... 85 mm / 115 mm (opt.) / 3.3" / 4.5" (opt.)
• Spindle speeds.......... 15 ~ 1500 r.p.m. (12 steps) / 10 ~ 1000 r.p.m. (12 steps, opt.)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 2 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 14
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / .002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008 ~ 0.016"
• Leadscrew diameter.......... 38 mm / 1.5"
• Leadscrew pitch.......... 4 t.p.i. or 6 mm / 0.24"
• Taper of tail center.......... MT 5
Carriage:
• Compound rest travel.......... 200 mm / 7.9"
• Cross slide travel.......... 375 mm / 14.8"
Tailstock:
• Tail spindle travel.......... 165 mm / 6.5"
• Tail spindle diameter.......... 85 mm / 3.3"
Power:
• Main drive motor.......... 10hp (7.5 kw 6P)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 398 x 103 x 126 cm / 157" x 41" x 50"
• Packing dimensions.......... 426 x 115 x 194 cm / 168" x 45" x 73"
• Net weight.......... 3150 kgs / 6943 lbs
• Gross weight.......... 3300 kg / 7275 lbs
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-Up Paint Tool box W/Tools
• Operational Manual
• Four Way Tool Post
• Halogen Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
ACER E-LATHE 22100V, a new engine lathe with 22" swing, 98.4" centers, and a 3.3" spindle bore. Powered by 10 hp, it reaches 1,500 RPM. Ideal for precision tasks with 13.4" swing over cross slide. Perfect for advanced machining needs.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.
Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
Imperial
| Swing | 22" |
| Centers | 98.4" |
| Spindle Bore | 3.3" |
| Power | 10 hp |
| RPM | 1,500 RPM |
| Swing Over Cross Slide | 13.4" |
| Dimensions | 157" x 41" x 73" |
| Weight | 6,943Lbs. |
General Capacity:
• Swing over bed.......... 560 mm / 22"
• Swing over gap.......... 788 mm / 31"
• Swing over cross slide.......... 340 mm / 13.4"
• Distance between centers.......... 2500 mm / 98.4"
• Width of bed.......... 400 mm / 15.7"
Headstock:
• Spindle nose.......... D1 - 8 / D1 - 11 (opt.)
• Spindle bore.......... 85 mm / 115 mm (opt.) / 3.3" / 4.5" (opt.)
• Spindle speeds.......... 15 ~ 1500 r.p.m. (12 steps) / 10 ~ 1000 r.p.m. (12 steps, opt.)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 2 ~ 56 T.P.I.
• Metric threads range.......... P 0.5 ~ P 14
• Longitudinal feeds range.......... 0.05 ~ 0.82 mm / .002" ~ 0.032"
• Cross feeds range.......... 0.02 ~ 0.40 mm / 0.0008 ~ 0.016"
• Leadscrew diameter.......... 38 mm / 1.5"
• Leadscrew pitch.......... 4 t.p.i. or 6 mm / 0.24"
• Taper of tail center.......... MT 5
Carriage:
• Compound rest travel.......... 200 mm / 7.9"
• Cross slide travel.......... 375 mm / 14.8"
Tailstock:
• Tail spindle travel.......... 165 mm / 6.5"
• Tail spindle diameter.......... 85 mm / 3.3"
Power:
• Main drive motor.......... 10hp (7.5 kw 6P)
• Coolant pump.......... 1/8 hp (0.1 kw)
Dimensions and Weight:
• Machine dimensions.......... 398 x 103 x 126 cm / 157" x 41" x 50"
• Packing dimensions.......... 426 x 115 x 194 cm / 168" x 45" x 73"
• Net weight.......... 3150 kgs / 6943 lbs
• Gross weight.......... 3300 kg / 7275 lbs
Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-Up Paint Tool box W/Tools
• Operational Manual
• Four Way Tool Post
• Halogen Light
Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard
*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
