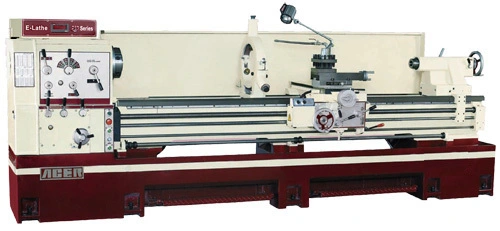

New Acer 3060V Precision E-Lathe

General Capacity:
• Swing over bed..........760 mm / 29.9"
• Swing over gap..........990 mm / 39"
• Swing over cross slide..........540 mm / 21.3"
• Distance between centers..........1500 mm / 59.1"
• Width of bed..........400 mm / 15.7"
Headstock:
• Spindle nose..........D1 - 11
• Spindle bore..........115 mm / 4.53"
• Spindle speeds..........20 ~ 2000 R.P.M. (Infinite)
• Taper of spindle bore..........MT 7
Threading:
• Inch threads range..........2 ~ 56 T.P.I.
• Metric threads range..........P 0.5 ~ P 14
• Longitudinal feeds range..........0.06 ~ 0.82 mm / 0.002 ~ 0.032"
• Cross feeds range..........0.02 ~ 0.40 mm / 0.0008" ~ 0.016"
• Leadscrew diameter..........38 mm / 1.5"
• Leadscrew pitch..........4 T.P.I. or 6 mm / 0.24"
Carriage:
• Taper of tail center..........MT 5
• Compound rest travel..........200 mm / 7.9"
• Cross slide travel..........375 mm / 14.8"
Tailstock:
• Tail spindle travel..........165 mm / 6.5"
• Tail spindle diameter..........85 mm / 3.3"
Power:
• Main drive motor..........15HP (11 KW, 6P)
• Coolant pump..........1/8 HP (0.1 KW)
Dimensions & Weight:
• Machine Dimensions..........290 x 103 x 136 cm / 114" x 41" x 54"
• Packing Dimensions..........300 x 115 x 194 cm / 118" x 75" x 76"
• Net Weight..........2710 kgs / 5975 lbs
• Gross Weight..........2810 kgs / 6195 lbs

Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-Up Paint Tool box W/Tools
• Operational Manual
• Four Way Tool Post
• Halogen Light

Optional Accessories:
• 3-Jaw Scroll Chuck
• 4-Jaw Independent Chuck
• 3-Jaw Adaptor Plate
• 4-Jaw Adaptor Plate
• Steady Rest
• Follow Rest
• LED Light
• 4-Position Carriage Stop
• Micro Carriage Stop
• Live Centers
• Taper Turning Attachment
• Splash Guard
• Chuck Guard W/Safety Switch
• Change Gears for DP & MP Thread
• 5C Collet Closer
• Drive Plate
• Quick Change Tool Post
• Digital Readout
• Chip Guard

*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
