Discover precision with the new ACER Dynamic-3360G Precision Engine Lathe. Featuring a 33.1" swing, 59.1" between centers, 4.1" spindle bore, and 15 HP power. Enhance productivity with its robust design and standard accessories. Ideal for machining excellence.

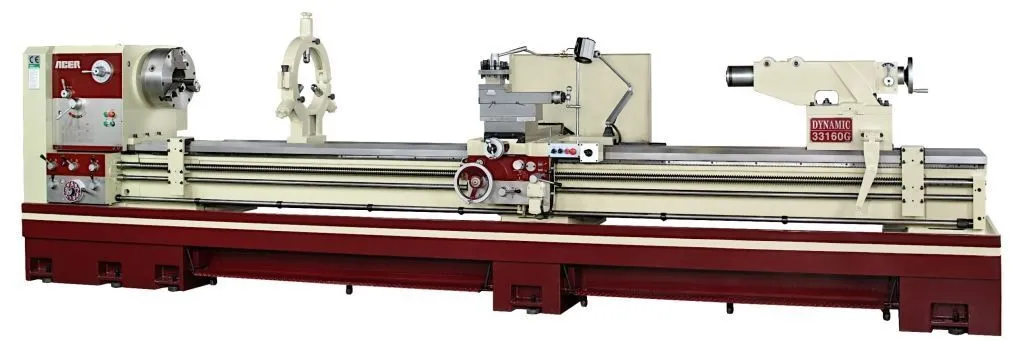

ACER Dynamic Lathe 3360G
General Capacity:
• Swing over bed .......... 840 mm/33.1"
• Swing over gap .......... 1020 mm/40.1" (opt.)
• Swing over cross slide .......... 570 mm/22.4"
• Distance between centers .......... 1500mm/59.1"
• Width of bed .......... 450 mm/17.7"
Headstock:(4 Options)(A2-11 is standard)
• Spindle nose ..... A2-11 ..... A2-11 ..... A2-15 ..... A2-20
• Spindle bore ..... 105 mm/4.1" ..... 153 mm/6" (opt.) ..... 230 mm/9.1" (opt.) ..... 305 mm/12" (opt.)
• Spindle speeds ..... 20 - 92 R.P.M. ..... 10 - 52 R.P.M. ..... 3 - 30 R.P.M. ..... 5 - 25 R.P.M.
• Spindle speeds ..... 33 - 93 R.P.M. ..... 53 - 52 R.P.M. ..... 31 - 107 R.P.M. ..... 26 - 86 R.P.M.
• Spindle speeds ..... 331 - 1500 R.P.M. ..... 176 - 800 R.P.M. ..... 108 - 450 R.P.M. ..... 87 - 350 R.P.M.
• Taper of spindle bore .......... MT 5
Threading:
• Inch threads range .......... 2 - 28 T.P.I. (36 kinds)
• Metric threads range .......... 0.08 - 14mm/pitch (65 kinds)
• Module pitch threads .......... 0.5 - 7 M (22 kinds)
• DP threads .......... 4-56 T.P.I. (36 kinds)
• Leadscrew pitch .......... 2 T.P.I. or 12 mm/0.47"
Carriage:
• Compound rest travel .......... 250 mm/9.8"
• Cross slide travel .......... 450 mm/17.7"
Tailstock:
• Tail spindle travel .......... 220 mm/8.7"
• Tail spindle diameter .......... 105 mm/4.1"
Power:
• Main drive motor .......... 15HP/20HP (opt.)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 315 x 170 x 180 cm /124" x 67" x 71"
• Net Weight .......... 3450 kgs / 7606 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
Standard Accessories:
• Center sleeve
• Built-in coolant system
• MT #6 dead center (2 pcs.)
• Halogen work light
• Toolbox with tools
• Followable splash guard
• 24 V control circuit
• Operation manual
Optional Accessories:
• Upgrade to 6" bore hole & 20 hp spindle motor
• 12" 3-jaw chuck (A2-11) w/ 4.13" thru hole
• 18" 4-jaw chuck for A2-11 spindle nose
• 28" 4-jaw independent chuck for A2-11 spindle nose
• Steady rest with rollers (1.96" - 11.8")
• Steady rest with rollers (11" - 15.74")
• Taper attachment
• Followable rear splash guard
• Gap type bed
