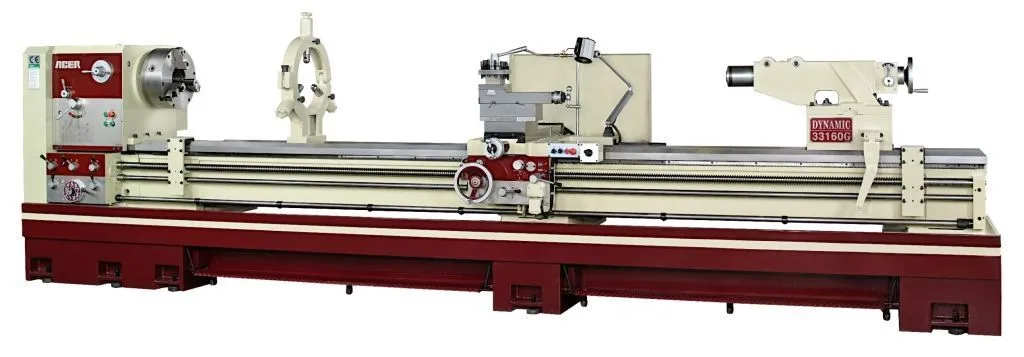

New ACER Dynamic-33200G Precision Engine Lathe

New ACER Dynamic-33200G Precision Engine Lathe

Have one to sell?
440-359-2655
Leads@wigglesworth.com
ConditionNew
Have one to sell?

Overview

Type:
Engine Lathes
Manufacturer:
ACER
Model:
DYNAMIC 33200G
Condition:
Build To Order
Stock #:
13461
Status:
For Sale

Description

New ACER Dynamic 33200G Engine Lathe features 33" swing, 200" between centers, and a 4.1" spindle bore. Powered by 15 hp, reaching 1500 RPM. Swing over cross slide at 22.4". Enhance your machining capabilities with this precision-engineered tool.

Swing33.1"840.74 mm
Centers200"5,080 mm
Spindle Bore4.1"104.14 mm
Power15 hp11.2 kW
RPM1,500 RPM1,500 RPM
Swing Over Cross Slide22.4"568.96 mm
Dimensions281" x 67" x 71"281" x 67" x 71"
Weight11,464Lbs.11,464Lbs.

ACER Dynamic Lathe 33200G
General Capacity:
• Swing over bed .......... 840 mm/33.1"
• Swing over gap .......... 1020 mm/40.1" (opt.)
• Swing over cross slide .......... 570 mm/22.4"
• Distance between centers .......... 200"
• Width of bed .......... 450 mm/17.7"
Headstock:
• Spindle nose ..... A2-11 ..... A2-11 ..... A2-15 ..... A2-20
• Spindle bore ..... 105 mm/4.1" ..... 153 mm/6" (opt.) ..... 230 mm/9.1" (opt.) ..... 305 mm/12" (opt.)
• Spindle speeds ..... 20 - 92 R.P.M. ..... 10 - 52 R.P.M. ..... 3 - 30 R.P.M. ..... 5 - 25 R.P.M.
• Spindle speeds ..... 33 - 93 R.P.M. ..... 53 - 52 R.P.M. ..... 31 - 107 R.P.M. ..... 26 - 86 R.P.M.
• Spindle speeds ..... 331 - 1500 R.P.M. ..... 176 - 800 R.P.M. ..... 108 - 450 R.P.M. ..... 87 - 350 R.P.M.
• Taper of spindle bore .......... MT 5
Threading:
• Inch threads range .......... 2 - 28 T.P.I. (36 kinds)
• Metric threads range .......... 0.08 - 14mm/pitch (65 kinds)
• Module pitch threads .......... 0.5 - 7 M (22 kinds)
• DP threads .......... 4-56 T.P.I. (36 kinds)
• Leadscrew pitch .......... 2 T.P.I. or 12 mm/0.47"
Carriage:
• Compound rest travel .......... 250 mm/9.8"
• Cross slide travel .......... 450 mm/17.7"
Tailstock:
• Tail spindle travel .......... 220 mm/8.7"
• Tail spindle diameter .......... 105 mm/4.1"
Power:
• Main drive motor .......... 15HP/20HP (opt.)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 715 x 170 x 180 cm /281" x 67" x 71"
• Net Weight .......... 5200kgs /11464 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only

Standard Equipment:
• Center sleeve
• Built-in coolant system
• MT #6 dead center (2 pcs.)
• Halogen work light
• Toolbox with tools
• Followable splash guard
• 24 V control circuit
• Operation manual

Optional Accessories:
• Upgrade to 6" bore hole & 20 hp spindle motor
• 12" 3-jaw chuck (A2-11) w/ 4.13" thru hole
• 18" 4-jaw chuck for A2-11 spindle nose
• 28" 4-jaw independent chuck for A2-11 spindle nose
• Steady rest with rollers (1.96" - 11.8")
• Steady rest with rollers (11" - 15.74")
• Taper attachment
• Followable rear splash guard
• Gap type bed

Overview

Type:
Engine Lathes
Manufacturer:
ACER
Model:
DYNAMIC 33200G
Condition:
Build To Order
Stock #:
13461
Status:
For Sale

Description

New ACER Dynamic 33200G Engine Lathe features 33" swing, 200" between centers, and a 4.1" spindle bore. Powered by 15 hp, reaching 1500 RPM. Swing over cross slide at 22.4". Enhance your machining capabilities with this precision-engineered tool.

Long Description

T.R. Wigglesworth Machinery Co. has proudly represented the ACER group (Klim industrial) for more than Twenty years now, along with the factory in Taiwan.

Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.

Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.

The Acer Dynamic Lathe series are high-speed, precision-geared head engine lathes renowned for their robust construction, exceptional durability, and precision engineering capabilities. Built with high-tensile cast iron, these machines are designed to withstand demanding industrial environments and are a reliable choice for a wide range of machining operations, from intricate parts for aerospace to heavy-duty automotive components.

Key Features & Specifications:

  • Robust Construction: The headstock and bed are crafted from high-tensile FC25 or thermal-treated Meehanite cast iron, which undergoes an annealing process to prevent deformation and ensure lasting rigidity and durability. The bedways are hardened and ground to Rockwell C 55, further enhancing wear resistance.
  • High-Performance Spindle: Featuring powerful motors (ranging from 3 HP to 15 HP depending on the model) and precision taper roller bearings, the spindle system offers a wide range of speeds for versatile material processing. Spindle bores are available in various sizes (e.g., 2-1/4", 3.1", 4.53") to accommodate diverse workpiece diameters.
  • Precision Gearing: The headstock features hardened and ground alloy gears, and a uniquely designed universal gearbox allows for a comprehensive range of inch and metric threading without the need for changing gears.
  • Operator Safety & Convenience: Safety features are integrated throughout the design, including interlocked auto. feed and threading functions to prevent simultaneous engagement, a safety overload clutch, and a mechanical drum-type brake for fast, reliable spindle stops.
  • Enhanced Durability: Key sliding surfaces, such as the saddle, are coated with Turcite-B for superior wear resistance. An electro-trochoid pump force-feeds lubrication oil to all internal headstock components, minimizing maintenance needs.
  • Versatile Functionality: These lathes are suitable for shaping, drilling, sanding, knurling, and cutting operations on various materials, including steel and aluminum.
  • Optional Accessories: The machine can be upgraded with a variety of options, including 2-axis Digital Read Outs (DRO) systems (Magnescale or Newall), taper turning attachments, follow rests, and a range of chuck options to meet specific production requirements.

Ideal For:

The Acer Dynamic series is ideal for job shops, manufacturing facilities, and educational institutions seeking a reliable, high-precision manual lathe capable of handling both general-purpose and intricate turning operations with consistency and power.

Specifications

Imperial

Swing33.1"
Centers200"
Spindle Bore4.1"
Power15 hp
RPM1,500 RPM
Swing Over Cross Slide22.4"
Dimensions281" x 67" x 71"
Weight11,464Lbs.

ACER Dynamic Lathe 33200G
General Capacity:
• Swing over bed .......... 840 mm/33.1"
• Swing over gap .......... 1020 mm/40.1" (opt.)
• Swing over cross slide .......... 570 mm/22.4"
• Distance between centers .......... 200"
• Width of bed .......... 450 mm/17.7"
Headstock:
• Spindle nose ..... A2-11 ..... A2-11 ..... A2-15 ..... A2-20
• Spindle bore ..... 105 mm/4.1" ..... 153 mm/6" (opt.) ..... 230 mm/9.1" (opt.) ..... 305 mm/12" (opt.)
• Spindle speeds ..... 20 - 92 R.P.M. ..... 10 - 52 R.P.M. ..... 3 - 30 R.P.M. ..... 5 - 25 R.P.M.
• Spindle speeds ..... 33 - 93 R.P.M. ..... 53 - 52 R.P.M. ..... 31 - 107 R.P.M. ..... 26 - 86 R.P.M.
• Spindle speeds ..... 331 - 1500 R.P.M. ..... 176 - 800 R.P.M. ..... 108 - 450 R.P.M. ..... 87 - 350 R.P.M.
• Taper of spindle bore .......... MT 5
Threading:
• Inch threads range .......... 2 - 28 T.P.I. (36 kinds)
• Metric threads range .......... 0.08 - 14mm/pitch (65 kinds)
• Module pitch threads .......... 0.5 - 7 M (22 kinds)
• DP threads .......... 4-56 T.P.I. (36 kinds)
• Leadscrew pitch .......... 2 T.P.I. or 12 mm/0.47"
Carriage:
• Compound rest travel .......... 250 mm/9.8"
• Cross slide travel .......... 450 mm/17.7"
Tailstock:
• Tail spindle travel .......... 220 mm/8.7"
• Tail spindle diameter .......... 105 mm/4.1"
Power:
• Main drive motor .......... 15HP/20HP (opt.)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 715 x 170 x 180 cm /281" x 67" x 71"
• Net Weight .......... 5200kgs /11464 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only

Standard Equipment:
• Center sleeve
• Built-in coolant system
• MT #6 dead center (2 pcs.)
• Halogen work light
• Toolbox with tools
• Followable splash guard
• 24 V control circuit
• Operation manual

Optional Accessories:
• Upgrade to 6" bore hole & 20 hp spindle motor
• 12" 3-jaw chuck (A2-11) w/ 4.13" thru hole
• 18" 4-jaw chuck for A2-11 spindle nose
• 28" 4-jaw independent chuck for A2-11 spindle nose
• Steady rest with rollers (1.96" - 11.8")
• Steady rest with rollers (11" - 15.74")
• Taper attachment
• Followable rear splash guard
• Gap type bed
