New ACER Dynamic-38315D Oil Country Engine Lathe
Have one to sell?
ConditionNew
New

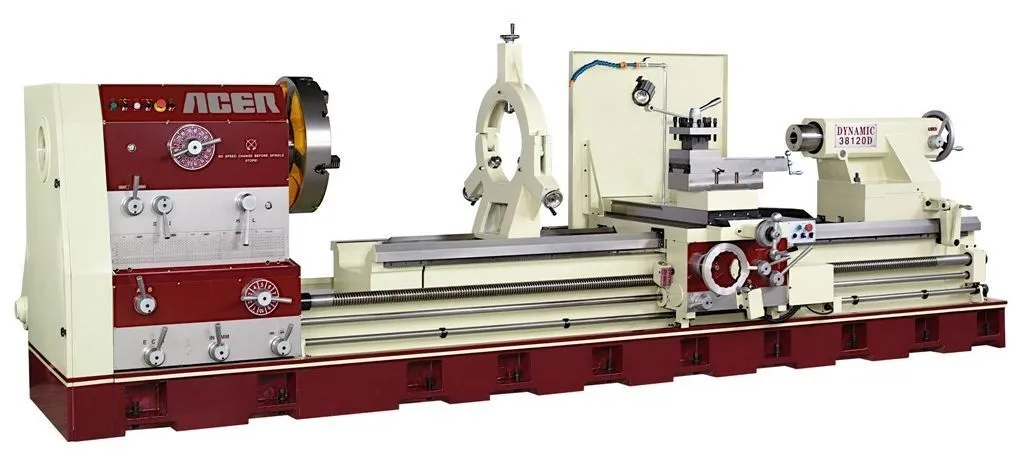

Discover the new ACER Dynamic-38315D Oil Country Engine Lathe with a 37.8" swing, 315" between centers, and 6" spindle bore. This powerful 40 HP machine offers a robust bedway, rapid traverse, and essential accessories for diverse machining tasks.
Specifications:
General Capacity:
• Length of gap from headstock..........495 mm / 19.5"
• Swing over bed..........960 mm / 37.8"
• Swing over gap..........1390 mm / 54.7"
• Swing over cross slide..........650 mm / 25.6"
• Distance between centers..........8000 mm / 315"
Main Spindle:
• Spindle nose..........A2-11
• Spindle bore diameter..........152 mm / 6"
• Spindle speeds..........4–420 R.P.M. (16 steps)
• Taper of center..........MT 6
Carriage:
• Cross slide travel..........600 mm / 23.6"
• Compound rest travel..........370 mm / 14.57"
• Max. size cutting tool..........40x40mm / 1.57"x1.57"
Bed:
• Bed length..........9900 mm / 390"
• Bed width..........610 mm / 24"
• Width of gap..........298.45 mm / 17.75"
Threading & Feeding:
• Pitch of leadscrew..........50, 2 TPI
• Metric pitch threads..........1–120 mm (62)
• Inch pitch threads..........0.25–30 TPI (70)
• Module pitch threads..........0.25–30 MP (53)
• Diametral pitch threads..........1–120 DP (70)
• Range of longitudinal feeds..........0.06–7.04 mm/rev / 0.0024–0.28" in/rev
• Range of crossfeeds..........0.03–3.52 mm/rev / 0.0012–0.14" in/rev
Power:
• Main drive motor..........40 HP (30 kw)
• Rapid traverse motor..........1 HP (0.75 kw)
• Coolant pump motor..........1/8 HP (0.1 kw)
Weight & Dimensions:
• Net Weight..........14000 kgs / 30865 lbs
• Gross Weight..........15400 kgs / 33951 lbs
• Packing Dimensions (L x W x H)..........10600 x 2030 x 2120 cm / 417" x 80" x 83"
Features:
• Hardened and ground Meehanite casting bedway.
• Hardened and ground gears and spindle.
• 24" wide bed ways.
• 6" spindle bore.
• 6" diameter heavy duty tailstock quill.
• Rapid traverse on the carriage.
Standard Accessories:
• 1 16" Steady Rest
• 1 Follow Rest
• Toolbox with tools
• Operation manual with parts list
• Coolant system with external tank
• Followable splash guard
• Multi-position feeds stop
• CE standard 24V electric control
• X,Z rapid travel & auto lube system
• Halogen work light
• Electromagnetic brake system
• Gap bed
Optional Accessories:
• Rotating Tailstock Spindle
• Grinding Attachment
• Combo Face Plate with four jaws from 32"-60" in diameter
• Jaw Installing Tailstock
• Hydraulic Four Position Turret
• Milling Attachment
• Steady Rest
• Follow Rest
• Drilling Attachment
• Coolant Collecting Tank
