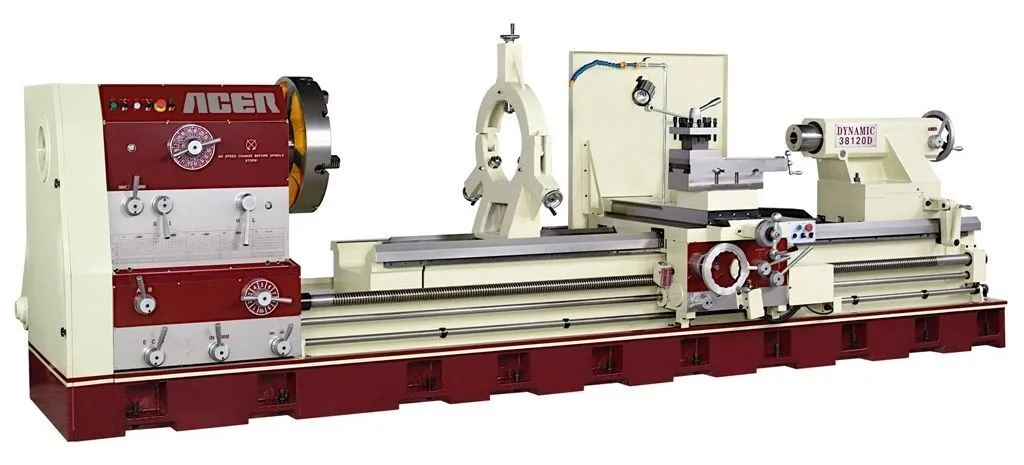

New ACER Dynamic-50160D Oil Country Engine Lathe
Have one to sell?
ConditionNew
New
Introducing the new ACER Dynamic-50160D Oil Country Engine Lathe: features a 50" swing, 160" between centers, and a 6" spindle bore. Powered by a 40 HP motor, it includes standard equipment like a halogen work light, coolant system, and auto lube system.
Specifications:
General Capacity:
• Length of gap from headstock..........495 mm / 19.5"
• Swing over bed..........1270 mm / 50"
• Swing over gap..........1702 mm / 67"
• Swing over cross slide..........965 mm / 38"
• Distance between centers..........4000 mm / 160"
Main Spindle:
• Spindle nose..........A2-11
• Spindle bore diameter..........152 mm / 6"
• Spindle speeds..........4–420 R.P.M. (16 steps)
• Taper of center..........MT 6
Carriage:
• Cross slide travel..........673 mm / 26.5"
• Compound rest travel..........370 mm / 14.57"
• Max. size cutting tool..........40x40mm / 1.57"x1.57"
Bed:
• Bed length..........5900 mm / 232"
• Bed width..........610 mm / 24"
• Width of gap..........298.45 mm / 17.75"
Threading & Feeding:
• Pitch of leadscrew..........50, 2 TPI
• Metric pitch threads..........1–120 mm (62)
• Inch pitch threads..........0.25–30 TPI (70)
• Module pitch threads..........0.25–30 MP (53)
• Diametral pitch threads..........1–120 DP (70)
• Range of longitudinal feeds..........0.06–7.04 mm/rev / 0.0024–0.28" in/rev
• Range of crossfeeds..........0.03–3.52 mm/rev / 0.0012–0.14" in/rev
Power:
• Main drive motor..........40 HP (30 kw)
• Rapid traverse motor..........1 HP (0.75 kw)
• Coolant pump motor..........1/8 HP (0.1 kw)
Weight & Dimensions:
• Net Weight..........10600 kgs / 23369 lbs
• Gross Weight..........11600 kgs / 25574 lbs
• Packing Dimensions (L x W x H)..........6600 x 2030 x 2120 cm / 260" x 80" x 91"
Features:
• Hardened and ground meehanite casting bedway.
• Hardened and ground gears and spindle.
• 24" wide bed ways.
• 6" spindle bore.
• 6" diameter heavy duty tailstock quill.
• Rapid traverse on the carriage.
Standard Accessories:
• 1 16" Steady Rest
• 1 Follow Rest 1.18" - 5.9"
• Toolbox with tools
• Operation manual with parts list
• Coolant system with external tank
• Followable splash guard
• Multi-position feeds stop
• CE standard 24V electric control
• X,Z rapid travel & auto lube system
• Halogen work light
• Electromagnetic brake system
• Gap bed
• Metric / inch gearbox
Optional Accessories:
• Rotating Tailstock Spindle
• Grinding Attachment
• Combo Face Plate with four jaws from 32"-60" in diameter
• Jaw Installing Tailstock
• Hydraulic Four Position Turret
• Milling Attachment
• Steady Rest
• Follow Rest
• Drilling Attachment
• Coolant Collecting Tank
Introducing the new ACER Dynamic-50160D Oil Country Engine Lathe: features a 50" swing, 160" between centers, and a 6" spindle bore. Powered by a 40 HP motor, it includes standard equipment like a halogen work light, coolant system, and auto lube system.
Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
The Acer Dynamic Lathe series are high-speed, precision-geared head engine lathes renowned for their robust construction, exceptional durability, and precision engineering capabilities. Built with high-tensile cast iron, these machines are designed to withstand demanding industrial environments and are a reliable choice for a wide range of machining operations, from intricate parts for aerospace to heavy-duty automotive components.
Key Features & Specifications:
Ideal For:
The Acer Dynamic series is ideal for job shops, manufacturing facilities, and educational institutions seeking a reliable, high-precision manual lathe capable of handling both general-purpose and intricate turning operations with consistency and power.
Imperial
| Swing | 50" |
| Centers | 160" |
| Spindle Bore | 6" |
| Power | 40 hp |
| RPM | 420 RPM |
| Swing Over Cross Slide | 38" |
| Dimensions | 260" x 80" x 91" |
| Weight | 23,369Lbs. |
Specifications:
General Capacity:
• Length of gap from headstock..........495 mm / 19.5"
• Swing over bed..........1270 mm / 50"
• Swing over gap..........1702 mm / 67"
• Swing over cross slide..........965 mm / 38"
• Distance between centers..........4000 mm / 160"
Main Spindle:
• Spindle nose..........A2-11
• Spindle bore diameter..........152 mm / 6"
• Spindle speeds..........4–420 R.P.M. (16 steps)
• Taper of center..........MT 6
Carriage:
• Cross slide travel..........673 mm / 26.5"
• Compound rest travel..........370 mm / 14.57"
• Max. size cutting tool..........40x40mm / 1.57"x1.57"
Bed:
• Bed length..........5900 mm / 232"
• Bed width..........610 mm / 24"
• Width of gap..........298.45 mm / 17.75"
Threading & Feeding:
• Pitch of leadscrew..........50, 2 TPI
• Metric pitch threads..........1–120 mm (62)
• Inch pitch threads..........0.25–30 TPI (70)
• Module pitch threads..........0.25–30 MP (53)
• Diametral pitch threads..........1–120 DP (70)
• Range of longitudinal feeds..........0.06–7.04 mm/rev / 0.0024–0.28" in/rev
• Range of crossfeeds..........0.03–3.52 mm/rev / 0.0012–0.14" in/rev
Power:
• Main drive motor..........40 HP (30 kw)
• Rapid traverse motor..........1 HP (0.75 kw)
• Coolant pump motor..........1/8 HP (0.1 kw)
Weight & Dimensions:
• Net Weight..........10600 kgs / 23369 lbs
• Gross Weight..........11600 kgs / 25574 lbs
• Packing Dimensions (L x W x H)..........6600 x 2030 x 2120 cm / 260" x 80" x 91"
Features:
• Hardened and ground meehanite casting bedway.
• Hardened and ground gears and spindle.
• 24" wide bed ways.
• 6" spindle bore.
• 6" diameter heavy duty tailstock quill.
• Rapid traverse on the carriage.
Standard Accessories:
• 1 16" Steady Rest
• 1 Follow Rest 1.18" - 5.9"
• Toolbox with tools
• Operation manual with parts list
• Coolant system with external tank
• Followable splash guard
• Multi-position feeds stop
• CE standard 24V electric control
• X,Z rapid travel & auto lube system
• Halogen work light
• Electromagnetic brake system
• Gap bed
• Metric / inch gearbox
Optional Accessories:
• Rotating Tailstock Spindle
• Grinding Attachment
• Combo Face Plate with four jaws from 32"-60" in diameter
• Jaw Installing Tailstock
• Hydraulic Four Position Turret
• Milling Attachment
• Steady Rest
• Follow Rest
• Drilling Attachment
• Coolant Collecting Tank
