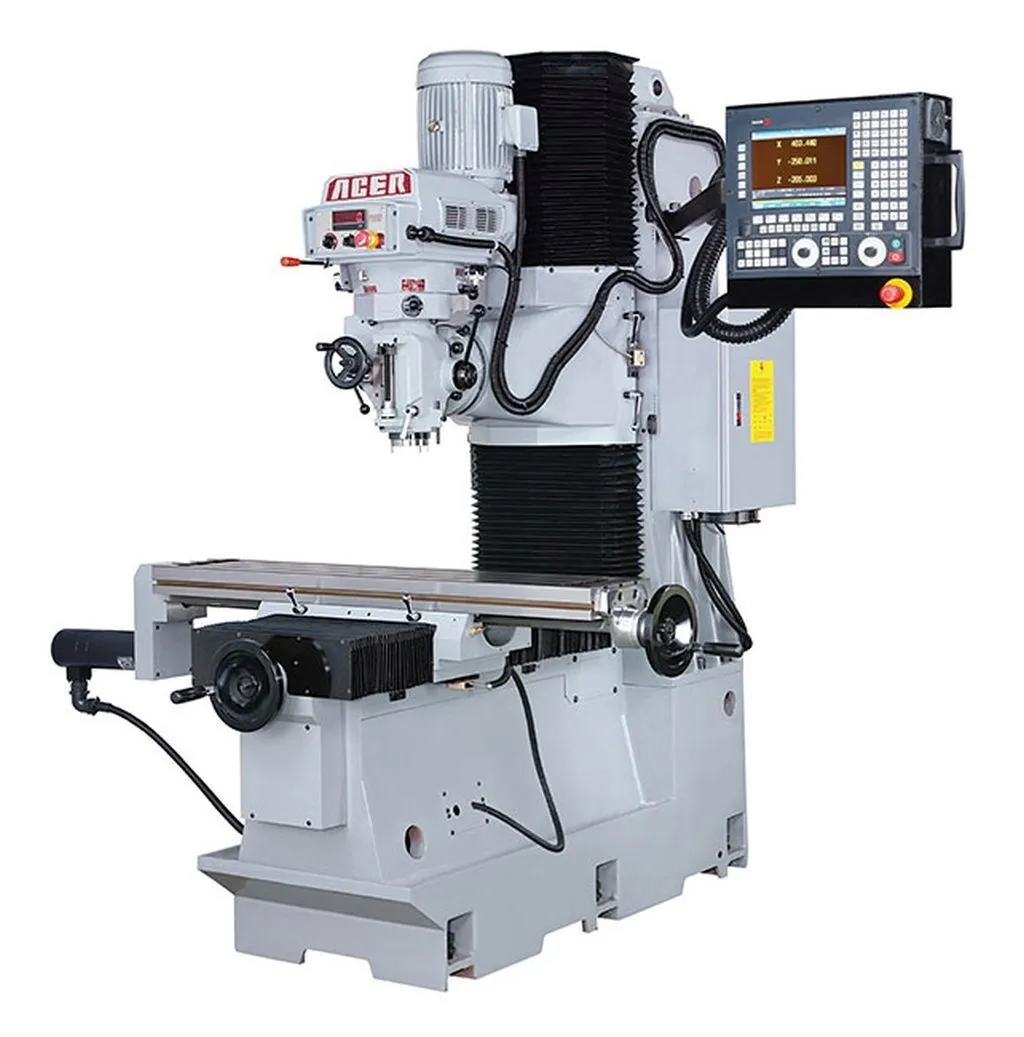

New ACER 1054 CNC Bed Type Milling Machine w/ Fagor 8058 Elite 4X Control

Specifications:
Table:
• Table size:.......... 10" x 54"
• T-slots:.......... 3 x 5/8"
• Table load:.......... 1320 lbs
Travel:
• X-axis max. / rapid feed:.......... 31.5", 800mm / 200 IPM
• Y-axis max. / rapid feed:.......... 20", 500mm / 200 IPM
• Z-axis max. / rapid feed:.......... 20.87", 530mm / 200 IPM
• Max. spindle nose to table:.......... 5.31" - 25.39"
• Spindle center to column face:.......... 23.62"
Spindle:
• Quill diameter:.......... 4"
• Quill travel:.......... 5"
• Spindle taper:.......... CAT #40 or (NST #40 optional)
• Spindle speed(High/Low):.......... 60 - 4500 RPM / 7 - 570 RPM
• Power quill feeds (in/rev.):.......... 0.0015", 0.003", 0.006"
• Head moves right to left:.......... 90°
Motor:
• Spindle:.......... 5 HP
• X-axis servo motor:.......... DC 31.3 lb-in or AC 750 watts
• Y-axis servo motor:.......... DC 31.3 lb-in or AC 750 watts
• Z-axis servo motor:.......... DC 31.3 lb-in or AC 750 watts
• Coolant pump:.......... 1/8 HP
Power:
• Control:.......... 110V/1PH/30A
• Machine:.......... 230V 3PH or 1PH, 20A (440V optional, 10A)
Dimensions:
• Machine dimensions (X x Y x Z):.......... 76.5" x 78.75" x 100"
• Packing dimensions (X x Y x Z):.......... 65" x 70.1" x 88.6"
Weight:
• Approx. net:.......... 4558 lbs
• Approx. gross:.......... 4758 lbs

Standard Features:
• Auto Lube System
• CAT #40 Taper Spindle & Class 7 Precision Spindle Bearings
• C5 Ball Screws And Double End Thrust Ball Screw Bearing Set
• 5 Hp Spindle Inverter Motor
• Infinite 0-4500 Rpm Speed
• "Toshiba" Vector Type Frequency Inverter
• Precision 4" Diameter Hard Chromed Quill At HRC 62 Deg.
• HRC 52 Degrees Hardened And Ground Table
• Turcite-B Coated Slideway And Gibs Prolong Machining Life
• Meehanite Casting
• Automotive Paint
• Class 7 Precision Spindle Bearings
• Turcite-B Lining Saddle Ways To Reduce Slide-Way Wear
• Hardened & Ground X,Y, & Z, Table Top And Bottom To HRC 52 Degrees
• 1" Diameter Ball Screws With Casted Mounting Brackets

Control software features:
• Interactive icon-based conversational programming system
• One screen - one operation, fill in the blanks & press cycle to start
• No limit to the number of programs in memory
• Built-in mini CAD/CAM system
• 11" color TFT LCD screen
• Numerous canned cycles in conversational and G-code
• X, Y axis (750W), Z-axis (1KW) AC brushless servo motor & drive
• Flash memory (1 MB flash RAM / 512 MB CF); 2GB CF optional
• USB port is standard; Ethernet port optional
• Win DIN (DXF converter); engraving optional
• Full CNC package includes ball screws and motor brackets for all axes
• "Fagor" 8058 ELITE 4X CNC’s give you 4th axis capability out of the box

Optional Accessories:
• Angle Lock Milling Vise
• 52pcs Clamping Kit
• Manual Horizontal/Vertical Rotary Table
• T-Slot Cover
• Telescopic Stainless Cover
• Spindle Guard
• Hydraulic Machine Vise
• Air Power Drawbar
• CAT or BT#40 Tool Holder Set
• Coolant System
• Semi-Universal Dividing Head
• CNC Power Vise
• Column Side Guard and Chip Pan
• Chip Pan
• Table Guard
• Riser Block for 1054 Model
• 4th Axis Rotary Table
• Tailstock
• Table Top Guard
• Halogen or LED light
