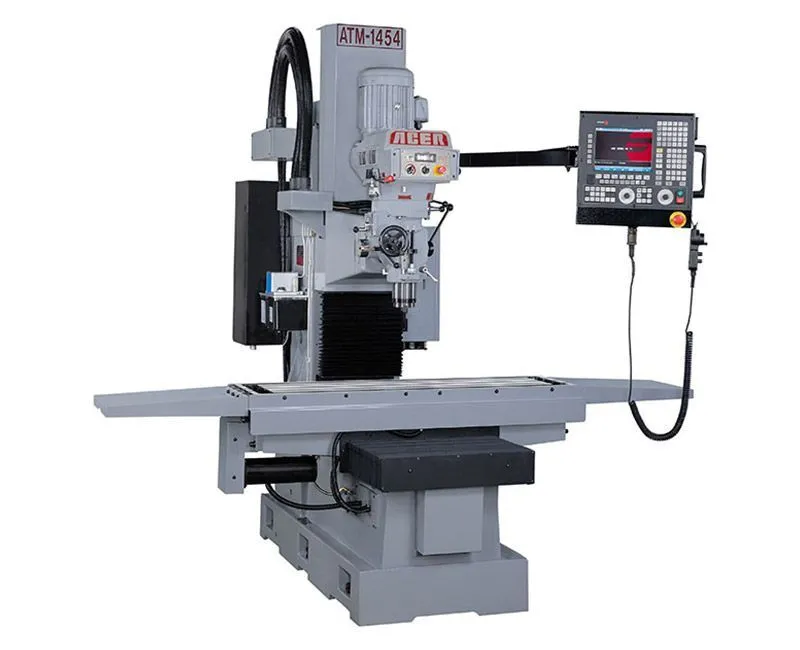

New ACER 1454 CNC Bed Type Mill w/Fagor 8055i CNC Controls

General Information:
Table:
• Table Size:.......... 14" x 54" (356 x 1372mm)
• T-Slots:.......... 3 x 5/8" (16mm)
• Table Load:.......... 1960 lbs (891kgs)
Travel:
• X Axis Max./Rapid Feed:.......... 40" (1016mm)/200ipm
• Y Axis Max./Rapid Feed:.......... 22.44"(570mm)/200ipm
• Z Axis Max./Rapid Feed:.......... 26.77"(680mm)/200ipm
• Max Spindle Nose to Table:.......... 1"(25.4mm)~27.75" (705mm)
• Spindle Center to Column Face:.......... 21.3" (540mm)
Spindle:
• Quill Diameter:.......... 4" (120mm)
• Quill Travel.......... 5
• Spindle Taper:.......... CAT#40 (BT#40, NMTB#40 Opt.)
• Spindle Speed Hi/Low RPM:.......... 60 - 4500 / 7-570
• Spindle Feed-3 ranges in(mm) / rev.:...........0.0015", 0.003", 0.006"
• Spindle Rotation Angle..........±90°
Motor:
• Spindle HP:.......... 5
• X Axis Servo Motor:.......... DC 31.3 in-lb or AC 1.5KW
• Y Axis Servo Motor:.......... DC 31.3 in-lb or AC 1.5 KW
• Z Axis Servo Motor:.......... DC 31.3 in-lb or AC 2.2 KW
• Coolant Pump HP (Opt.):.......... 1/8
• Lubrication Pump Watts:.......... 80
Power & Air Requirements:
• Control..........110V/1P/20A or 230V/3P/50A
• Machine.......... 230V(460V)/3P/14A(7A) or single phase 230V
Dimensions:
• Max Height:.......... 104.7" (2660mm)
• Height from Table Top to Bottom of Bed:.......... 31.5" (800mm)
• Width of Machine Including Table:.......... 94.49" (2400mm)
• Overall Length with Electrical Door Closed:.......... 84.65" (2150mm)
• Overall Length with Electrical Door Open:.......... 109.06" (2770mm)
• Overall Width with Full Table Traverse:.......... 141.73"(3600mm)
• Footprint of Machine inches:.......... 100" x 74" x110"
• Footprint of Machine metric:.......... 2540 x 1880 x 2794mm
• Max. Machine Operation Space:.......... 135.8" x 109.1" x 104.7" (345x277 x 266cm)
• Packing Dimension Approx (X x Y x Z w/balancing block):........... 90.55" x 78.74" x 88.58" (230 x 200 x 225cm)
• Net Weight Approx.:.......... 6058 lbs (2748 kgs)
• Gross Weight Approx.:.......... 6336 lbs (2874 kgs)
Maximum Working Capacity in Mild Steel:
• Drilling Max Capacity:.......... Ф1-1/4" (32mm)
• Milling Max Capacity:.......... 3mm x Ф100mm
• Boring Capacity:.......... Ф4.75" (120mm)
• Tapping Max Capacity:.......... 1" (25mm)

Standard Features:
• Fagor 8055i/FL-MC 3 or 4-Axis CNC Control
• Auto Lube System
• C5 Ball Screws and Double-End Thrust Bearing Set
• Cat #40 Taper Spindle w/ ABEC-7 Bearings
• Hardened and Ground 3-Axes Guideways and Table Surfaces to HRC 52
• "Turcite-B" Coated Slideway and Gibs Prolong Machine Life
• 1" Diameter Ball Screws with Cast Mount Brackets
• Meehanite Casting
• Automotive Paint

Optional Accessories:
• Angle Lock Milling Vise
• 52pcs Clamping Kit
• Manual Horizontal/Vertical Rotary Table
• T-Slot Cover
• Telescopic Stainless Cover
• Spindle Guard
• Hydraulic Machine Vise
• Air Power Drawbar
• CAT or BT#40 Tool Holder Set
• Coolant System
• Semi-Universal Dividing Head
• CNC Power Vise
• Column Side Guard and Chip Pan
• Chip Pan
• Table Guard
• Riser Block for 1454 Model
• 4th Axis Rotary Table
• Tailstock
• Table Top Guard
• Halogen or LED light
