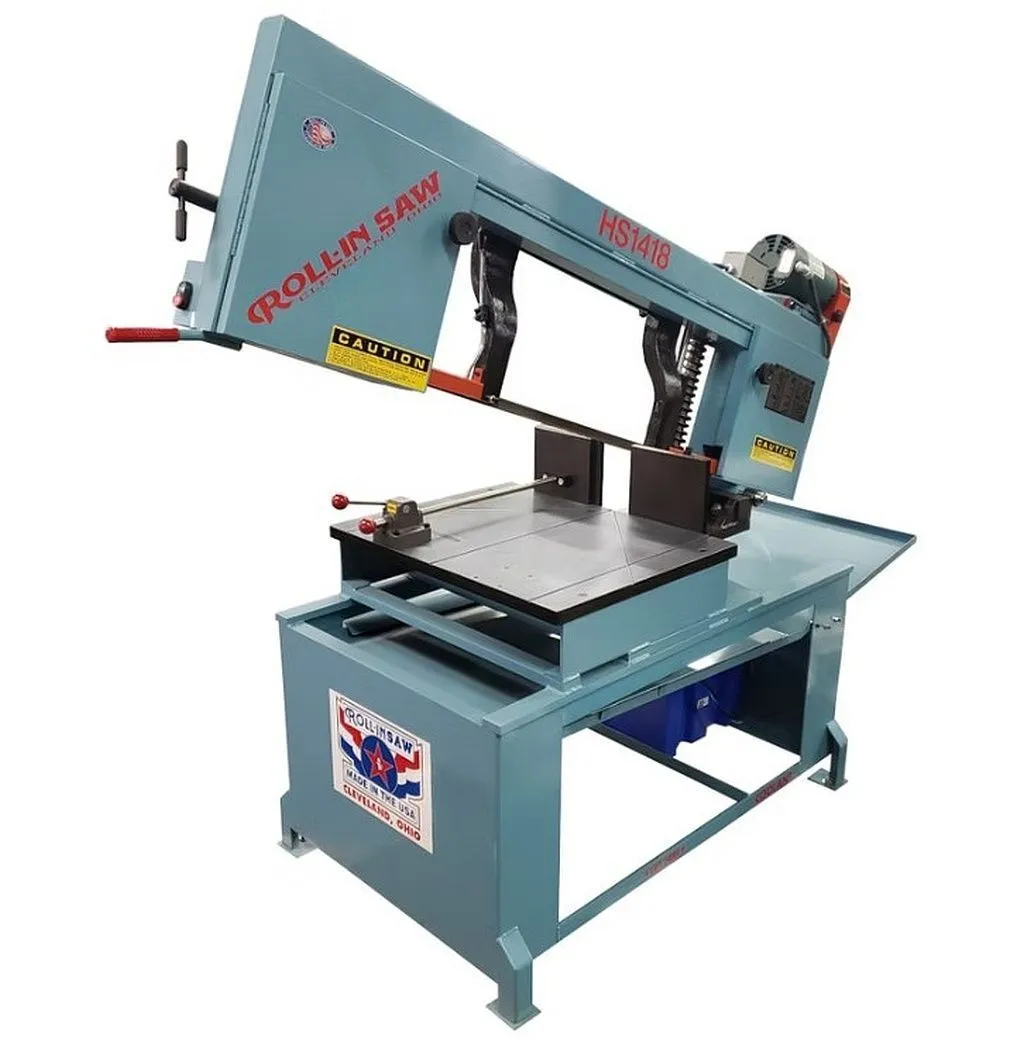

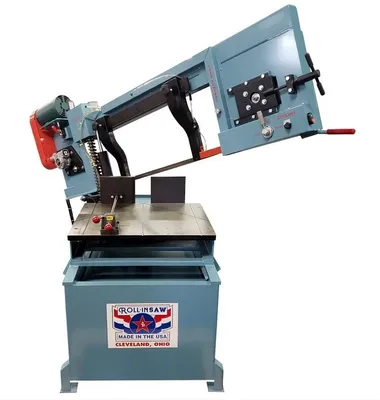

Our largest horizontal saw is built to complete your biggest jobs. With a cutting capacity of 14" at 90°, and 12" capacity at 45°, the HS1418 will provide decades of true cutting on both large and small jobs. This reliable saw features a hydraulic feed system for a controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12" material.
The large 24" x 30" cutting table, with a quick clamp that can be moved to either side of the table, provides a versatile work space for cutting all material.
The hydraulic feed system and built-in coolant system provides clean smooth cuts. The built-in coolant system features side splash panels, an 8 gallon coolant reservoir, and 3.5 gpm pump.
Specifications:
Feed System.......... Hydraulic cylinder for controlled feeds
Blade Travel.......... 14"
Cutting Capacity at 90°.......... Rectangle: 18" x 14" Round: 14" Square: 14"
Cutting Capacity at 45°.......... Rectangle: 14" x 12" Round: 12" Square: 12"
Cutting Capacity at 60°.......... Rectangle: 14" x 8" Round: 8" Square: 8"
Miter Cut Angle Range.......... 0° - 60° (Saw Head Swivels 60° In Both Directions)
Bevel Cut Angle Range.......... N/A
Capacity Under Guides.......... 14”
Blade Size (Ships With Saw).......... 1" Width x 13' 10" Length .035 Thick (bi-metal)
Blade Size (Accepted Widths).......... 1"
Blade Speeds.......... 70/140/270 sfpm
Table.......... Precision Ground Steel Table: 24” x 30”
Table Height.......... 31" From Floor (No Casters)
Motor.......... 2 HP, 220/440V three-phase
Saw Dimensions.......... 34 ½" Width x 66" Height x 90" Length
Shipping Dimensions.......... 41" Width x 66" Height x 96" Length
Shipping Weight.......... 1,600 lbs. F.O.B. Cleveland, Ohio

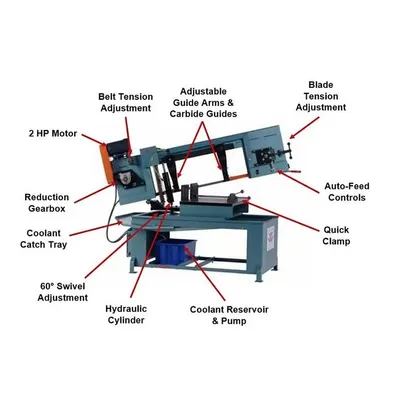

Product Features
• Fast accurate cut on up to 14" thick material
• Saw easily swivels up to 60° in either direction, allowing for precise angled cuts
• The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts
• Built-in coolant system enables faster cuts and extends the life of the saw blades
