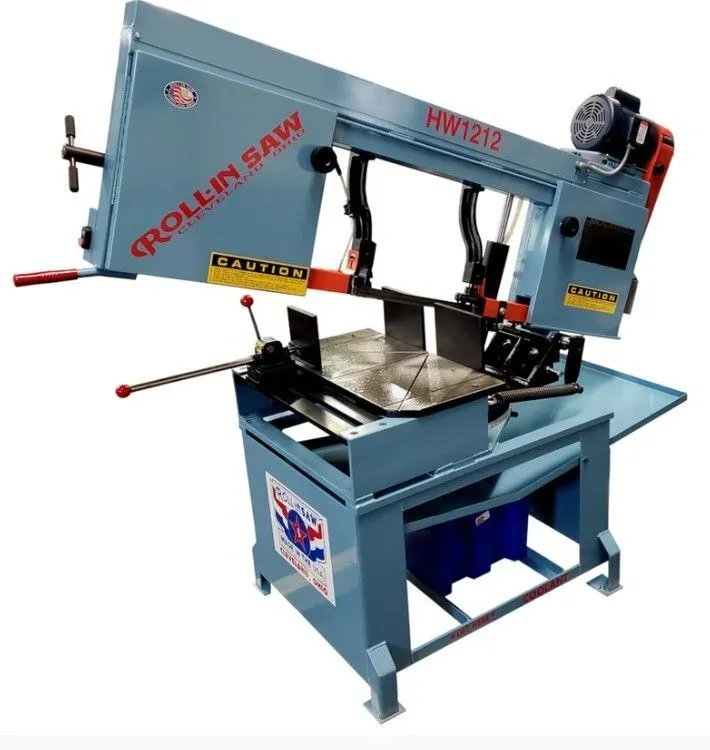

New Roll-In Saw HW1212 Horizontal Wet Miter Saw
Have one to sell?
ConditionNew
New
The HW1212 takes the dependable base of the HM1212 and adds a built-in coolant system. This reliable saw features a hydraulic feed system for controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12" material.
With a quick clamp that can be moved to either side of the 13" x 26.5" table, material can be fed from either direction, allowing more versatility.
The built-in coolant system has side splash panels, an 8 gallon coolant reservoir, and 3.5 gpm pump. This HW1212 built-in coolant system provides you a cleaner system that provides extended life of the blade.
SPECIFICATIONS:
• Feed System.......... Hydraulic cylinder for controlled feeds
• Blade Travel.......... 12"
• Cutting Capacity at 90°.......... Round: 12" Square: 10" Rectangle: 12" x 10"
• Cutting Capacity at 45°.......... Round: 8" Square: 8" Rectangle: 10" x 8"
• Cutting Capacity at 60°.......... Round: 6" Square: 6" Rectangle 8" x 6"
• Miter Cut Angle Range.......... 0° - 60° (Saw Head Swivels 60° In Both Directions)
• Bevel Cut Angle Range.......... N/A
• Capacity Under Guides.......... 12”
• Blade Size (Ships With Saw).......... 1" Width x 11' 8" Length .035 Thick (bi-metal)
• Blade Size (Accepted Widths).......... 1"
• Blade Speeds.......... 70/140/270 sfpm
• Table.......... Precision Ground Steel Table: 13” x 26.5”
• Table Height.......... 30" From Floor (No Casters)
• Motor.......... 1 HP 110/220V single-phase
• Saw Dimensions.......... 26" Width x 60" Height x 73" Length
• Shipping Dimensions.......... 41" Width x 65" Height x 82" Length
• Shipping Weight.......... 1,000 lbs.
Product Features
• Fast accurate cut on materials up to 12" thick
• Saw easily swivels up to 60° in either direction, allowing for precise angled cuts
• The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts
• Built-in coolant system enables faster cuts and extends the life of the saw blades
***F.O.B. Cleveland, Ohio***
The HW1212 takes the dependable base of the HM1212 and adds a built-in coolant system. This reliable saw features a hydraulic feed system for controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12" material.
With a quick clamp that can be moved to either side of the 13" x 26.5" table, material can be fed from either direction, allowing more versatility.
The built-in coolant system has side splash panels, an 8 gallon coolant reservoir, and 3.5 gpm pump. This HW1212 built-in coolant system provides you a cleaner system that provides extended life of the blade.
T.R. Wigglesworth Machinery Company is proud to offer the "Made in America" Roll-in Saw product line.
In 1940, Roll-In Saw introduced its patented gravity fed vertical bandsaw. The precision and versatility of this saw set the benchmark for Roll-In Saw for the next 75+ years.
Our line of long-lasting band saws provide accurate and reliable performance, resulting in uptime, versatility, and efficiency for its users.
Imperial
| Rect-Cap (H) | 12" |
| Rect-Cap (W) | 10" |
| Rounds-Cap | 12" |
| Square-Cap | 10" |
| Power | 1 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 140" |
| Dimensions | 26" x 60" x 73" |
| Weight | 1000Lbs |
SPECIFICATIONS:
• Feed System.......... Hydraulic cylinder for controlled feeds
• Blade Travel.......... 12"
• Cutting Capacity at 90°.......... Round: 12" Square: 10" Rectangle: 12" x 10"
• Cutting Capacity at 45°.......... Round: 8" Square: 8" Rectangle: 10" x 8"
• Cutting Capacity at 60°.......... Round: 6" Square: 6" Rectangle 8" x 6"
• Miter Cut Angle Range.......... 0° - 60° (Saw Head Swivels 60° In Both Directions)
• Bevel Cut Angle Range.......... N/A
• Capacity Under Guides.......... 12”
• Blade Size (Ships With Saw).......... 1" Width x 11' 8" Length .035 Thick (bi-metal)
• Blade Size (Accepted Widths).......... 1"
• Blade Speeds.......... 70/140/270 sfpm
• Table.......... Precision Ground Steel Table: 13” x 26.5”
• Table Height.......... 30" From Floor (No Casters)
• Motor.......... 1 HP 110/220V single-phase
• Saw Dimensions.......... 26" Width x 60" Height x 73" Length
• Shipping Dimensions.......... 41" Width x 65" Height x 82" Length
• Shipping Weight.......... 1,000 lbs.
Product Features
• Fast accurate cut on materials up to 12" thick
• Saw easily swivels up to 60° in either direction, allowing for precise angled cuts
• The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts
• Built-in coolant system enables faster cuts and extends the life of the saw blades
***F.O.B. Cleveland, Ohio***
