New Roll-In Saw EF1459 - The Original
Have one to sell?
ConditionNew
New
“The Original” was the first saw in America to use a patented gravity-feed system that saves time and energy. The success of this product is the bedrock for the reputation Roll-In Saw has earned for manufacturing versatile & durable saws.

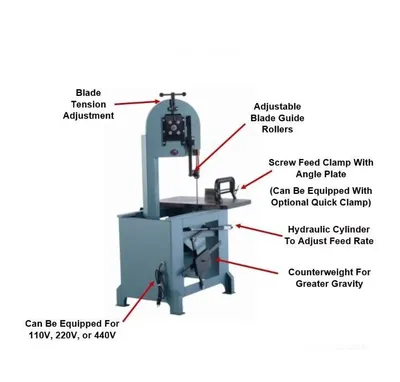

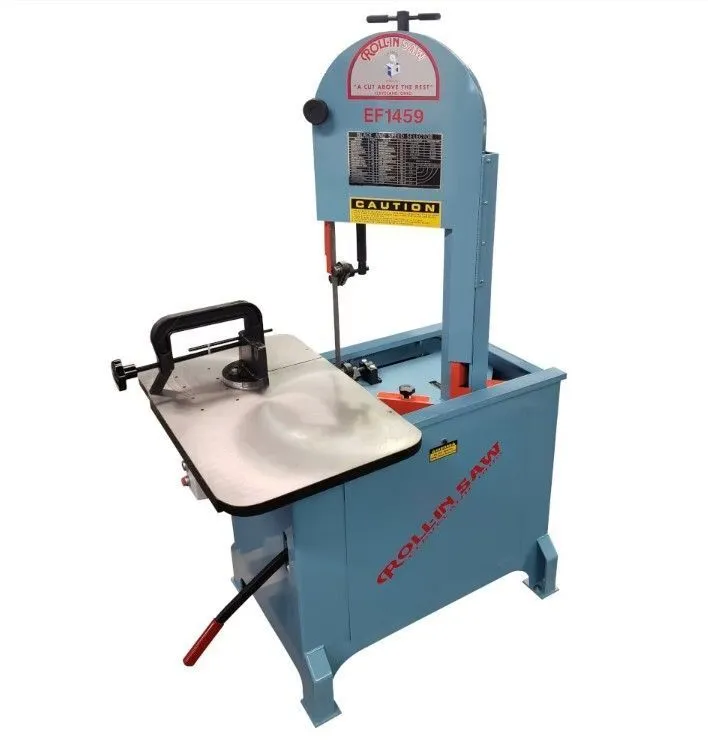

The EF1459 is actually a horizontal band saw on a vertical frame. An all-purpose band saw, it handles all metals, plastics, and woods in a wide variety of cuts. It is a fast, accurate cut-off machine that is perfect for notching, slitting, and slotting. A reliable addition to your shop floor or tool room, this band saw doubles as a contour, profile, and rip saw.

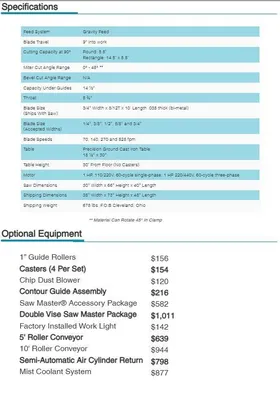

SPECIFICATIONS:
• Feed System.......... Gravity Feed
• Blade Travel.......... 9" Into Work
• Cutting Capacity At 90 Deg.......... Round: 8.5" Rectangle: 14.5" x 8.5"
• Miter Cut Angle Range.......... 0 - 45 Degrees **
• Bevel Cut Angle Range.......... N/A
• Capacity Under Guides.......... 14 1/2"
• Throat.......... 8 3/4"
• Blade Size (Ships With Saw).......... 3/4" Width x 8/12t x 10' Length .035 Thick (Bi-metal)
• Blade Size (Accepted Widths).......... 1/4", 3/8", 1/2", 5/8" And 3/4"
• Blade Speeds.......... 70, 140, 270 And 525 Fpm
• Table.......... Precision Ground Cast Iron Table: 18 1/2" x 30"
• Table Height.......... 30" From Floor (No Casters)
• Motor.......... 1 Hp, 110/220v, 60-cycle Single-phase; 1 Hp 220/440v, 60-cycle Three-phase
• Saw Dimensions.......... 30" W x 66" H x 40" L
• Shipping Dimensions.......... 35" W x 73" H x 48" L
• Shipping Weight.......... 675 Lbs.
** Material Can Rotate 45° In Clamp
Product Features:
• The first saw in America to use a patented gravity-feed system providing users an efficient feed rate
• Fast & accurate all-purpose saw--easily cutting all metals, plastics, & woods
• Horizontal band saw on a vertical frame gives users the versatility of both saw styles
• Precision for complex cuts
• Auto-feed for high volume cutting
Optional Equipment:
• 1” Guide Rollers
• Casters (4 Per Set)
• Chip Dust Blower
• Contour Guide Assembly
• Saw Master® Accessory Package
• Double Vise Saw Master Package
• Factory Installed Work Light

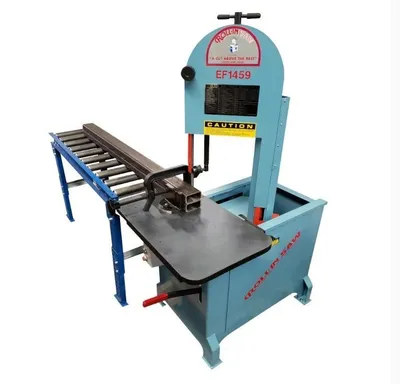

• 5' Roller Conveyor
• 10' Roller Conveyor
• Semi-Automatic Air Cylinder Return
• Mist Coolant System
***F.O.B Cleveland, Ohio***
“The Original” was the first saw in America to use a patented gravity-feed system that saves time and energy. The success of this product is the bedrock for the reputation Roll-In Saw has earned for manufacturing versatile & durable saws.
The EF1459 is actually a horizontal band saw on a vertical frame. An all-purpose band saw, it handles all metals, plastics, and woods in a wide variety of cuts. It is a fast, accurate cut-off machine that is perfect for notching, slitting, and slotting. A reliable addition to your shop floor or tool room, this band saw doubles as a contour, profile, and rip saw.
T.R. Wigglesworth Machinery Company is proud to offer the "Made in America" Roll-in Saw product line.
In 1940, Roll-In Saw introduced its patented gravity fed vertical bandsaw. The precision and versatility of this saw set the benchmark for Roll-In Saw for the next 75+ years.
Our line of long-lasting band saws provide accurate and reliable performance, resulting in uptime, versatility, and efficiency for its users.
Imperial
| Throat | 8.75" |
| Work Height | 14.5" |
| Power | 1 hp |
| Blade Width | 0.75" |
| Blade Length | 120" |
| FPM | 70, 140, 270, 525 |
| Dimensions | 30"W x 66"H x 40"L |
| Weight | 675Lbs |
SPECIFICATIONS:
• Feed System.......... Gravity Feed
• Blade Travel.......... 9" Into Work
• Cutting Capacity At 90 Deg.......... Round: 8.5" Rectangle: 14.5" x 8.5"
• Miter Cut Angle Range.......... 0 - 45 Degrees **
• Bevel Cut Angle Range.......... N/A
• Capacity Under Guides.......... 14 1/2"
• Throat.......... 8 3/4"
• Blade Size (Ships With Saw).......... 3/4" Width x 8/12t x 10' Length .035 Thick (Bi-metal)
• Blade Size (Accepted Widths).......... 1/4", 3/8", 1/2", 5/8" And 3/4"
• Blade Speeds.......... 70, 140, 270 And 525 Fpm
• Table.......... Precision Ground Cast Iron Table: 18 1/2" x 30"
• Table Height.......... 30" From Floor (No Casters)
• Motor.......... 1 Hp, 110/220v, 60-cycle Single-phase; 1 Hp 220/440v, 60-cycle Three-phase
• Saw Dimensions.......... 30" W x 66" H x 40" L
• Shipping Dimensions.......... 35" W x 73" H x 48" L
• Shipping Weight.......... 675 Lbs.
** Material Can Rotate 45° In Clamp
Product Features:
• The first saw in America to use a patented gravity-feed system providing users an efficient feed rate
• Fast & accurate all-purpose saw--easily cutting all metals, plastics, & woods
• Horizontal band saw on a vertical frame gives users the versatility of both saw styles
• Precision for complex cuts
• Auto-feed for high volume cutting
Optional Equipment:
• 1” Guide Rollers
• Casters (4 Per Set)
• Chip Dust Blower
• Contour Guide Assembly
• Saw Master® Accessory Package
• Double Vise Saw Master Package
• Factory Installed Work Light
• 5' Roller Conveyor
• 10' Roller Conveyor
• Semi-Automatic Air Cylinder Return
• Mist Coolant System
***F.O.B Cleveland, Ohio***
