BLANCHARD 20K-36
Have one to sell?
ConditionUsed
1 available

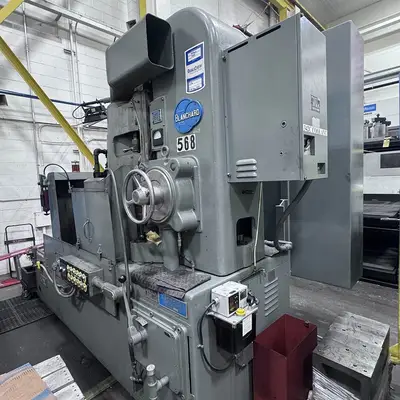

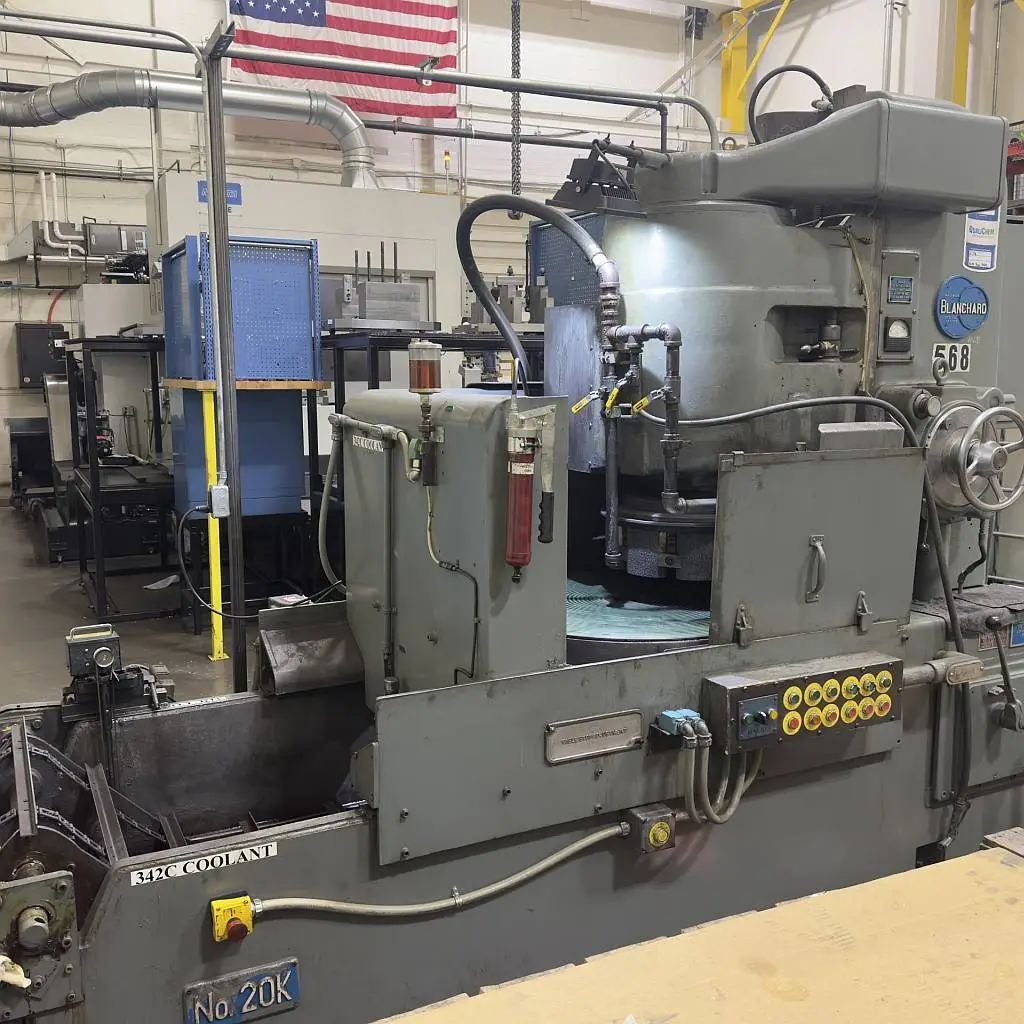

Used BLANCHARD 20K-36 Rotary Surface Grinder features a 36" magnetic chuck, 40 hp power, and a 42" swing. Equipped with auto lubrication, oil skimmer, and conveyor base option. Compact with a 20" grinding wheel and multiple chuck speeds. The machine is equipped with the conveyor base option, and a sludge tote box for heavy duty grinding.
Specifications

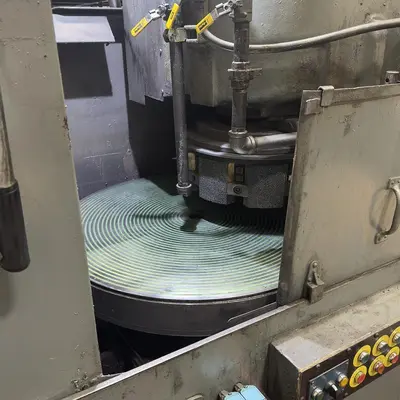

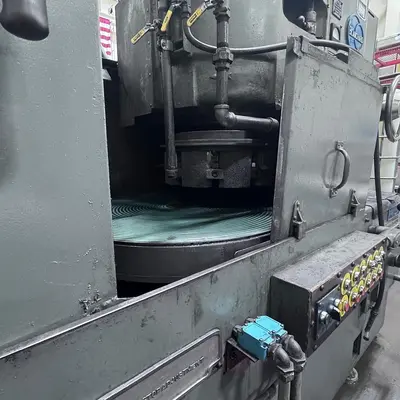

• 36" Magnetic Chuck Diameter
• 18" Vertical Range
• 20" Diameter of Wheel Chuck, Solid Wheel Style

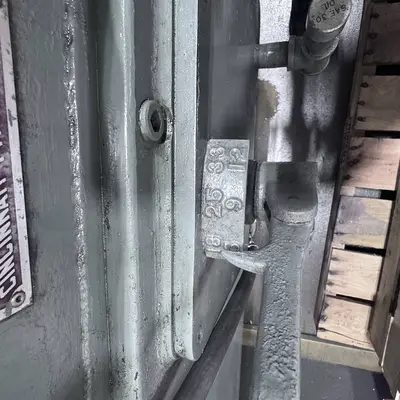

• (6) Ranges of Chuck Speeds, 6, 9, 12, 18, 25, 33 RPM
• Feed 0.004 - 0.080 IPM
• 720 RPM Wheel Speed
• 40 HP, 3 Phase, 60 Cycle, 440 Volt,
• Floor Space 11'8"L x 8'4"W x 9'1"Max./8'8"Min. Height
• Approx. Weight 13,500 lbs.
• Wet base (coolant in base)
Machine Features and Equipped with:
• Original full guarding system.

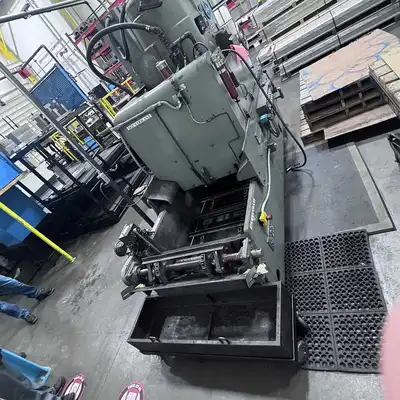

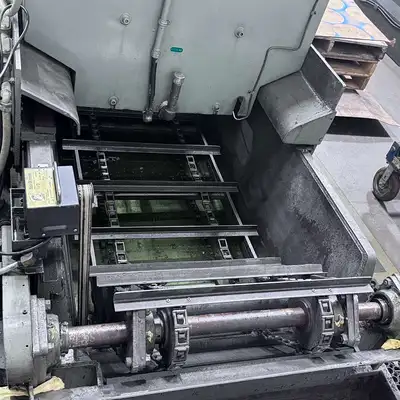

• Conveyor base option, and a sludge tote box for heavy duty grinding.
• Automatic lubrication system.
• Oil skimmer.

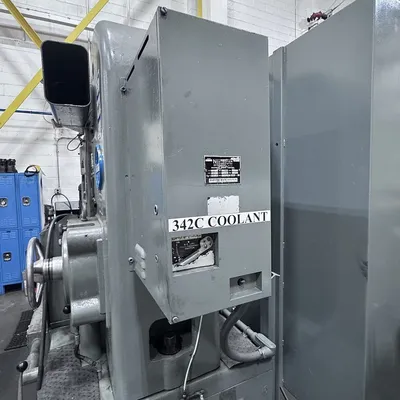

• ½ HP Gusher Pump, Coolant Pump Motor.
• Currently wired 480V originally 220V.
This machine is available for inspection under power.
Offered "As-is, Where-is".
