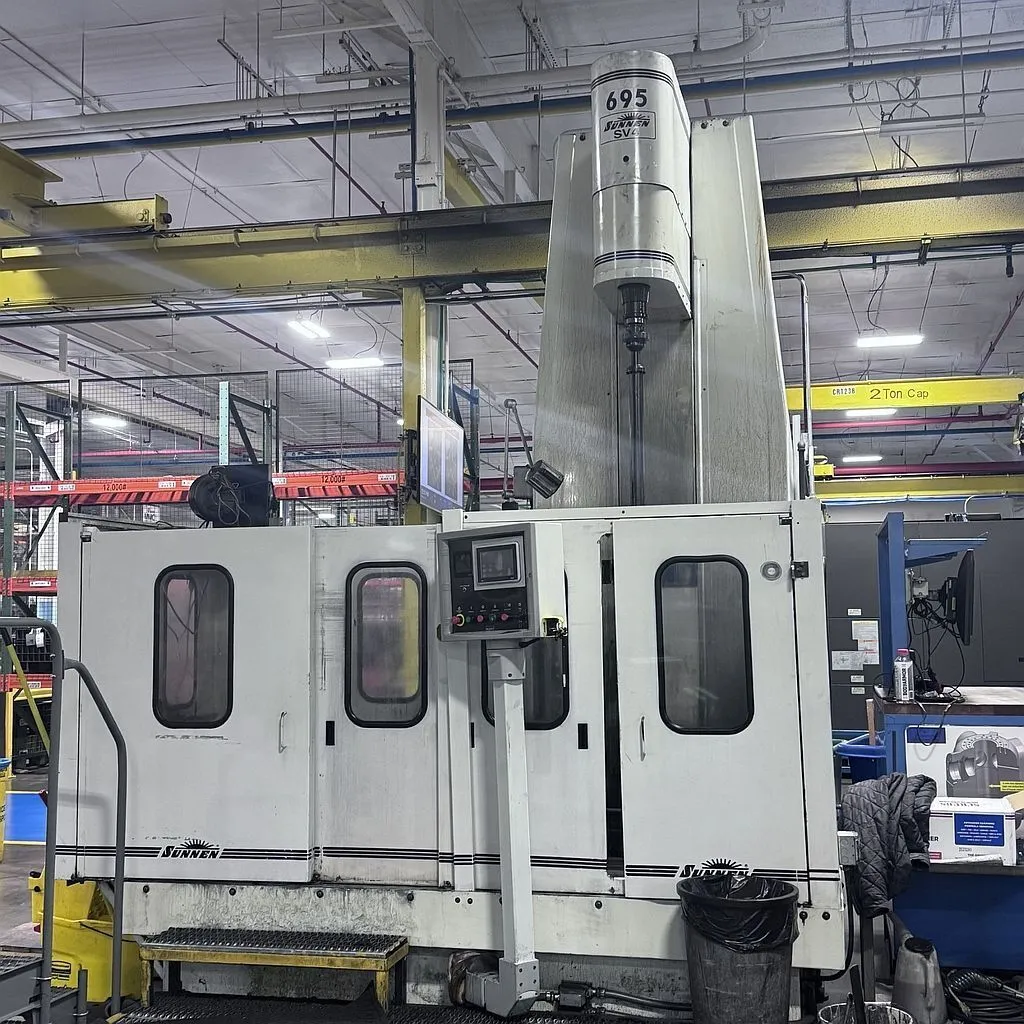

Used SUNNEN SV4 | HONES, VERTICAL
Have one to sell?
ConditionUsed
1 available
Explore precise honing with the used SUNNEN SV4 vertical hone. Features a ½″–20″ bore range, 40″ max part length, and 3,000 lbs capacity. Equipped with a 15 HP spindle motor, adjustable speeds, and 99 setup storage. Ideal for heavy-duty operations.
Specifications:
Bore diameter range*.....½″–20″
Maximum part length*.....Approximately 39⅜″–40″
Full stroke*.....48″
Swing.....32″

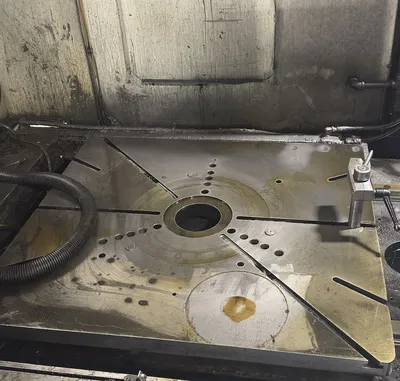

Standard table / work area.....30″ × 50″, T-slotted
Maximum part weight*.....3,000 lbs

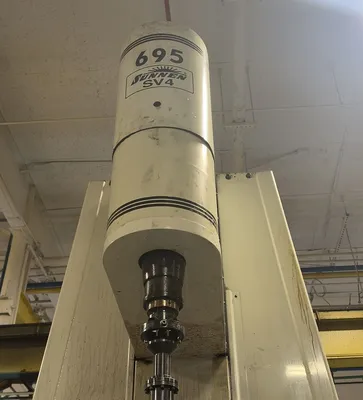

Spindle motor.....15 HP
Spindle speed.....10–500 RPM, variable

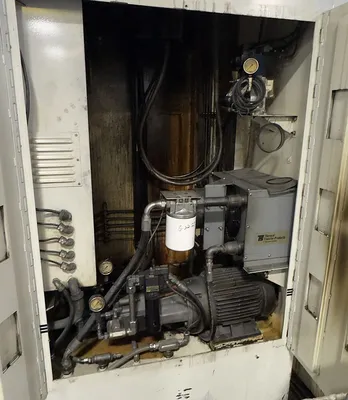

Hydraulic stroking drive.....15 HP
Stroking speed.....0–90 ft/min, adjustable
Maximum stroking thrust.....2,500 lbf
Rotary-feed option.....20 ft-lb maximum torque
Push / two-stage feed options.....2,100 lbf maximum force
Feed functions.....Adjustable pulse feed and spark-out

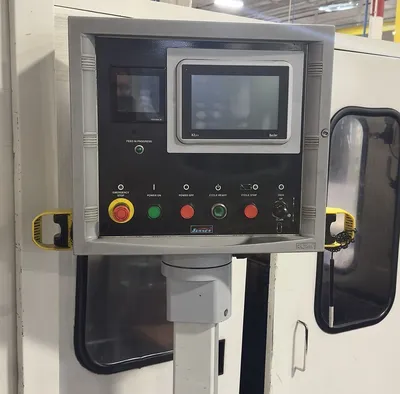

Original control.....PLC; storage for 99 setups

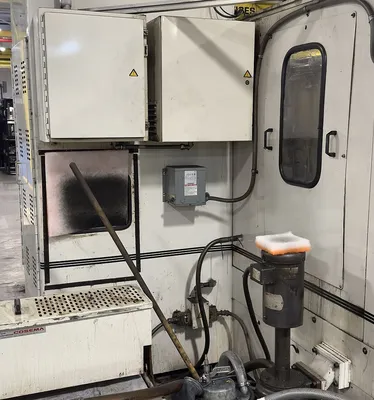

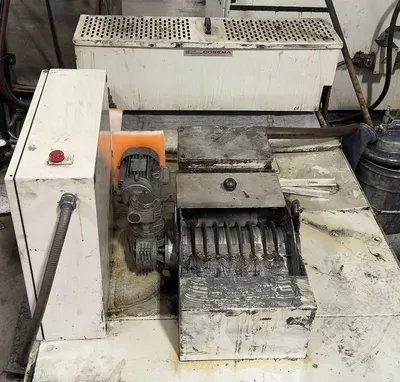

Standard honing-fluid reservoir.....50 gallons
Standard supply pump.....¼ HP; 10 GPM
Fluid controls.....Manual flow adjustment; automatic/manual start
Catalog dimensions, W × D × H.....85″ × 82″ × 154¾″
Catalog shipping weight.....7,000 lbs
Can be seen under power in Northeast Ohio by appointment only
Explore precise honing with the used SUNNEN SV4 vertical hone. Features a ½″–20″ bore range, 40″ max part length, and 3,000 lbs capacity. Equipped with a 15 HP spindle motor, adjustable speeds, and 99 setup storage. Ideal for heavy-duty operations.
Imperial
| Dimensions | 85″ wide × 82″ deep × 154¾″ high |
| Weight | 7,000 lbs |
Specifications:
Bore diameter range*.....½″–20″
Maximum part length*.....Approximately 39⅜″–40″
Full stroke*.....48″
Swing.....32″
Standard table / work area.....30″ × 50″, T-slotted
Maximum part weight*.....3,000 lbs
Spindle motor.....15 HP
Spindle speed.....10–500 RPM, variable
Hydraulic stroking drive.....15 HP
Stroking speed.....0–90 ft/min, adjustable
Maximum stroking thrust.....2,500 lbf
Rotary-feed option.....20 ft-lb maximum torque
Push / two-stage feed options.....2,100 lbf maximum force
Feed functions.....Adjustable pulse feed and spark-out
Original control.....PLC; storage for 99 setups
Standard honing-fluid reservoir.....50 gallons
Standard supply pump.....¼ HP; 10 GPM
Fluid controls.....Manual flow adjustment; automatic/manual start
Catalog dimensions, W × D × H.....85″ × 82″ × 154¾″
Catalog shipping weight.....7,000 lbs
Can be seen under power in Northeast Ohio by appointment only
