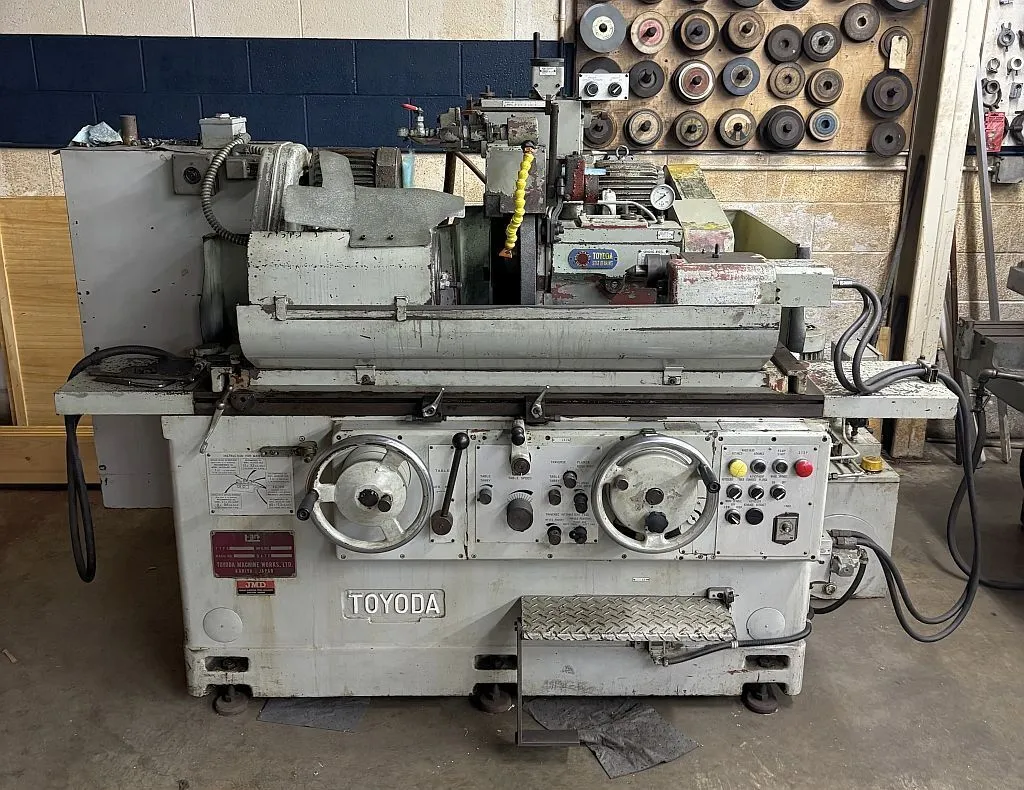

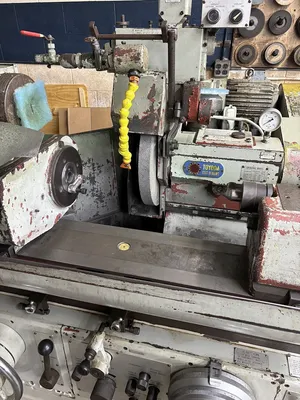

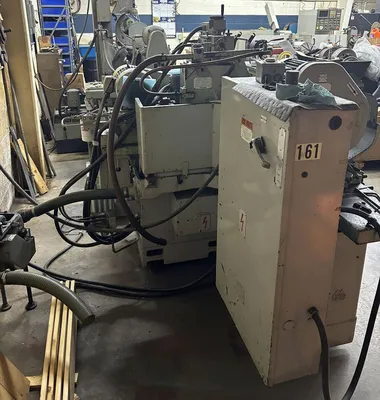

Toyoda GOP32X50 Cylindrical Grinder

Specifications:
• Max swing over table .......... 12.59"
• Distance between centers .......... 19.7"
• Max. load between centers .......... 330Lbs.
• Max grinding diameter .......... 5.9"
• Wheel size .......... 16" x 3" x 5"
• Wheel drive motor .......... 5HP
• Wheel surface speed .......... 6,500Sfpm
• Wheelhead feed mechanism .......... Hydraulic type
• Table traverse speed .......... 2-157 IPM
• Table swiveling angle (Counterclockwise/Clockwise) .......... 12.5° - 5° / 10° - 3°
• Workhead .......... Combination live + dead
• Workhead center .......... MT#4/A2-5 Mounting nose
• No. of spindle speeds .......... Infinitely variable
• Spindle speed range .......... 16-500 RPM
• Footstock center .......... MT#4
• Footstock spindle stroke .......... 1"
• Wheel spindle motor .......... 5 HP
• Work spindle motor .......... 1 HP
• Hydraulic pump motor .......... 1 HP
• Wheel spindle bearing pump motor .......... 1/3 HP
• Coolant pump motor .......... 1/4 HP
• Hydraulic oil .......... 15.8 Gal.
• Wheel spindle lubricant .......... 3.2 Gal.
• Coolant .......... 40 Gal.
• Floorspace req. (width x depth) .......... 108" x 71"
• Net weight .......... 5,100 Lbs.
