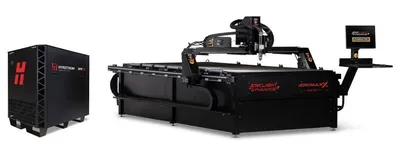

New Arc Max X 6×12 HD CNC Plasma Table

Specifications:
• Cutting envelope:.......... 73" x 149" x 6.5"
• Overall dimensions:.......... 100.5”L x 167”W x 60”H
• Weight capacity:.......... 8,978 pounds
• Frame:.......... Reinforced and Fully Welded Steel
• Positioning Accuracy:.......... .001"
• Dimensions at base:.......... 82" x 157"
• Water pan capacity:.......... 420 Gallons
• Table Power:.......... 110V / 15-20A
• Overall Weight:.......... 3500 pounds
• Controller:.......... Flashcut CNC

With Hypertherm XPR170:
• Cut quality.......... X-definition HD
• Gas console.......... Core plus (standard)
• Plate capacity.......... Yes
• Weld ready parts.......... Yes
• Motors.......... High speed servo
• Drive system.......... Helical rack & pinion
• Linear rails.......... Hiwin® 20mm
• Gantry.......... Aircraft-grade aluminum
• Rapids.......... 1,500 IPM
• Water table depth.......... 8”
• Controller.......... Flashcut CNC (HD specific)
• Integrated CAD/CAM/CNC.......... Yes
• Stingray® THC.......... Yes
• Smart 360™ hole cutting.......... Yes
• Automatic nesting.......... Yes
• Work-piece alignment.......... Yes
• Ohmic & mechanical touch-off.......... Yes
• 3D cutting simulation.......... Yes
• CNC automatic lead-in on restart.......... Yes
• Oxy-fuel compatible.......... Yes
• 3-day onsite installation & training.......... Yes
• Ships 98% assembled.......... Yes
• Lifetime technical support.......... Yes

Select a Gas Console:
• Core Console (base)
• VWI Console
• OptiMix Console

Add a Hypertherm Powermax 45 SYNC:
• Add a Hypertherm 45 SYNC to your Arc Max X for dedicated thin gauge cutting, fine detail work, and part marking. The 45 SYNC complements the XPR 170 — giving you a purpose-built tool for lighter material and precision applications without swapping consumables on your HD system. Requires Dual Torch Upgrade.
• Hypertherm 45 SYNC
• Dual Torch Upgrade

Select Options:
• Collision Detection and Bevel Cutting System
• Laser Plate Alignment System
• Cool Flow Recirculation System
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Flashcut Hand Pendant Controller.
• Touch Screen Monitor
• Cabinet Cover
• Mobile Cabinet
• Plasma Rover
• Green Guard Rust Blocker
• CNC Table Grease Gun Maintenance Bundle Kit

Select Accessories:
• OxyFuel Cutting System
• Plate Engraver
• Logic Board Digitizing System (44" x 60")

Select an Preventative Maintenance Plan:
• Keep your Arc Max X cutting at its best with our onsite preventative maintenance program. A trained technician visits every 6 months to inspect, tune, and service your system — so you stay productive and avoid costly downtime. All Arc Max X systems include 3-day onsite setup and training standard.
• 1 Year Preventative Maintenance Program
• 2 Year Preventative Maintenance Program

Select an Extended Warranty:
• All systems include our standard warranty. These will extend your warranty an additional 1 or 2 years. Platinum includes overnight shipping, Gold includes 2-day shipping and Silver includes priority (3-5 day) shipping on replacement parts.
• Platinum 1 Year Extended Warranty
• Platinum 2 Year Extended Warranty
• Gold 1 Year Extended Warranty
• Gold 2 Year Extended Warranty
• Silver 1 Year Extended Warranty
• Silver 2 Year Extended Warranty

Welded Unitized Steel Frame:
• The Arc Max X is built on a fully welded unitized steel frame — not bolted together like most production-grade plasma tables. The frame is stress-relieved and precision-machined after welding, providing the rigid foundation that HD cutting accuracy demands. No flex, no drift, no vibration-induced quality issues — just a platform that holds tolerance shift after shift.
• Fully welded construction — not bolted or assembled from modular sections
• Stress-relieved and precision-machined after welding for dimensional stability
• Engineered to support the rigidity requirements of X-Definition HD plasma cutting
• Reduces vibration that compromises cut quality and edge finish

Aircraft-Grade Aluminum Gantry:
• The gantry is machined from aircraft-grade aluminum — strong enough to maintain precise torch positioning at high travel speeds, light enough to minimize inertia during rapid direction changes. The result is consistent cut quality across the full cutting envelope, even in demanding production cycles.
• Machined from aircraft-grade aluminum for an optimal strength-to-weight ratio
• Reduced gantry mass means faster acceleration and deceleration without sacrificing rigidity
• Maintains precise torch positioning across the full length of the cutting bed
• Designed to perform consistently in high-duty-cycle production environments

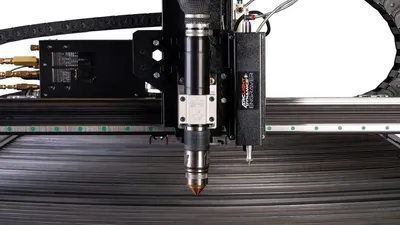

Hiwin® 20mm Linear Rails:
• Hiwin® 20mm precision linear rails are the industry benchmark for CNC motion accuracy. On the Arc Max X, they provide smooth, low-friction travel across both axes — maintaining tight tolerances cut after cut without the wear and slop that degrades quality over time on lesser rail systems.
• Hiwin® 20mm linear rails on both X and Y axes
• Industry-standard precision components used in high-performance CNC applications worldwide
• Low-friction travel protects positioning accuracy at full production speeds
• Significantly more durable than v-groove or round rail alternatives found on lower-cost tables

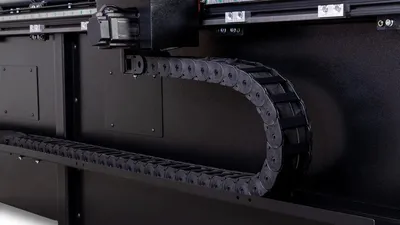

Servo Motors:
• The Arc Max X is driven by servo motors on both axes, delivering the speed, torque, and precise positioning that HD plasma cutting demands. Unlike stepper-based systems, servo motors provide real-time feedback and correction — maintaining accuracy at full production speeds and through rapid direction changes.
• Servo motors on both X and Y axes for full closed-loop motion control
• Real-time position feedback continuously corrects for any deviation during cutting
• Supports high-speed rapid travel for faster cycle times between cuts
• Delivers the precise, responsive motion control that X-Definition HD quality requires

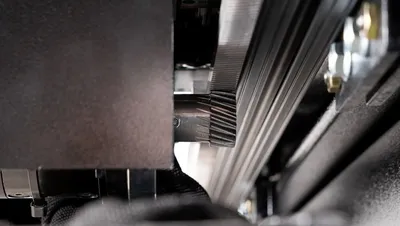

Helical Rack & Pinion Drive:
• The Arc Max X uses precision helical rack and pinion drives on both axes — not the standard spur gear racks found on entry-level tables. The angled tooth engagement delivers smoother motion, reduced backlash, and more consistent positioning at full production speeds, protecting cut quality over the long life of the machine.
• Helical rack and pinion on both axes — the drive system of choice for industrial HD plasma tables
• Angled tooth geometry creates smoother, quieter motion than straight-cut spur gear racks
• Reduced backlash means tighter positioning accuracy and more consistent cut geometry
• More durable wear pattern extends the service life of the drive system under heavy production use

Extra-Deep Water Table:
• The Arc Max X features an 8-inch deep water table — significantly deeper than the standard 4–5 inch tables found on most CNC plasma tables. More water depth means better heat absorption, more effective fume suppression, and a cleaner shop environment during high-volume production cutting.
• 8-inch deep water table for superior heat and fume management
• Deeper water volume absorbs more heat from cutting, reducing warping on thinner materials
• Suppresses smoke and particulate at the source, improving operator visibility and air quality
• Longer intervals between water changes during high-volume production runs

Ships 98% Assembled:
• The Arc Max X arrives 98% assembled and fully tested — not in a crate of parts that takes days to put together. Combined with your included 3-day onsite installation and training, you’re up and cutting faster and with the confidence that your system was set up right from the start.
• Ships 98% assembled and production-tested before leaving the facility
• Minimizes installation time and gets your shop cutting faster
• Includes 3-day onsite installation and training with every Arc Max X
• Reduces the risk of setup errors that affect long-term performance and cut quality

Lifetime Arclight Support:
• Every Arc Max X is backed by lifetime technical support from Arclight Dynamics. When you have a question or an issue, you’re talking to the people who built your machine — not a general call center. It’s support that scales with your shop for the life of the table.
• Lifetime technical support included with every Arc Max X — no expiration, no tiered plans
• Direct access to the Arclight Dynamics team who designed and built your machine
• Support covers software, hardware, cutting processes, and system optimization
• In-stock replacement parts ship within 24 hours to minimize downtime
