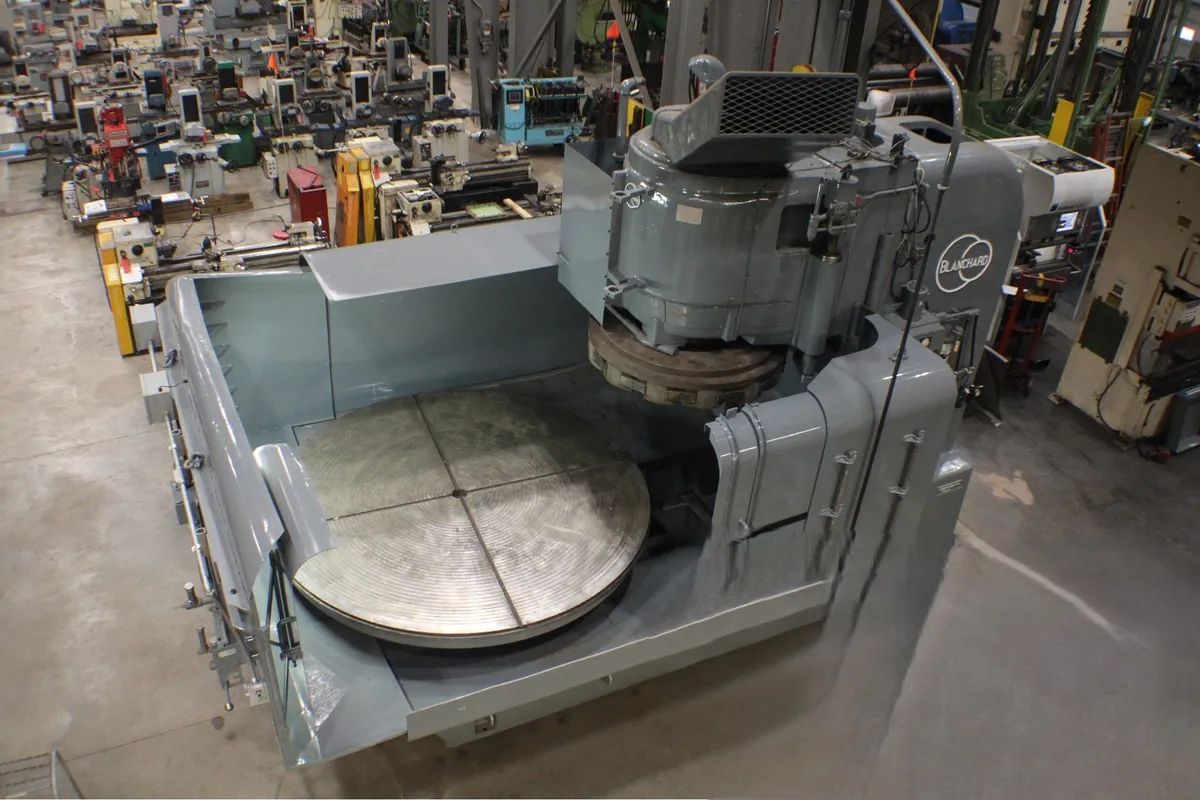

Used BLANCHARD 54-100 | GRINDERS, SURFACE, ROTARY TYPE (HORIZ. SPDL.), PLC & CNC

Specifications:
Chuck Size 100”
Max. Height over Chuck 24”
Max. Swing Diameter 128”
Max. Weight Capacity 30,000 lbs.
Chuck Pole Spacing 1-1/16”
Center Hole 4”
Grinding Wheel Diameter 54”
Chuck Segments 12-CD-54”, 11-¼”x 2-1/4”x6”
Wheel Speeds 270 RPM
Chuck Speeds 2.6, 4.1, 6.7, 10.2 RPM
Chuck Motor 1200 RPM, 60 Cycle
Table Traverse Motor 1200 RPM, 60 Cycle
Head Traverse Motor 900 RPM, 60 Cycle
Feed Motor 1800 RPM, 60 Cycle
Standard Grinding Horsepower 125 HP
Vertical Downfeed .004” – .080”/min
Max. Downfeed before Stop .200”
Footprint 131″ x 218″
Weight 92,000 lbs.
