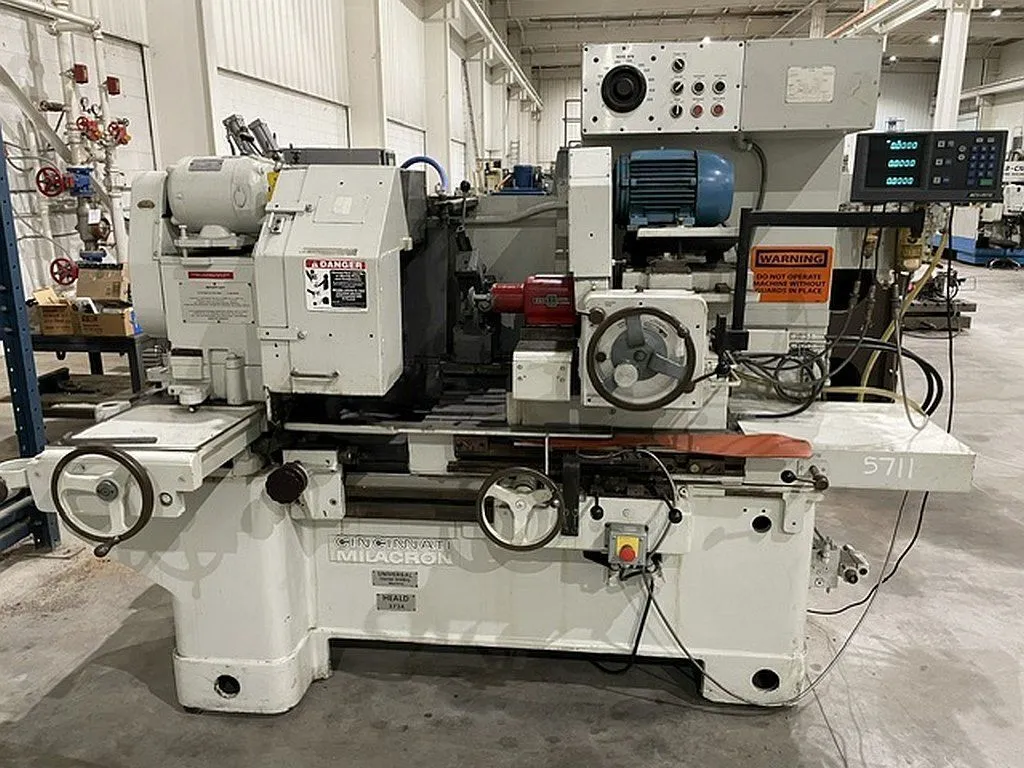

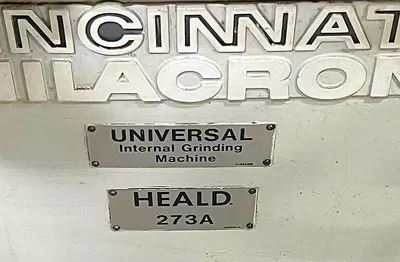

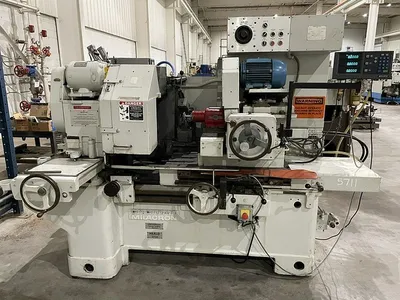

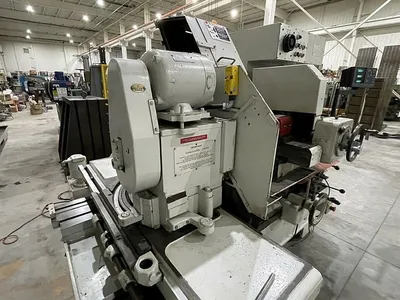

Heald 273A - Internal Grinder

New: 1987
Machines Features / Specifications:

*Extended Bed – Front of Wheelhead Dovetail to face of Workhead Flange: 42″ *4" Riser
Swing over Table: 28″
Swing, Work head Swiveled 90 degrees: 24″
Angular adjustment of Work head: 90 Degrees
Work head Cross Slide Travel: 11 1/2″
Power or Manual Table Travel: 20″ Max
• Wheel head Cross Slide Travel: 1 1/2″
• Table Speed Range: 0 to 18 FPM
• Rapid Traverse of Table: 18 FPM

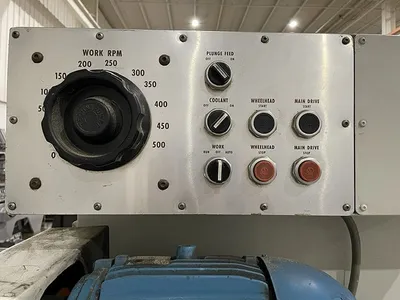

• Work head Speeds from 0 to 500 RPM, Variable Equipped with:
• Sine Bar Attachment

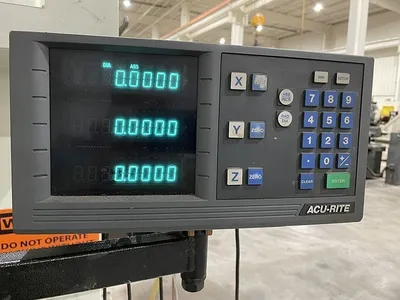

• Acu-Rite 3 Axis DRO
• Coolant System
• Extended Bed
• 4" Riser

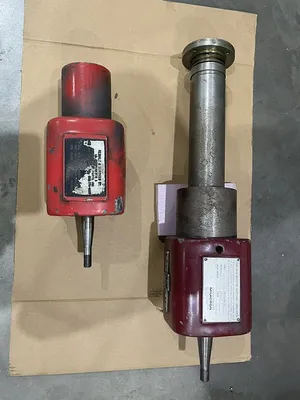

• (3) Red Head Grinding Spindles

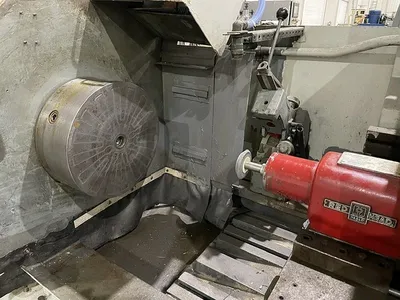

• 12” Mag Chuck
• Dressing Attachment
• Hydrostatic Ways
• Dimensions:
FB X RL – 62″ X 104″
Height: 77″
• Est. Weight: 7,000#
