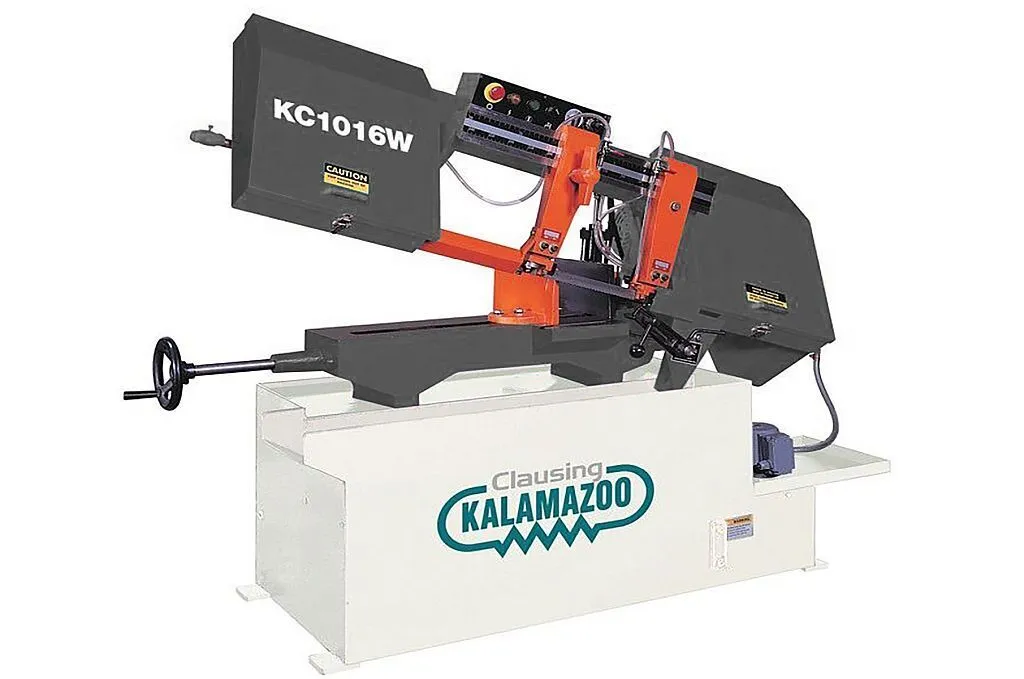

New Clausing Kalamazoo KC1016W1 Manual Horizontal Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
7 available
New
Discover the new Clausing Kalamazoo KC1016W1 Horizontal Band Saw. Featuring a 9" x 14.5" rectangular and 10" round cutting capacity, 1.5 hp motor, and 4 speed options up to 305 fpm. Efficient manual operations with built-in hydraulic and coolant systems.
Specifications:
• Machine Style..........Manual
• Drive Type..........Step Pulley Drive
• Style..........Horizontal Wet Cut
• Motor, 4 Speed Drive..........1 1/2 Hp 110v or 220v 1ph
• Band Wheel Diameter..........15” flanged, cast iron
• Blade..........1” x .035” x 11’
• Bed Height..........25”
• Blade Speeds – 4 Speed..........75, 121, 190, 305 fpm
• 90° Cutting Capacity
- Round..........10”
- Rectangular..........9” x 14.5”
• 45° Cutting Capacity
- Round..........9”
- Rectangular..........9” x 9”
• Length..........66”
• Depth..........28”
• Height (head-up)..........69”
• Height (head-down)..........41”
• Net Weight..........720 lbs.
• Shipping Weight..........885 lbs.
• Shipping Dimensions (L x W x H)..........68” x 30” x 45”
Machine Features:
• 1 ½ – 2 hp drive motors with magnetic starter and overload protection
• Magnetic starter with overload protection
• 4 speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
• Totally enclosed transmission
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Pan shaped base with built-in coolant and hydraulic system
• Cast iron bed
• Cast iron quick acting 0º – 45º vise with manual leadscrew clamping system
• Two additional bearing to support blade from the top
• Recirculating coolant system with application through both guides
• Blade brush
• Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
• Adjustable stock stop
• Simplified control switches mounted on saw head
• Anti-slip hand wheel
• Easy blade change with front access at waist level
• 1” wide blade
• Tools
• Operation and parts manual
• Two Year Limited Warranty
KC1016W1 – Motor, 4 Speed Drive1 1/2 Hp 110v or 220v 1ph, 10.0” x 16.0” Max Rectangular Capacity, 10” Round, Step Pulley Drive, 75, 121, 190, 305 SFPM Blade Speed, 2 Hp Drive Motor
Discover the new Clausing Kalamazoo KC1016W1 Horizontal Band Saw. Featuring a 9" x 14.5" rectangular and 10" round cutting capacity, 1.5 hp motor, and 4 speed options up to 305 fpm. Efficient manual operations with built-in hydraulic and coolant systems.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Manual Horizontal Bandsaws
Manual Horizontal Bandsaws comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level.
Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 9" |
| Rect-Cap (W) | 14.5" |
| Rounds-Cap | 10" |
| Power | 1.5 hp |
| Type (Auto, Manual, Semi) | Manual |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 11' |
| Dimensions | 68" x 30" x 45" |
| Weight | 720Lbs. |
Specifications:
• Machine Style..........Manual
• Drive Type..........Step Pulley Drive
• Style..........Horizontal Wet Cut
• Motor, 4 Speed Drive..........1 1/2 Hp 110v or 220v 1ph
• Band Wheel Diameter..........15” flanged, cast iron
• Blade..........1” x .035” x 11’
• Bed Height..........25”
• Blade Speeds – 4 Speed..........75, 121, 190, 305 fpm
• 90° Cutting Capacity
- Round..........10”
- Rectangular..........9” x 14.5”
• 45° Cutting Capacity
- Round..........9”
- Rectangular..........9” x 9”
• Length..........66”
• Depth..........28”
• Height (head-up)..........69”
• Height (head-down)..........41”
• Net Weight..........720 lbs.
• Shipping Weight..........885 lbs.
• Shipping Dimensions (L x W x H)..........68” x 30” x 45”
Machine Features:
• 1 ½ – 2 hp drive motors with magnetic starter and overload protection
• Magnetic starter with overload protection
• 4 speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
• Totally enclosed transmission
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Pan shaped base with built-in coolant and hydraulic system
• Cast iron bed
• Cast iron quick acting 0º – 45º vise with manual leadscrew clamping system
• Two additional bearing to support blade from the top
• Recirculating coolant system with application through both guides
• Blade brush
• Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
• Adjustable stock stop
• Simplified control switches mounted on saw head
• Anti-slip hand wheel
• Easy blade change with front access at waist level
• 1” wide blade
• Tools
• Operation and parts manual
• Two Year Limited Warranty
KC1016W1 – Motor, 4 Speed Drive1 1/2 Hp 110v or 220v 1ph, 10.0” x 16.0” Max Rectangular Capacity, 10” Round, Step Pulley Drive, 75, 121, 190, 305 SFPM Blade Speed, 2 Hp Drive Motor
