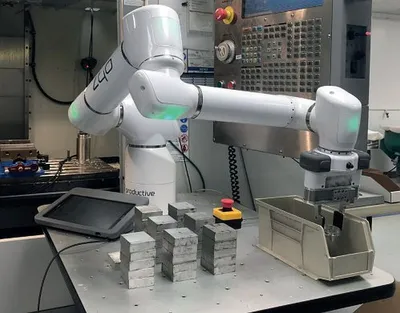

New OB7-Max 8 Collaborative Robot - CNC Tending Package
Have one to sell?
ConditionNew
1 available
New
Introducing the new 2025 OB7-Max 8 Collaborative Robot by PRODUCTIVE ROBOTICS. This state-of-the-art cobot offers a 7-axis design with 8 kg payload, 1.7m reach, and intuitive demonstration-based programming. ISO 10218-1 safety compliant, perfect for automation needs.
OB7 Max 8 Collaborative Robot
• Zero programming cobot with heavy payload capacity
• Designed and built in the USA with direct factory support
• 7-axis joints reach where 6-axis cobots can't.
• Set up in about an hour. Teach a job in minutes.
• Payload: 8 kg (17 lbs)
• Reach: 1.3 m (51.1”)
• Weight: 58 kg (127 lbs)
• Mounting Flange: 250 mm (9.8”)
• LATHE PACKAGE:
• PN FULL LATHE PACKAGE
• OB7, Stretch, Max 8, or Max 12
• ACC:RS-1 Stand
• ACC:AT1 Table
• ACC:PG2 Gripper (x2)
• ACC:DUAL GRIPPER ADAPTER OB7 Dual Gripper adapter
• ACC:I/O2 I/O version 2
• SPR:CBL-504 M12 5Pin A-Code male cable 5 Meter
• SPR:CBL-507 M12 5pin A-Code male Y-Splitterr (x2)
• ACC:AIR BLOW-OFF KIT Air Blow-Off Kit
• ACC:REMOTE RELAY SINGLE Remote interface relay (x3)
• ACC:PNEU-1 Pneumatic controller (x2)
• ACC:AIR HOSE 1/4” air hose / 25 ft
• Investment.......................................................................... P.O.R.
COMMON LATHE PACKAGE OPTIONS AND ACCESSORIES
• ACC:AIR BLOW-OFF KIT Air Blow-Off Kit
• SPR:CBL-503 M12 5Pin A-Code male cable 3 Meter
• SPR:CBL-504 M12 5Pin A-Code male cable 5 Meter
• SPR:CBL-505 M12 5Pin A-Code Extension cable 5 Meter
• SPR:CBL-506 M12 5Pin A-Code Female with pigtails - 1 meter
• SPR:CBL-507 M12 5pin A-Code male Y-Splitterr
• SPR:CBL-801 Handle I/O Accessory Cable
Control Computer:
• Specifications
• IP Rating: IP30
• Communications Hardware: Ethernet 100MB
• Protocols: Ethernet IP, TCP/IP, Modbus
• Power: 100-240 VAC 50-60 HZ
Zero programming tablet:
• Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
• Specifications
• IP Rating: IP41
• Connection: USB
• Dimensions: 10” x 5” x 1.5”
• Cable: 5 meters (16 ft)
• USA direct factory support
• Fast online support by our welding and robotics experts at our US factory. We speak your language.
Introducing the new 2025 OB7-Max 8 Collaborative Robot by PRODUCTIVE ROBOTICS. This state-of-the-art cobot offers a 7-axis design with 8 kg payload, 1.7m reach, and intuitive demonstration-based programming. ISO 10218-1 safety compliant, perfect for automation needs.
T.R. Wigglesworth Machinery Company is proud to offer the latest generation of Productive Robots.
OB7 ROBOTS ARE THE NEWEST GENERATION OF COLLABORATIVE ROBOTS
PROVIDING UNMATCHED AUTOMATION PRODUCTIVITY, FLEXIBILITY AND ACCURACY FOR BUSINESSES OF ALL SIZES.
OB7 robots bring home the competitive edge for manufacturers
across all industries including defense, aerospace, electronics,
medicine, food, and others. By providing consistent
repeatable operation in production tasks, OB7 eliminates
errors, reduces scrap, and improves throughput. From
high volume production to short runs and high mix/low
volume jobs, OB7 automates any task you throw at it.
With zero complicated software programming, automation
is fast and simple. Your existing staff can teach OB7
to automate in minutes.
Automation for all
OB7 collaborative robots (cobots) provide high quality, safe automation for small and large businesses alike, for practically any task that needs to be repeated—including machine tending, dispensing, finishing processes, and far more.
By ensuring that every second counts between cycles and processes while maintaining total accuracy, OB7 will provide fast gains in throughput, productivity, and consistency in production.
Zero programming means no coding, classes or special training needed. Anyone can teach OB7 to do hundreds of complex automation jobs simply and quickly. Just ‘show’ OB7 and it learns.
Imperial
| # Axis | 7 |
| Payload | 17.6 lb |
| Horizontal Reach | 66.929" |
| Reach | 1.7m |
| Repeatability | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s |
| IP Class | 61 |
| Joint Ranges | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant |
| Robot Mounting Flange Diameter | 250 mm: OB7-Max |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) |
| Mount | Vertical: table/ceiling &/or Horizontal: wall |
| Weight | 128 lbs. / 58 kgs. |
OB7 Max 8 Collaborative Robot
• Zero programming cobot with heavy payload capacity
• Designed and built in the USA with direct factory support
• 7-axis joints reach where 6-axis cobots can't.
• Set up in about an hour. Teach a job in minutes.
• Payload: 8 kg (17 lbs)
• Reach: 1.3 m (51.1”)
• Weight: 58 kg (127 lbs)
• Mounting Flange: 250 mm (9.8”)
• LATHE PACKAGE:
• PN FULL LATHE PACKAGE
• OB7, Stretch, Max 8, or Max 12
• ACC:RS-1 Stand
• ACC:AT1 Table
• ACC:PG2 Gripper (x2)
• ACC:DUAL GRIPPER ADAPTER OB7 Dual Gripper adapter
• ACC:I/O2 I/O version 2
• SPR:CBL-504 M12 5Pin A-Code male cable 5 Meter
• SPR:CBL-507 M12 5pin A-Code male Y-Splitterr (x2)
• ACC:AIR BLOW-OFF KIT Air Blow-Off Kit
• ACC:REMOTE RELAY SINGLE Remote interface relay (x3)
• ACC:PNEU-1 Pneumatic controller (x2)
• ACC:AIR HOSE 1/4” air hose / 25 ft
• Investment.......................................................................... P.O.R.
COMMON LATHE PACKAGE OPTIONS AND ACCESSORIES
• ACC:AIR BLOW-OFF KIT Air Blow-Off Kit
• SPR:CBL-503 M12 5Pin A-Code male cable 3 Meter
• SPR:CBL-504 M12 5Pin A-Code male cable 5 Meter
• SPR:CBL-505 M12 5Pin A-Code Extension cable 5 Meter
• SPR:CBL-506 M12 5Pin A-Code Female with pigtails - 1 meter
• SPR:CBL-507 M12 5pin A-Code male Y-Splitterr
• SPR:CBL-801 Handle I/O Accessory Cable
Control Computer:
• Specifications
• IP Rating: IP30
• Communications Hardware: Ethernet 100MB
• Protocols: Ethernet IP, TCP/IP, Modbus
• Power: 100-240 VAC 50-60 HZ
Zero programming tablet:
• Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
• Specifications
• IP Rating: IP41
• Connection: USB
• Dimensions: 10” x 5” x 1.5”
• Cable: 5 meters (16 ft)
• USA direct factory support
• Fast online support by our welding and robotics experts at our US factory. We speak your language.
