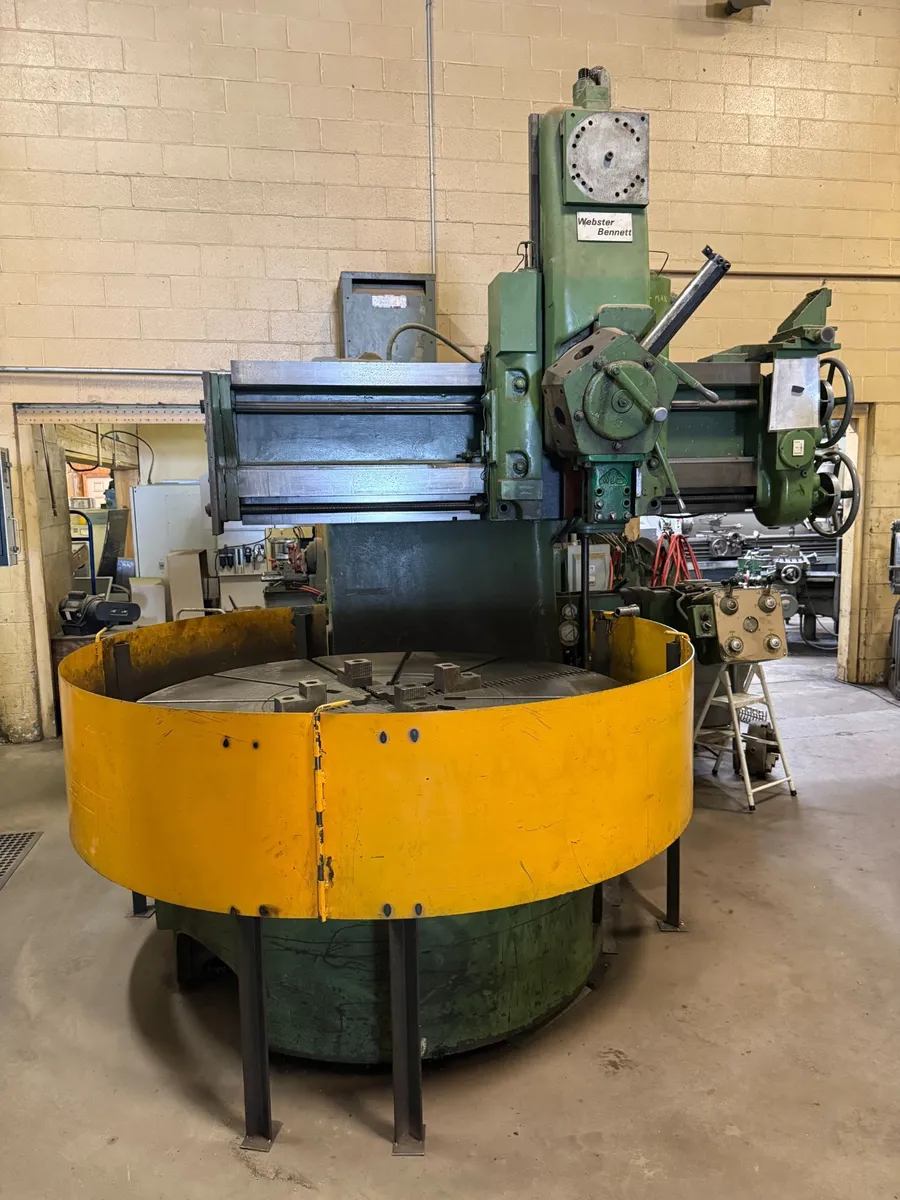

Webster & Bennett 72" Vertical Boring Mill
Have one to sell?
ConditionUsed
1 available
WEBSTER & BENNETT 72" Vertical Boring Mill, Model 72, 1970. Features: 72" table diameter, 84" swing, 24.5" work height under rail, 30 hp power. Ideal for precision machining tasks. Used condition, Under power
SPECIFICATIONS:
DIAMETER OF CHUCK................................ 72"
ADMITS IN DIAMETER............................... 76"
ADMITS IN HEIGHT UNDER TURRET.................... 35"
ADMITS IN HEIGHT UNDER CROSS SLIDE............... 24"
DIAMETER OF SPINDLE BORE......................... 3 1/4"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE...... 36 1/2"
DISTANCE, CHUCK CENTRE TO FRONT OF CROSS SLIDE... 21 1/8"
SPINDLE SPEEDS (12).............................. 83 - 125 RPM
MAIN MOTOR....................................... 20 HP
APPROX. WEIGHT................................... 22,352 LBS
APPROX. DIMENSIONS............................... 103" X 130"
TOTAL HEIGHT REQUIRED............................ 119"
Equipped with:
Tool Holder
Boring Bar
Chuck Jaws
WEBSTER & BENNETT 72" Vertical Boring Mill, Model 72, 1970. Features: 72" table diameter, 84" swing, 24.5" work height under rail, 30 hp power. Ideal for precision machining tasks. Used condition, Under power
Imperial
| Table Dia | 72" |
| Swing | 84" |
| Work Ht-U/R | 24.5" |
| Power | 30 hp |
SPECIFICATIONS:
DIAMETER OF CHUCK................................ 72"
ADMITS IN DIAMETER............................... 76"
ADMITS IN HEIGHT UNDER TURRET.................... 35"
ADMITS IN HEIGHT UNDER CROSS SLIDE............... 24"
DIAMETER OF SPINDLE BORE......................... 3 1/4"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE...... 36 1/2"
DISTANCE, CHUCK CENTRE TO FRONT OF CROSS SLIDE... 21 1/8"
SPINDLE SPEEDS (12).............................. 83 - 125 RPM
MAIN MOTOR....................................... 20 HP
APPROX. WEIGHT................................... 22,352 LBS
APPROX. DIMENSIONS............................... 103" X 130"
TOTAL HEIGHT REQUIRED............................ 119"
Equipped with:
Tool Holder
Boring Bar
Chuck Jaws
