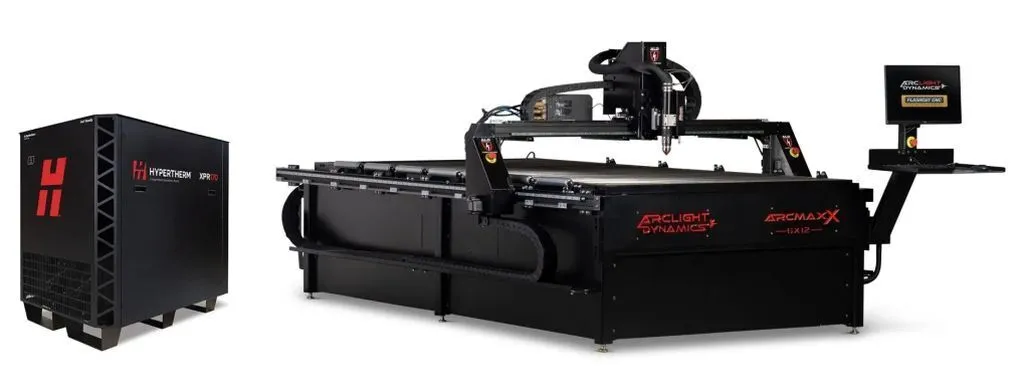

Arc Max X 6x12 HD CNC Plasma Table with Hypertherm XPR300
Have one to sell?
ConditionNew
New
The Flashcut CNC software interface is simple and easy to run allowing anyone to walk up to the machine a cut a part with minimal effort and training. In minutes you can set up the machine to design and cut parts, allowing the operator to complete other projects.
The Unlimited Series of CNC Plasma Tables are designed specifically to be integrated with a Hypertherm MAXPRO200 or an Oxy-Fuel Torch.
An Arclight Dynamics CNC plasma table will be, hands down, the best investment for your shop and cost less than a part time employee. In addition, your new CNC Plasma Table will come with a full team of Arclight support technicians (Arc Angels) to assist you every step of the way.
Each Arc Max Unlimited CNC Plasma Table comes will an industry leading limited lifetime warranty on the table frame, 1 year warranty on its controller and motion control system, and a 1 year warranty on the dedicated computer.
We proudly build our CNC Plasma Tables in the United States. We believe strongly in honest business transparency without hidden fees or recurring charges.
Specifications:
• Cutting envelope..........149" x 73" x 6.5"
• Overall dimensions..........167” x 100.5” x 60”
• Weight capacity..........8,978 pounds
• Frame..........Reinforced and Fully Welded Steel
• Positioning Accuracy..........(.001")
• Dimensions at base..........82" x 157"
• Water pan capacity..........420 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........3500 pounds
• Controller..........Flashcut CNC
Features:
• Plate Capacity..........3 inch plate thickness
• MaxPro 200 Compatibility..........Yes
• Oxy-Fuel Compatibility..........Yes
• Slat Depth..........4.5 inches
• Controller..........Flashcut CNC
• Integrated CAD/CAM/CNC..........Yes
• Automatic Nesting Software..........Yes
• Work-Piece Alignment..........Yes
• Rapids..........800 IPM
• Motors..........Nema 34- 940 oz Stepper
• Motor Cabling..........XLR Quick Connectors
• Laser Alignment..........Optional
• Collision Detection..........System Ready
• Hole Cutting..........Smart 360® Hole Cutting Technology
• Serial Communication..........Yes
• Easy CAD/Image Import..........Yes
• CAD Error Fix Tool..........Yes
• CAD Feature Welding Tool..........Yes
• CAD-DXF Export..........Yes
• CAM 3D Cutting Simulation..........Yes
• CNC-THC Performance History Chart..........Yes
• CNC Automated Remanant Cut off..........Yes
• Ohmic & Mechanical Touch-Off..........Both
• CNC Automatic Lead-in on Restart..........Yes
• Includes Hypertherm XPR300 with Core Plus gas console, plus 3-day onsite installation and training.
OPTIONS:
1. Select a Gas Console -
The Arc Max X comes standard with the Core Plus Gas Console and Hypertherm XPR 300 X-Definition HD plasma cutting system. The console determines your gas options, which directly affects your cutting capability on stainless steel and aluminum. All four consoles deliver full X-Definition cut quality on mild steel — the difference is non-ferrous capability. You can only *select one* of the below options.
• Core Plus Console (Standard)..........Included
• Core Console (base)..........(-$2,000)
2. Add a Hypertherm Powermax 45 SYNC
Add a Hypertherm 45 SYNC to your Arc Max X for dedicated thin gauge cutting, fine detail work, and part marking. The 45 SYNC complements the XPR 300 — giving you a purpose-built tool for lighter material and precision applications without swapping consumables on your HD system. Requires Dual Torch Upgrade.
• Hypertherm 45 SYNC (+$3,710.00)
• Dual Torch Upgrade (+$1,735.00)
3. Select Options
• XPR300 Mild steel consumables starter kit (+$1,410.00)
• XPR300 Core console non-ferrous consumables starter kit (+$1,660.00)
• Collision Detection and Bevel Cutting System (+$750.00)
• Laser Plate Alignment System (+$750.00)
• Cool Flow Recirculation System (+$550.00)
• Tsunami Regenerative Air Dryer System (+$1,875.00)
• Air Filtration (+$860.00)
• Flashcut Hand Pendant Controller (+$750.00)
• Touch Screen Monitor (+$700.00)
• Cabinet Cover (+$175.00)
• Mobile Cabinet (+$750.00)
• Plasma Rover (+$350.00)
• Green Guard Rust Blocker (+$198.00)
• CNC Table Grease Gun Maintenance Bundle Kit (+$175.00)
4. Select Accessories
CNC Plasma Table Accessories help increase your capabilities.
• OxyFuel Cutting System (+$4,995.00)
• Plate Engraver (+$1,900.00)
• Logic Board Digitizing System (44" x 60") (+$4,575.00)
5. Select A La Carte Flashcut Software Upgrades
Optional Upgrades for the Flashcut CNC System. Select options A La Carte.
• V10 FC Chain and Bridge Cutting Software (+$500.00)
• V10 FC Common Line Cutting Software (+$500.00)
• V10 FC Job Costing & Nesting Report Software (+$750.00)
• V10 FC Remnant Support Software (+$1,500.00)
• V10 FC Collision Avoidence (+$500.00)
• V10 FC Advanced G-code File Management (+$500.00)
6. Select Premium Bundled Flashcut Software Upgrades
Optional bundled upgrades for the Flashcut CNC System.
• V10 FC Flashcut CNC Premium Bundle (No Remnant Support) (+$2,995.00)
• V10 FC Flashcut CNC Premium Bundle With Remnant Support (+$3,995.00)
7. Select an Preventative Maintenance Plan
Keep your Arc Max X cutting at its best with our onsite preventative maintenance program. A trained technician visits every 6 months to inspect, tune, and service your system — so you stay productive and avoid costly downtime. All Arc Max X systems include 3-day onsite setup and training standard.
• 1 Year Preventative Maintenance Program (+$10,000.00)
• 2 Year Preventative Maintenance Program (+$18,000.00)
8. Select an Extended Warranty
All systems include our standard warranty. These will extend your warranty an additional 1 or 2 years. Platinum includes overnight shipping, Gold includes 2-day shipping and Silver includes priority (3-5 day) shipping on replacement parts.
• Platinum 1 Year Extended Warranty (+$1,800.00)
• Platinum 2 Year Extended Warranty (+$2,600.00)
• Gold 1 Year Extended Warranty (+$1,500.00)
• Gold 2 Year Extended Warranty (+$2,300.00)
• Silver 1 Year Extended Warranty (+$1,000.00)
• Silver 2 Year Extended Warranty (+$1,800.00)
Includes Hypertherm XPR300 with Core Plus gas console, plus 3-day onsite installation and training.
