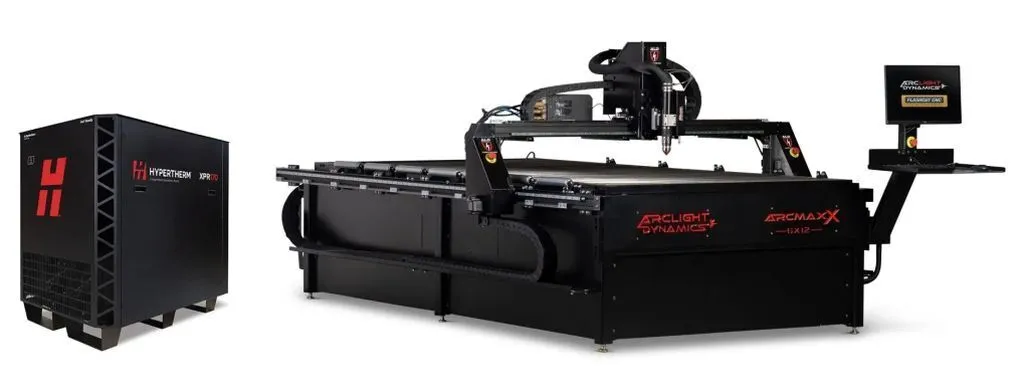

Arc Max X 5x10 HD CNC Plasma Table with Hypertherm XPR170 "In Stock Now"

Specifications:
• Cutting envelope..........120" x 60" x 6.5"
• Overall dimensions..........144” x 88” x 60”
• Weight capacity..........8,978 pounds
• Frame..........Reinforced and Fully Welded Steel
• Positioning Accuracy..........(.001")
• Dimensions at base..........82" x 157"
• Water pan capacity..........420 Gallons
• Table Power..........110V / 15-20A
• Overall Weight..........3500 pounds
• Controller..........Flashcut CNC

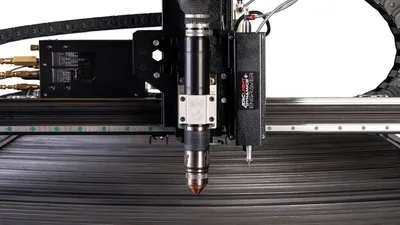

High-Definition (HD) Plasma: An Arc Max X system featuring a Hypertherm XPR170 or XPR300 brings your finished part tolerances down to a ±0.010 inches to ±0.015 inches. This system delivers weld-ready, laser-like quality parts with virtually zero bevel.

Features:
• Plate Capacity..........3 inch plate thickness
• MaxPro 200 Compatibility..........Yes
• Oxy-Fuel Compatibility..........Yes
• Slat Depth..........4.5 inches
• Controller..........Flashcut CNC
• Integrated CAD/CAM/CNC..........Yes
• Automatic Nesting Software..........Yes
• Work-Piece Alignment..........Yes
• Rapids..........800 IPM
• Motors..........Nema 34- 940 oz Stepper
• Motor Cabling..........XLR Quick Connectors
• Laser Alignment..........Optional
• Collision Detection..........System Ready
• Hole Cutting..........Smart 360® Hole Cutting Technology
• Serial Communication..........Yes
• Easy CAD/Image Import..........Yes
• CAD Error Fix Tool..........Yes
• CAD Feature Welding Tool..........Yes
• CAD-DXF Export..........Yes
• CAM 3D Cutting Simulation..........Yes
• CNC-THC Performance History Chart..........Yes
• CNC Automated Remanant Cut off..........Yes
• Ohmic & Mechanical Touch-Off..........Both
• CNC Automatic Lead-in on Restart..........Yes

OPTIONS:
1. Select a Gas Console -

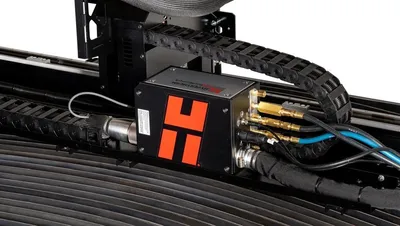

The Arc Max X comes standard with the Core Plus Gas Console and Hypertherm XPR 300 X-Definition HD plasma cutting system. The console determines your gas options, which directly affects your cutting capability on stainless steel and aluminum. All four consoles deliver full X-Definition cut quality on mild steel — the difference is non-ferrous capability. You can only *select one* of the below options.
• Core Plus Console (Standard)..........Included
• Core Console (base)..........(-$2,000)

2. Add a Hypertherm Powermax 45 SYNC
Add a Hypertherm 45 SYNC to your Arc Max X for dedicated thin gauge cutting, fine detail work, and part marking. The 45 SYNC complements the XPR 300 — giving you a purpose-built tool for lighter material and precision applications without swapping consumables on your HD system. Requires Dual Torch Upgrade.
• Hypertherm 45 SYNC (+$3,710.00)
• Dual Torch Upgrade (+$1,735.00)

3. Select Options
• XPR300 Mild steel consumables starter kit (+$1,410.00)
• XPR300 Core console non-ferrous consumables starter kit (+$1,660.00)
• Collision Detection and Bevel Cutting System (+$750.00)
• Laser Plate Alignment System (+$750.00)
• Cool Flow Recirculation System (+$550.00)
• Tsunami Regenerative Air Dryer System (+$1,875.00)
• Air Filtration (+$860.00)
• Flashcut Hand Pendant Controller (+$750.00)
• Touch Screen Monitor (+$700.00)
• Cabinet Cover (+$175.00)
• Mobile Cabinet (+$750.00)
• Plasma Rover (+$350.00)
• Green Guard Rust Blocker (+$198.00)
• CNC Table Grease Gun Maintenance Bundle Kit (+$175.00)

4. Select Accessories
CNC Plasma Table Accessories help increase your capabilities.
• OxyFuel Cutting System (+$4,995.00)
• Plate Engraver (+$1,900.00)
• Logic Board Digitizing System (44" x 60") (+$4,575.00)
5. Select A La Carte Flashcut Software Upgrades
Optional Upgrades for the Flashcut CNC System. Select options A La Carte.
• V10 FC Chain and Bridge Cutting Software (+$500.00)
• V10 FC Common Line Cutting Software (+$500.00)
• V10 FC Job Costing & Nesting Report Software (+$750.00)
• V10 FC Remnant Support Software (+$1,500.00)
• V10 FC Collision Avoidence (+$500.00)
• V10 FC Advanced G-code File Management (+$500.00)
6. Select Premium Bundled Flashcut Software Upgrades
Optional bundled upgrades for the Flashcut CNC System.
• V10 FC Flashcut CNC Premium Bundle (No Remnant Support) (+$2,995.00)
• V10 FC Flashcut CNC Premium Bundle With Remnant Support (+$3,995.00)
7. Select an Preventative Maintenance Plan
Keep your Arc Max X cutting at its best with our onsite preventative maintenance program. A trained technician visits every 6 months to inspect, tune, and service your system — so you stay productive and avoid costly downtime. All Arc Max X systems include 3-day onsite setup and training standard.
• 1 Year Preventative Maintenance Program (+$10,000.00)
• 2 Year Preventative Maintenance Program (+$18,000.00)
8. Select an Extended Warranty
All systems include our standard warranty. These will extend your warranty an additional 1 or 2 years. Platinum includes overnight shipping, Gold includes 2-day shipping and Silver includes priority (3-5 day) shipping on replacement parts.
• Platinum 1 Year Extended Warranty (+$1,800.00)
• Platinum 2 Year Extended Warranty (+$2,600.00)
• Gold 1 Year Extended Warranty (+$1,500.00)
• Gold 2 Year Extended Warranty (+$2,300.00)
• Silver 1 Year Extended Warranty (+$1,000.00)
• Silver 2 Year Extended Warranty (+$1,800.00)
