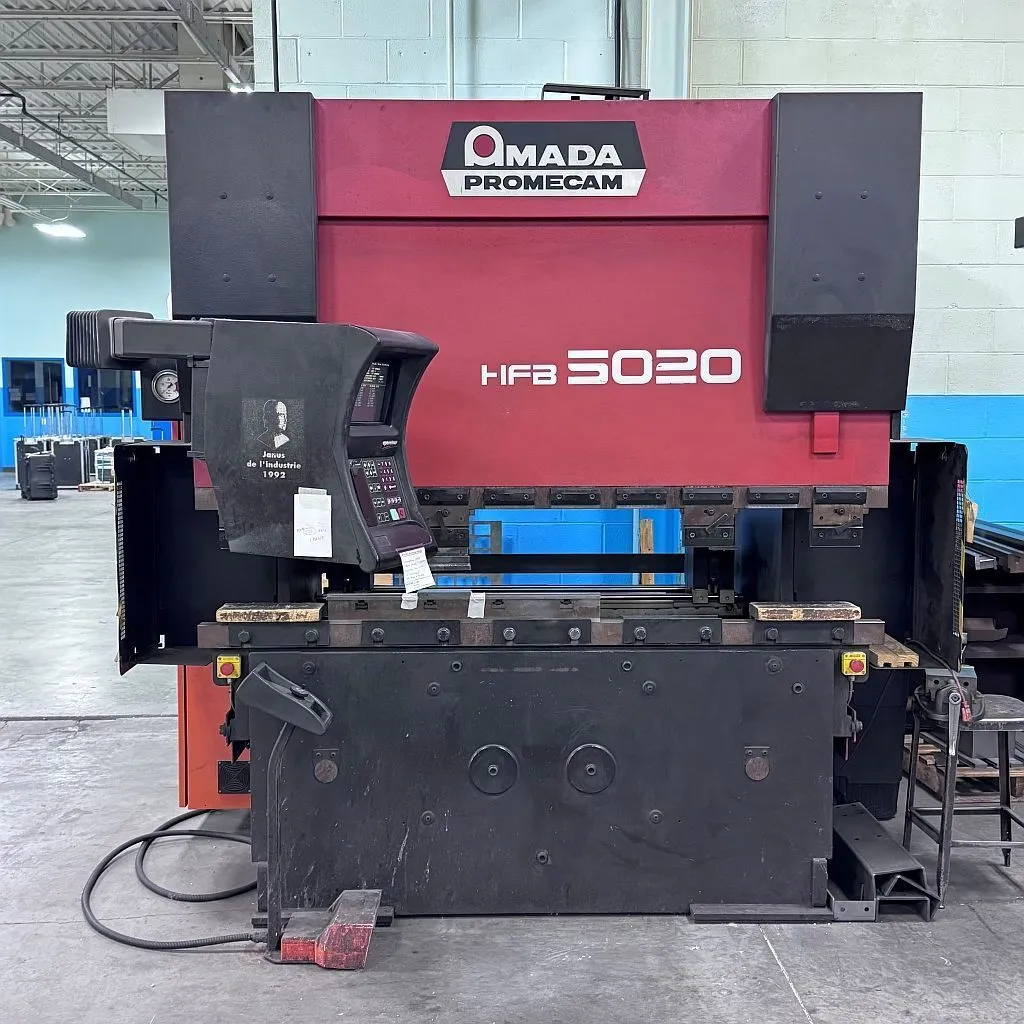

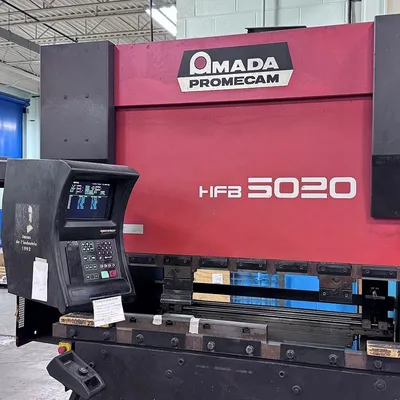

AMADA PROMECAM HFB 5020 — 55-Ton CNC Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available
Explore precision with the used 1996 AMADA PROMECAM HFB 5020, a 55-ton CNC hydraulic press brake. Features include 82.09″ max bending length, 18.50″ open height, and Amada Operateur CNC control. Power: 8.45 HP; Dimensions: 104″ × 85″ × 100″.
Tonnage Capacity: 55 US Tons
Maximum Bending Length: 82.09″
Distance Between Housings: 65.35″
Ram Stroke: 7.87″
Open Height / Daylight: 18.50″
Throat Depth: Approximately 16.1–16.5″
Working Height: 35.83″

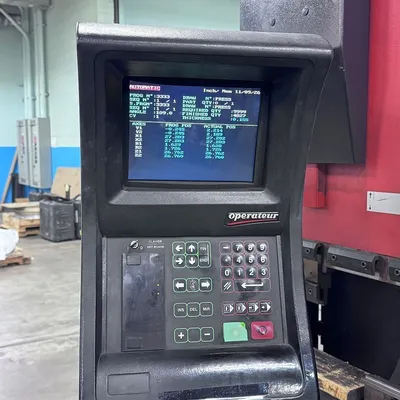

CNC Control: Amada Operateur
Approach Speed: 3.94″/sec
Bending Speed: 0.039–0.394″/sec
Return Speed: 0.039–3.15″/sec
Installed Power: 8.45 HP
Electrical: 230/460 V, 60 Hz, 3-Phase
Rated Current: 21.8/10.9 Amps
Overall Dimensions (L × D × H): Approximately 103.94″ × 85.24″ × 100″
Machine Weight: 10,362 lbs
Explore precision with the used 1996 AMADA PROMECAM HFB 5020, a 55-ton CNC hydraulic press brake. Features include 82.09″ max bending length, 18.50″ open height, and Amada Operateur CNC control. Power: 8.45 HP; Dimensions: 104″ × 85″ × 100″.
Imperial
| Tonnage | 242 T |
Tonnage Capacity: 55 US Tons
Maximum Bending Length: 82.09″
Distance Between Housings: 65.35″
Ram Stroke: 7.87″
Open Height / Daylight: 18.50″
Throat Depth: Approximately 16.1–16.5″
Working Height: 35.83″
CNC Control: Amada Operateur
Approach Speed: 3.94″/sec
Bending Speed: 0.039–0.394″/sec
Return Speed: 0.039–3.15″/sec
Installed Power: 8.45 HP
Electrical: 230/460 V, 60 Hz, 3-Phase
Rated Current: 21.8/10.9 Amps
Overall Dimensions (L × D × H): Approximately 103.94″ × 85.24″ × 100″
Machine Weight: 10,362 lbs
