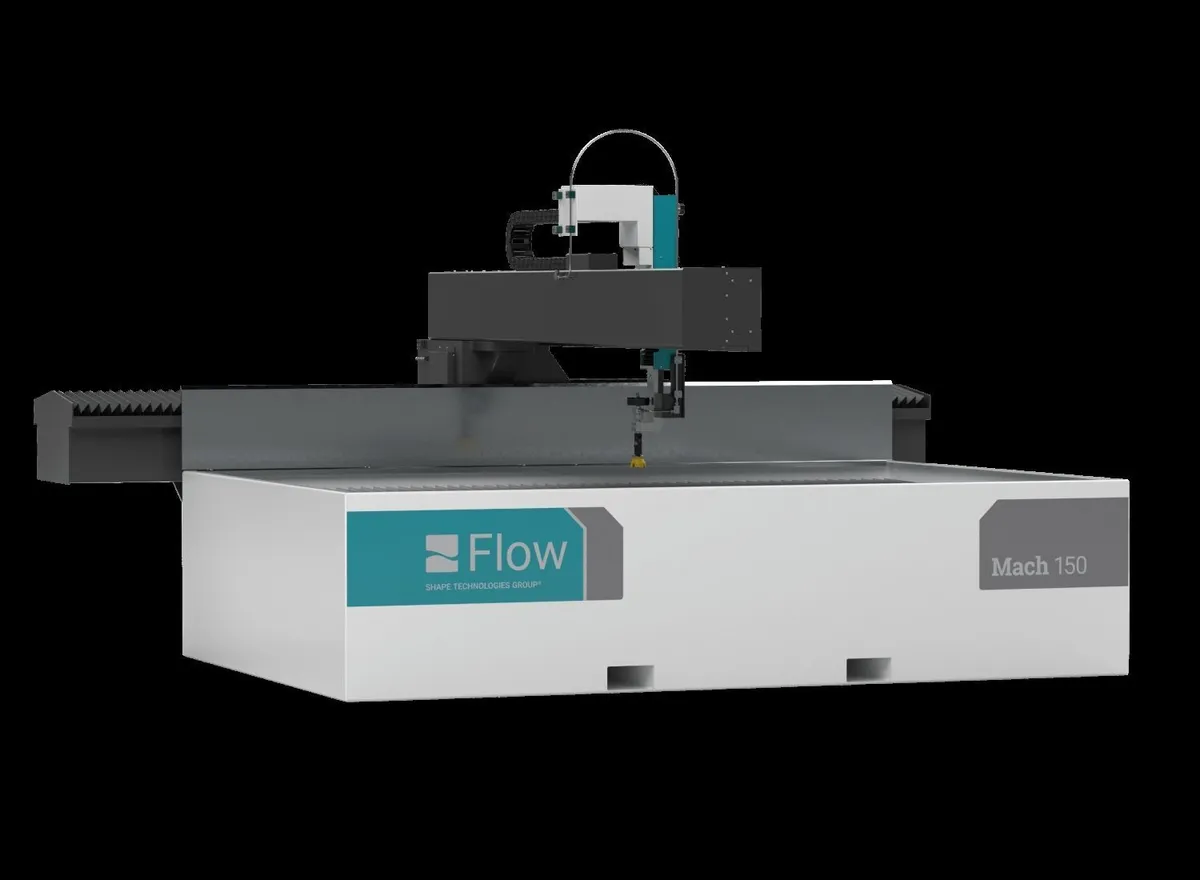

The Mach 150 is a best-in-class, turnkey waterjet system. With Flow exclusive technology, this system seamlessly combines practicality and reliability as the value-focused waterjet solution that can be counted on to get the job done efficiently, every time. The Mach 150 is the ideal choice for those just getting started in waterjet, prototyping, or those looking to scale in the future.
Rapid Traverse Maximum
• 400 in/min
• 10.16 m/min
Linear Positional Accuracy
• ± 0.002 in
• ± 0.051 mm
Repeatability
• ± 0.001 in
• ± 0.025 mm
Cutting Heads
• Pure Waterjet
• Standard Abrasive Waterjet
Secondary Z-Axis
• Not Available
Z-Axis Travel
• 8 in
• 203 mm
Pumps
HyPlex Prime
• 60,000 psi [4,150 bar]
• 30 hp, 50 hp
MotoJet
• 60,000 psi [4,150 bar]
• 30 hp, 50 hp
MotoJet X
• 60,000 psi [4,150 bar]
• 30 hp, 50 hp
Control
• Roll-Around Operator Station
Software Options
• FlowXpert Infinity
Work Envelope
• Mach 150 1313: 4'-3" x 4'-3"
• Mach 150 3020: 10' x 6'-6"
• Mach 150 4020: 13'-1" x 6'-6"
• Mach 150 1313: 1.3 m x 1.3 m
• Mach 150 3020: 3 m x 2 m
• Mach 150 4020: 4 m x 2 m
Acceleration
• 0.05 g
Ballbar Circularity
• ± 0.005 in
• ± 0.127 mm
The Mach 150 is a best-in-class, turnkey waterjet system. With Flow exclusive technology, this system seamlessly combines practicality and reliability as the value-focused waterjet solution that can be counted on to get the job done efficiently, every time. The Mach 150 is the ideal choice for those just getting started in waterjet, prototyping, or those looking to scale in the future.
The Mach 150 delivers scalability and versatility like never before. This value-priced, 2D solution allows you to cut virtually any material without the need for secondary processing, providing unmatched flexibility for your cutting needs – and for your business.
Meticulously engineered for seamless connection with all waterjet components, the Mach 150 is a completely integrated waterjet. Streamlining control, it consolidates the necessary functions into one easily accessible point, ensuring efficient and straightforward operation.
Rooted in exclusive Flow waterjet technology, the Mach 150 embodies simplicity, functionality, and reliability. Modern infrastructure, components, and robust all-steel construction enables state-of-the-art performance from the inside, out.
Designed with an operator-first approach, the Mach 150 features 3-sided accessibility, ergonomic table height, fork pockets, and thoughtful features for enhanced efficiency and operator comfort. Design the system that’s right for you, choosing from a wide variety of sizes and configurations to suit your requirements.
Rapid Traverse Maximum
• 400 in/min
• 10.16 m/min
Linear Positional Accuracy
• ± 0.002 in
• ± 0.051 mm
Repeatability
• ± 0.001 in
• ± 0.025 mm
Cutting Heads
• Pure Waterjet
• Standard Abrasive Waterjet
Secondary Z-Axis
• Not Available
Z-Axis Travel
• 8 in
• 203 mm
Pumps
HyPlex Prime
• 60,000 psi [4,150 bar]
• 30 hp, 50 hp
MotoJet
• 60,000 psi [4,150 bar]
• 30 hp, 50 hp
MotoJet X
• 60,000 psi [4,150 bar]
• 30 hp, 50 hp
Control
• Roll-Around Operator Station
Software Options
• FlowXpert Infinity
Work Envelope
• Mach 150 1313: 4'-3" x 4'-3"
• Mach 150 3020: 10' x 6'-6"
• Mach 150 4020: 13'-1" x 6'-6"
• Mach 150 1313: 1.3 m x 1.3 m
• Mach 150 3020: 3 m x 2 m
• Mach 150 4020: 4 m x 2 m
Acceleration
• 0.05 g
Ballbar Circularity
• ± 0.005 in
• ± 0.127 mm
