FLOW EchoJet Waterjet
Have one to sell?
ConditionNew
New

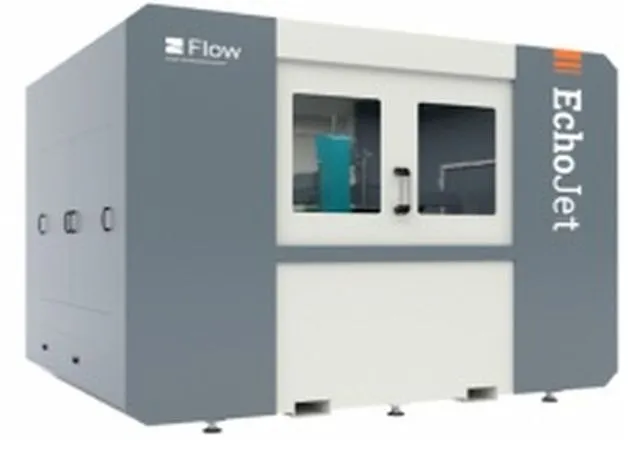

Compact Innovation.
The EchoJet is a unique, fully enclosed waterjet solution with a compact footprint and 5-axis cutting capabilities. This system is intentionally engineered to reduce noise, contain spray, and enhance operator efficiency, allowing added flexibility for placement on your floor and protection for the surrounding environment.
General Specifications - Imperial
• Rapid Traverse Maximum.......... 500 in/min
• Linear Positional Accuracy.......... ± 0.001 in
• Repeatability.......... ± 0.001 in
• Z-Axis Travel.......... 8 in
• Work Envelope.......... 4’-3” x 4’-3”
• Acceleration.......... 0.1 g
• Ballbar Circularity.......... ± 0.003 in
With the EchoJet, you can rely on Flow to partner with you for service, parts, training, and beyond. Flow has established a new industry standard with the Mach Series, providing complete solutions for machine systems, software, service, and support.
We are committed to providing you with the tools you need to keep your system running at its best. Professional training is available in both classroom settings, as well as on-site.
Includes Description
1 Precision Z-Axis Fully programmable servo-driven Z-Axis
Dynamic Waterjet® Automatic taper compensation to produce 2D parts with tight
tolerances at higher speeds
■Automatically adjusts for taper based on material type, speed
and desired edge finish
■PASER® 4 cutting system ■ New industry benchmark in cutting heads
■ 225 kg [500 lb] abrasive delivery system
2 FlowXpert Infinity™ ■ Roll-around control
■ FlowXpert Infinity™ software package
3 HyPlex® Prime pump ■ 30 hp, 4150 bar [60,000 psi]
■ Efficient operation in a compact design
■ Infinite variable pressure control
■ Modular design allows for a wide variety of options
4 CleanCut Material Support System Heavy-duty steel construction
5 Start-up services, installation, and training Provided by Flow-certified technicians, included at no charge if
installation is started within four (4) months of ship date (two
seats of training also included to be used within one year of
installation)
6 Warranty One (1) year warranty
7 WaterjetConnect IQ™ by Flow® ■ Identify system information for go-forward planning
■ Access data in real time from Flow
■ View information from anywhere and from any device
Additional Items Included Description
8 Technology Package
Includes Waterjet Connect iQ,
Waterjet Connect, FlowXPERT Infinity
and FlowCUT software
■ Two seats of upgraded FlowXpert Infinity CAD software
Waterjet Connect iQ platform with machine data, alarms, and
alerts
■
■ Two seats of FlowCUT Software
9 Laser Edge Finder Allows operator to precisely position waterjet at an exact position
on the work piece being cut
10 Low-profile fixture clamps Low-profile design provides greater mobility of the machine within
the cutting environment
Options Description Price USD
11 Pivot+ Automatic taper compensation to produce 2D and
3D parts with tight tolerances at higher speeds
■
■ Advanced beveling and 3D (5-Axis) capabilities
$ 24,500
12 MotoJet X 50hp intensifier pump ■ 50 hp, 4150 bar [60,000 psi]
■ Industry leading intensifier life
■ Engineered for greater uptime
Full enclosure with sound deadening and LED
diagnostics
■
$ 27,980
13 FlowCare Program covers 2,000 hours of pump runtime for
up to two (2) years
■
Intensifier Exchange Program
Flow performs all inspections, part replacement,
and repair at the Flow Service/Rebuild Center.
■
■ Includes all parts
■
$3,000 parts credit:
Recommendations provided at installation by Flow
Service Engineer based on estimated usage rates,
application, water quality, and other factors
■
■ Key Consumables¹ provided at installation
10% discount off published Flow Service rates for
life of program
■
■ Two (2) Preventive Onsite Service / Training Visits²
Warranty extension for one additional year
(warranty valid for 2 years or 4,000 hours starting
on system ship date, whichever comes first.)
■
Program requires the customer to maintain basic
water quality requirements
■
$ 21,500
14 In-Tank Abrasive Removal System (ARS) Catcher tank cleaning system that removes used
abrasive that collects in the catcher tank reducing
downtime for cleanout and maximizing production
$ 12,950
Compact Innovation.
The EchoJet is a unique, fully enclosed waterjet solution with a compact footprint and 5-axis cutting capabilities. This system is intentionally engineered to reduce noise, contain spray, and enhance operator efficiency, allowing added flexibility for placement on your floor and protection for the surrounding environment.
The EchoJet’s unique enclosed design sets it apart in the world of waterjet. Intentionally engineered to reduce noise and mess with integrated side drip trays to contain spray and a work light for added visibility.
A compact design with built-in forklift pockets means the EchoJet takes up minimal floor space and is easy to install and move. Perfect if you’re limited on valuable floor space.
The EchoJet was designed with the operator in mind. It has both a canted bridge for full work envelope usage and easy-close sliding doors for easy part access. Capable of being configured with a range of our pumps and cutting heads, the EchoJet can truly be built to suit your needs.
Designed with precision and reliability in mind, the EchoJet is equipped with quick and accurate motions, and dependable repeatability. This makes it a popular choice for fabrication shops, R&D labs, and more.
Imperial
| Pump Output | 60,000 PSI |
| X | 51" |
| Y | 51" |
| Z | 8" |
| Power | 50 hp |
General Specifications - Imperial
• Rapid Traverse Maximum.......... 500 in/min
• Linear Positional Accuracy.......... ± 0.001 in
• Repeatability.......... ± 0.001 in
• Z-Axis Travel.......... 8 in
• Work Envelope.......... 4’-3” x 4’-3”
• Acceleration.......... 0.1 g
• Ballbar Circularity.......... ± 0.003 in
With the EchoJet, you can rely on Flow to partner with you for service, parts, training, and beyond. Flow has established a new industry standard with the Mach Series, providing complete solutions for machine systems, software, service, and support.
We are committed to providing you with the tools you need to keep your system running at its best. Professional training is available in both classroom settings, as well as on-site.
Includes Description
1 Precision Z-Axis Fully programmable servo-driven Z-Axis
Dynamic Waterjet® Automatic taper compensation to produce 2D parts with tight
tolerances at higher speeds
■Automatically adjusts for taper based on material type, speed
and desired edge finish
■PASER® 4 cutting system ■ New industry benchmark in cutting heads
■ 225 kg [500 lb] abrasive delivery system
2 FlowXpert Infinity™ ■ Roll-around control
■ FlowXpert Infinity™ software package
3 HyPlex® Prime pump ■ 30 hp, 4150 bar [60,000 psi]
■ Efficient operation in a compact design
■ Infinite variable pressure control
■ Modular design allows for a wide variety of options
4 CleanCut Material Support System Heavy-duty steel construction
5 Start-up services, installation, and training Provided by Flow-certified technicians, included at no charge if
installation is started within four (4) months of ship date (two
seats of training also included to be used within one year of
installation)
6 Warranty One (1) year warranty
7 WaterjetConnect IQ™ by Flow® ■ Identify system information for go-forward planning
■ Access data in real time from Flow
■ View information from anywhere and from any device
Additional Items Included Description
8 Technology Package
Includes Waterjet Connect iQ,
Waterjet Connect, FlowXPERT Infinity
and FlowCUT software
■ Two seats of upgraded FlowXpert Infinity CAD software
Waterjet Connect iQ platform with machine data, alarms, and
alerts
■
■ Two seats of FlowCUT Software
9 Laser Edge Finder Allows operator to precisely position waterjet at an exact position
on the work piece being cut
10 Low-profile fixture clamps Low-profile design provides greater mobility of the machine within
the cutting environment
Options Description Price USD
11 Pivot+ Automatic taper compensation to produce 2D and
3D parts with tight tolerances at higher speeds
■
■ Advanced beveling and 3D (5-Axis) capabilities
$ 24,500
12 MotoJet X 50hp intensifier pump ■ 50 hp, 4150 bar [60,000 psi]
■ Industry leading intensifier life
■ Engineered for greater uptime
Full enclosure with sound deadening and LED
diagnostics
■
$ 27,980
13 FlowCare Program covers 2,000 hours of pump runtime for
up to two (2) years
■
Intensifier Exchange Program
Flow performs all inspections, part replacement,
and repair at the Flow Service/Rebuild Center.
■
■ Includes all parts
■
$3,000 parts credit:
Recommendations provided at installation by Flow
Service Engineer based on estimated usage rates,
application, water quality, and other factors
■
■ Key Consumables¹ provided at installation
10% discount off published Flow Service rates for
life of program
■
■ Two (2) Preventive Onsite Service / Training Visits²
Warranty extension for one additional year
(warranty valid for 2 years or 4,000 hours starting
on system ship date, whichever comes first.)
■
Program requires the customer to maintain basic
water quality requirements
■
$ 21,500
14 In-Tank Abrasive Removal System (ARS) Catcher tank cleaning system that removes used
abrasive that collects in the catcher tank reducing
downtime for cleanout and maximizing production
$ 12,950
