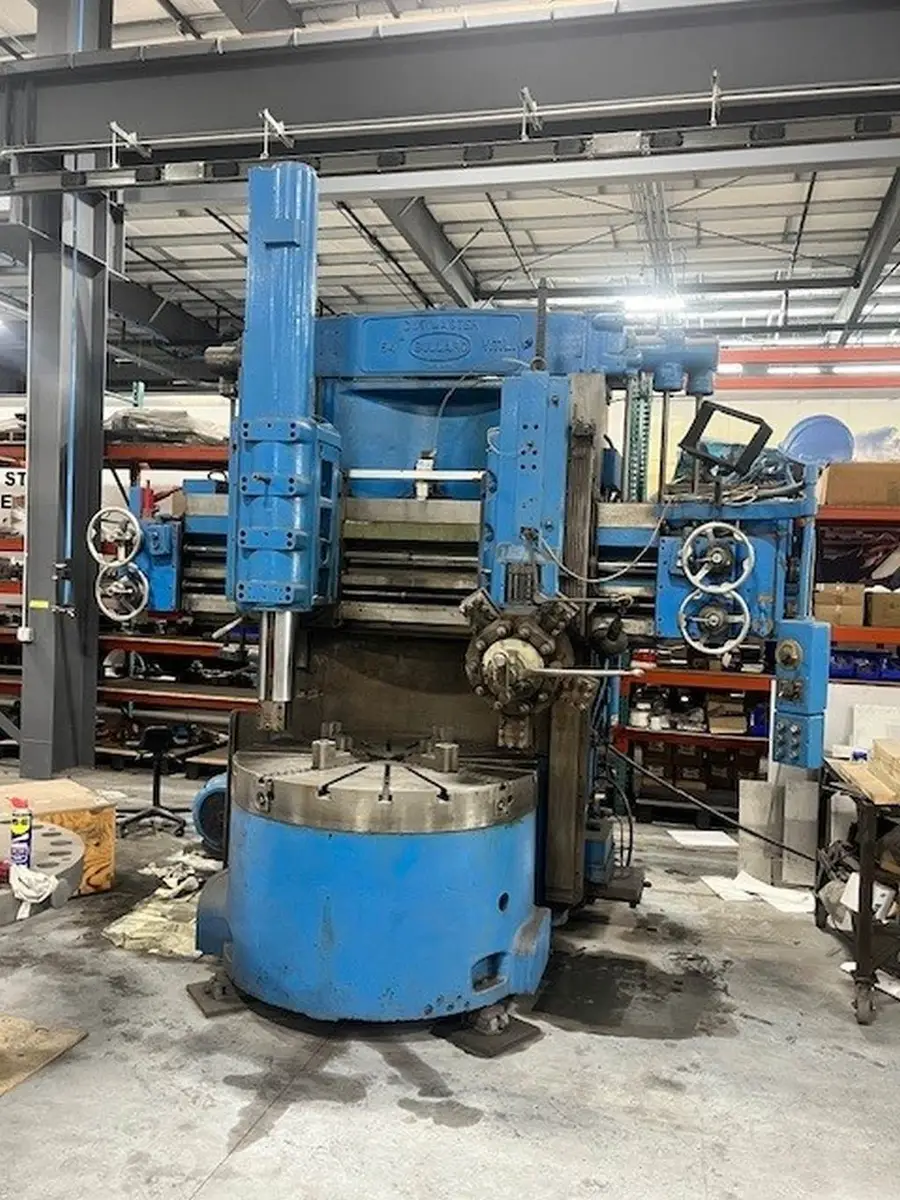

54" Bullard Cutmaster Vertical Boring Mill
Have one to sell?
ConditionUsed
1 available
54" Bullard Cutmaster Vertical Boring Mill available. This used machine offers a 54" table diameter, 62" swing, 44" work height under rail, and is powered by a 30 HP motor. Equipped with turret and RAM head swivels; ideal for diverse machining needs.
54” BULLARD VERTICAL BORING MILL
MODEL: 54" CUTMASTER, S/N: 28242
• CHUCK DIAMETER........................54"
• MAXIMUM SWING ....... 62"
• MAXIMUM HEIGHT UNDER RAIL............... 44"
• SPEED RANGE (20 SPEEDS).........4.4 TO 160 RPM
• TABLE MOTOR..........................30 HP
• FEEDS (16 FEEDS)........................ .0026 TO .125 IPR
• VERTICAL TRAVEL OF TURRET............... 30-3/8"
• SWIVEL OF TURRET........................ 30 DEG
• LEFT & RIGHT
VERTICAL TRAVEL OF THE RAM HEAD ........ 30-1/2"
• SWIVEL OF RAM .......................... 30 DEG
• LEFT & RIGHT
VERTICAL TRAVEL OF SIDE HEAD............ 44-1/4"
• APPROXIMATE FLOOR SPACE................. 115" x 136" x 124"
• HEIGHT WITH RAIL AND TURRET UP.......... 152"
• APPROXIMATE WEIGHT ..................... 50,000 LBS
EQUIPPED WITH:
* 5-SIDED R.H. TURRET
* L.H. SWIVELING RAM HEAD
* 4-JAW INDEPENDANT CHUCK
* 30 HP MAIN DRIVE MOTOR
* 240 Volt / 3 / Phase
* 75 KVA TRANSFORMER FOR 480 Volt Application
54" Bullard Cutmaster Vertical Boring Mill available. This used machine offers a 54" table diameter, 62" swing, 44" work height under rail, and is powered by a 30 HP motor. Equipped with turret and RAM head swivels; ideal for diverse machining needs.
Imperial
| Table Dia | 54" |
| Swing | 62" |
| Work Ht-U/R | 44" |
| Power | 30 hp |
| RPM | 160 RPM |
| Dimensions | 115 x 136 x 124 |
| Weight | 50000 lbs |
54” BULLARD VERTICAL BORING MILL
MODEL: 54" CUTMASTER, S/N: 28242
• CHUCK DIAMETER........................54"
• MAXIMUM SWING ....... 62"
• MAXIMUM HEIGHT UNDER RAIL............... 44"
• SPEED RANGE (20 SPEEDS).........4.4 TO 160 RPM
• TABLE MOTOR..........................30 HP
• FEEDS (16 FEEDS)........................ .0026 TO .125 IPR
• VERTICAL TRAVEL OF TURRET............... 30-3/8"
• SWIVEL OF TURRET........................ 30 DEG
• LEFT & RIGHT
VERTICAL TRAVEL OF THE RAM HEAD ........ 30-1/2"
• SWIVEL OF RAM .......................... 30 DEG
• LEFT & RIGHT
VERTICAL TRAVEL OF SIDE HEAD............ 44-1/4"
• APPROXIMATE FLOOR SPACE................. 115" x 136" x 124"
• HEIGHT WITH RAIL AND TURRET UP.......... 152"
• APPROXIMATE WEIGHT ..................... 50,000 LBS
EQUIPPED WITH:
* 5-SIDED R.H. TURRET
* L.H. SWIVELING RAM HEAD
* 4-JAW INDEPENDANT CHUCK
* 30 HP MAIN DRIVE MOTOR
* 240 Volt / 3 / Phase
* 75 KVA TRANSFORMER FOR 480 Volt Application
