Used WEBSTER & BENNETT 60 | BORING MILLS, Vertical
Have one to sell?
ConditionUsed
1 available

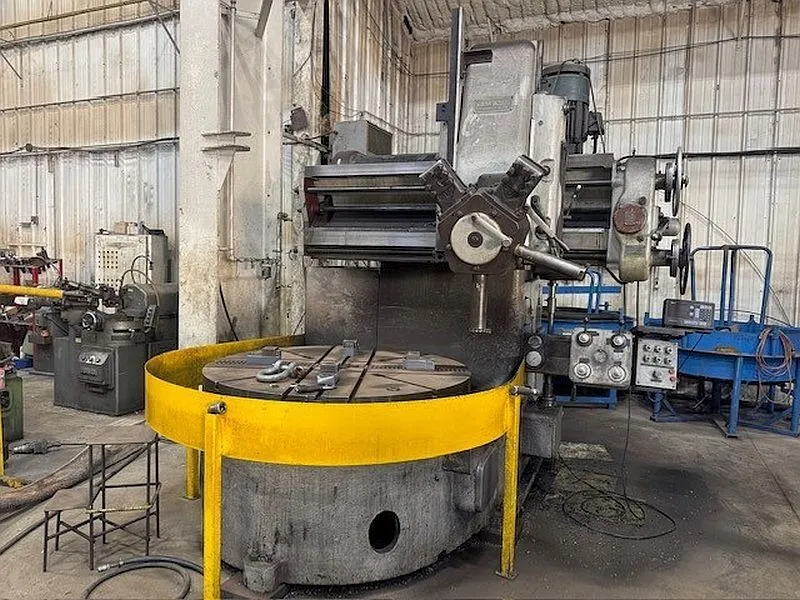

WEBSTER & BENNETT 60 Vertical Boring Mill offers a 60" table, 64" swing, and 24" under rail work height. Capable of 100 RPM, it comes with 575v 3ph power and a transformer included. Ideal for robust machining needs.
SPECIFICATIONS:

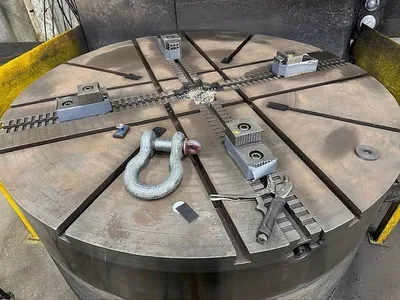

DIAMETER OF CHUCK...................... 60"
MAX. SWING............................. 67"
HEIGHT UNDER TURRET.................... 35"
HEIGHT UNDER CROSS RAIL................ 24"
VERTICAL FEED OF TURRET................ 26"
MAX. LENGTH OF HOLE WHICH CAN BE BORED. 24"
SPEED RANGE (12)....................... 4.5 - 100 RPM
FEED RANGE (12)........................ 0.005 - 0.250 IPR
MAIN MOTOR............................. 25 HP
APPROX. WEIGHT......................... 22,352 LBS
EQUIPPED WITH:
Transformer Included
SET OF (4) JAWS
(2) BOX TYPE TOOLHOLDERS
(2) Boring Bars
Table Guard
MAIN MOTOR & MOTOR GUARDING
WEBSTER & BENNETT 60 Vertical Boring Mill offers a 60" table, 64" swing, and 24" under rail work height. Capable of 100 RPM, it comes with 575v 3ph power and a transformer included. Ideal for robust machining needs.
Imperial
| Table Dia | 60" |
| Swing | 64" |
| Work Ht-U/R | 24" |
| RPM | 100 RPM |
SPECIFICATIONS:
DIAMETER OF CHUCK...................... 60"
MAX. SWING............................. 67"
HEIGHT UNDER TURRET.................... 35"
HEIGHT UNDER CROSS RAIL................ 24"
VERTICAL FEED OF TURRET................ 26"
MAX. LENGTH OF HOLE WHICH CAN BE BORED. 24"
SPEED RANGE (12)....................... 4.5 - 100 RPM
FEED RANGE (12)........................ 0.005 - 0.250 IPR
MAIN MOTOR............................. 25 HP
APPROX. WEIGHT......................... 22,352 LBS
EQUIPPED WITH:
Transformer Included
SET OF (4) JAWS
(2) BOX TYPE TOOLHOLDERS
(2) Boring Bars
Table Guard
MAIN MOTOR & MOTOR GUARDING
