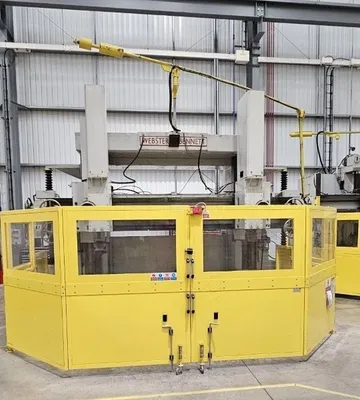

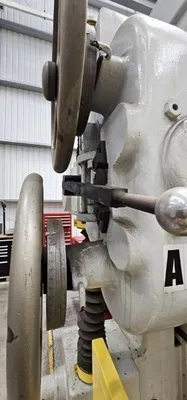

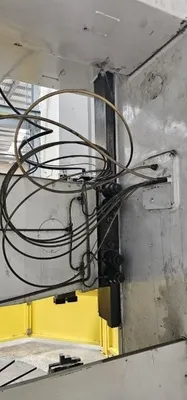

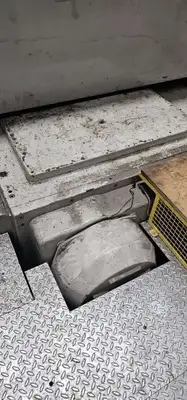

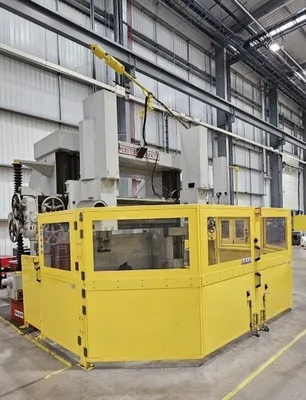

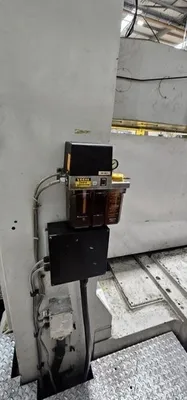

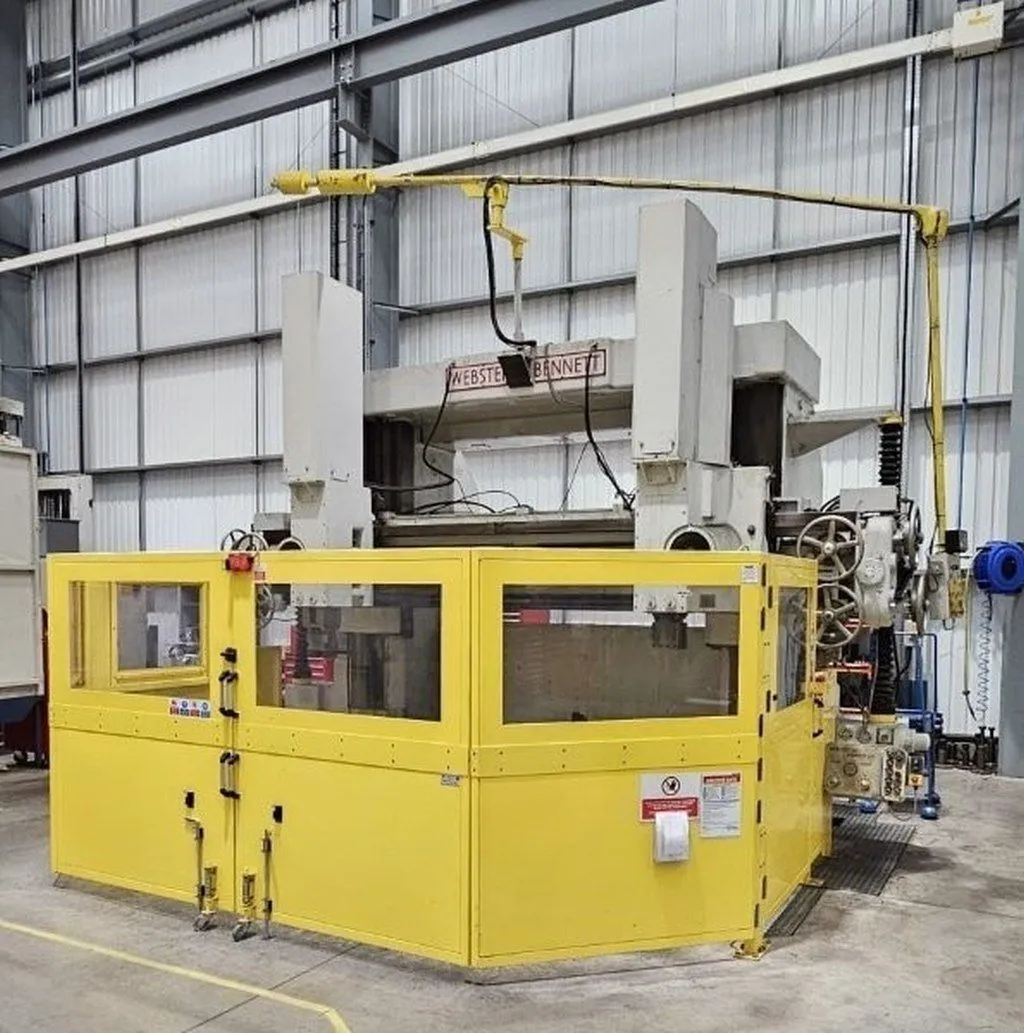

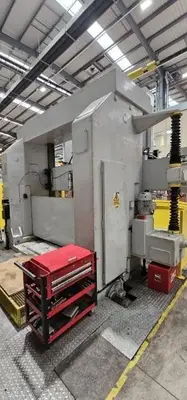

108" DCM WEBSTER BENNETT VERTICAL BORING MILL

MODEL: DCM

Year..........1970
Diameter of faceplate .......... 108” / 2743 mm
Diameter of work turned with ram .......... 120” / 3048 mm
Diameter of work admitted .......... 122” / 3100 mm
Height from faceplate to underside of cross-slide .......... 78” max. / 1981 mm .......... 24” min. / 609 mm

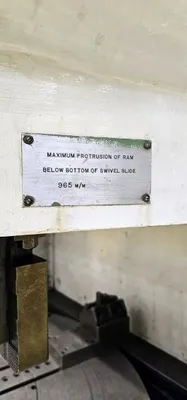

Vertical travel of ram .......... 48” / 1219 mm
Horizontal travel of ram (Table centre outwards) .......... 66” / 1676 mm
Minimum distance between centre of ram .......... 30” / 762 mm
Centre to face of cross slide .......... 17” / 432 mm
Smallest dia. hole toolholder and ram will enter .......... 11 ¾” / 298 mm
Maximum load on table .......... 44800 lb / 20320 kg

Number of feeds .......... 12
Range of feeds .......... 0.05 – 2.5 mm/rev.
Number of speeds ..........12
Range of speeds ..........1.5 – 39.5 rpm
Main motor .......... 50 HP / 37 kW
Width .......... 222” / 5639 mm
Front to back .......... 186” / 4725 mm
Height .......... 215” / 5461 mm
Approximate total weight of machine .......... 100,800 lb / 45,720 kg

Features & Equipped With:

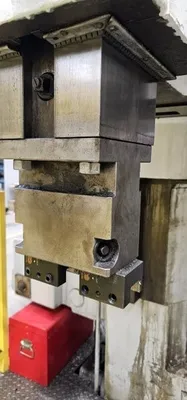

• Left- and right-hand ram slides

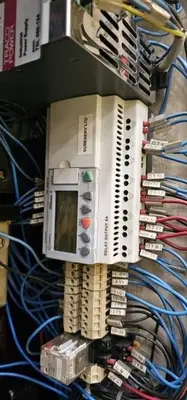

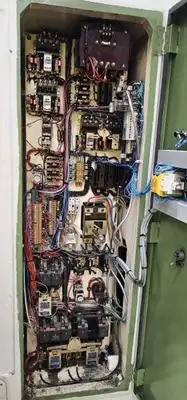

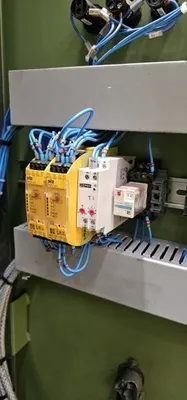

• Pendant control

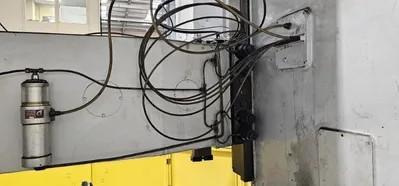

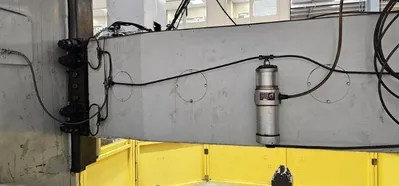

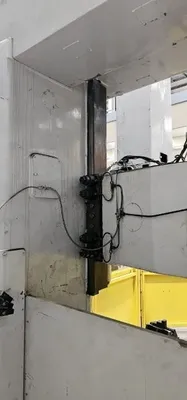

• D.R.O.

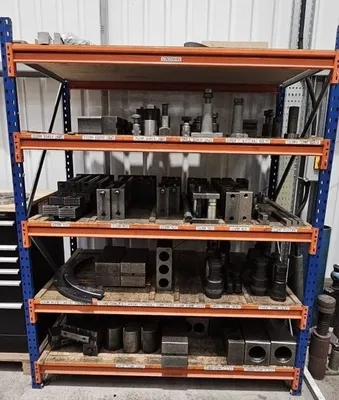

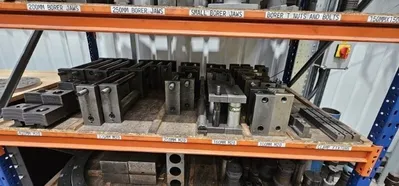

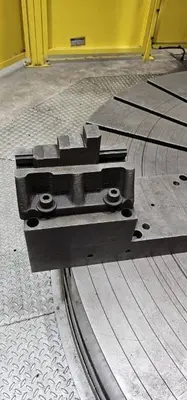

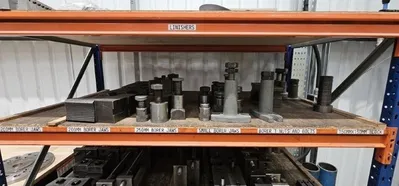

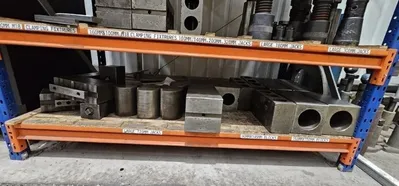

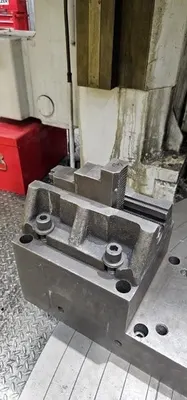

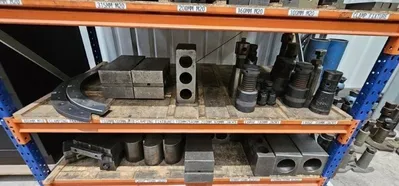

• Chuck jaws
