Introduction
Choosing the right CNC turning center often separates profitable production runs from constant downtime. Many shops struggle with machines that can't hold tolerances, lack tool capacity for complex parts, or require lengthy changeovers between operations.
The FEMCO Durga 25-E addresses these challenges with a precision-built slant-bed design and high-capacity tooling system. This guide gives machinists, shop managers, and procurement teams a direct breakdown of specifications, features, and capabilities to support a confident purchasing decision.
T.R. Wigglesworth Machinery Co., an authorized FEMCO dealer founded in 1935, offers the Durga 25-E with full support including delivery, installation, and operator training.
TL;DR:
- Slant-bed CNC turning center with 23/24-station turret capacity for complex multi-tool operations
- Fanuc 0T controller provides industry-standard programming and familiar interface
- Built for aerospace, medical device, and precision manufacturing environments
- Slant-bed design enables gravity-assisted chip evacuation and consistent thermal stability
- Available through T.R. Wigglesworth with full installation and parts support
What Is the FEMCO Durga 25-E CNC Turning Center?
The FEMCO Durga 25-E is a slant-bed CNC turning center designed for general-purpose and production turning environments. A Fanuc-style controller drives repeatable accuracy across varied workloads and materials.
FEMCO's Manufacturing Pedigree
Far East Machinery Co., Ltd. (FEMCO) established operations in 1949 in Chiayi, Taiwan. Originally a bicycle rim manufacturer, the company expanded into comprehensive steel production and machine tool manufacturing over seven decades. Today, FEMCO produces CNC horizontal boring mills, CNC lathes, vertical lathes, and wheel turning centers. The company remains independent from the Fair Friend Group (FFG).
The Durga series addresses mid-size production turning requirements, pairing a rigid cast construction with Fanuc-based CNC control — a combination suited to shops running consistent part volumes.
Target Applications
The Durga 25-E fits shops requiring:
- Repeatable turning performance across varied materials
- Multi-station tool capacity for complex part geometries
- Thermal stability during extended production cycles
- Footprint-efficient design for mid-size facilities
Key Technical Specifications
Machine Capacity:
| Specification | Value |
|---|---|
| Max Turning Diameter | 9.84" (249.94 mm) |
| Max Turning Length | 23.62" (559.95 mm) |
| Swing Over Bed | 17.72"–17.75" (450.09 mm) |
| Bar Capacity | 2.04"–2.05" (52 mm) |
Spindle Performance:
| Specification | Value |
|---|---|
| Spindle Speed Range | 40–4,800 RPM |
| Spindle Nose | A2-6 |
| Spindle Bore | 2.4" (60.96 mm) |
| Spindle Motor Power | 10/14.7–20 HP (variant dependent) |
Axis Travel & Feed:
| Specification | Value |
|---|---|
| X-Axis Travel | 5" (127 mm) |
| Z-Axis Travel | 23.62"–24.80" (600–630 mm) |
| Rapid Traverse (X-Axis) | 472–787 IPM (20 m/min) |
| Rapid Traverse (Z-Axis) | 630–944 IPM (24 m/min) |
Turret & Tooling:
| Specification | Value |
|---|---|
| Tool Stations | 12–24 positions (double-disc configurations available) |
| Tailstock Taper | MT-4 |
| Tailstock Quill Diameter | 2.95"–3.1" |
Machine Physical Specs:
| Specification | Value |
|---|---|
| Total Weight | 6,000–6,700 lbs |
| Floor Footprint | Approx. 90" × 60" × 66" to 120" × 49" |
Note: Exact specifications vary by variant and manufacturing year. Verify details with T.R. Wigglesworth for your specific configuration.
Productivity Implications
Rapid traverse rates approaching 944 IPM on the Z-axis cut non-cutting time between operations. For shops running high-volume orders with frequent tool changes, these seconds add up to measurable throughput gains per shift.
That advantage compounds with the machine's 12–24-station turret capacity, which keeps all required tools loaded and eliminates manual tool changes mid-program.
The 2.4" spindle bore accommodates bar stock up to 2.05" diameter, enabling lights-out production for shaft and bushing work without frequent material reloads.
Machine Features That Set the Durga 25-E Apart

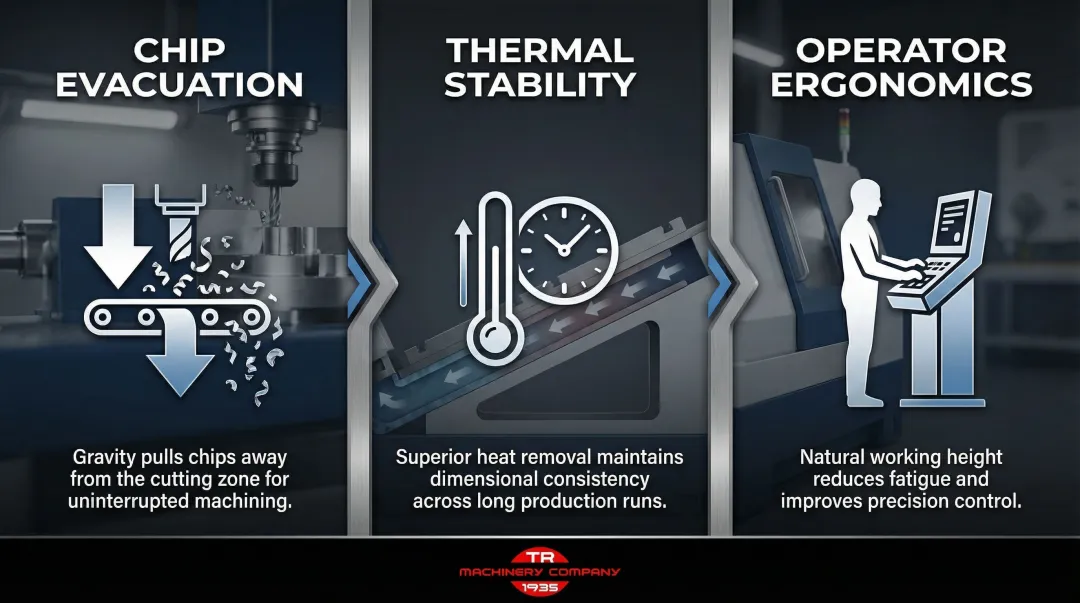

Slant-Bed Design Advantage
The Durga 25-E's angled bed provides measurable benefits beyond aesthetics:
- Chip evacuation: Gravity pulls hot chips directly into the conveyor zone, preventing accumulation on guideways. Chips left sitting on flat surfaces create hot spots that cause thermal deformation and dimensional drift over long runs.
- Thermal stability: Removing heat sources from the cutting zone quickly minimizes workpiece expansion and machine structure distortion. Shops holding ±0.0005" tolerances across 4-hour cycles benefit directly.
- Operator ergonomics: The inclined bed positions the spindle at natural working height, improving setup visibility and reducing fatigue during part loading.
Hydraulic Chuck and Clamping System
The hydraulic clamping system activates the chuck for secure, repeatable workpiece holding. Hydraulic actuation delivers consistent clamping force across batches, which is critical for maintaining dimensional uniformity when running production quantities.
Hydraulic chucks clamp faster than manual alternatives, shaving 5–10 seconds per part. Over a 200-piece run, that's 15–30 minutes returned to productive cutting. They also eliminate chuck key operation entirely, removing a common pinch-point hazard.
High-Capacity Turret System
The Durga 25-E frequently ships with **23- or 24-station double-disc turrets**, offering far more tool capacity than standard 12-station configurations.
This capacity supports complex part programs requiring roughing tools, finishing inserts, threading tools, grooving cutters, and boring bars — all without manual intervention. A typical aerospace shaft requiring OD turning, facing, threading, and chamfering completes in a single setup.
Fast indexing between stations minimizes dwell time, keeping the spindle productive. Rigid tool post construction during cutting prevents deflection that degrades surface finish.
Structural Rigidity and Guideway Construction
FEMCO does not publicly specify whether the Durga 25-E uses box-way or linear guideway construction. The distinction has direct implications for your application:
| Guideway Type | Strength | Best For |
|---|---|---|
| Box-way | High rigidity, superior vibration damping | Heavy roughing in steel, stainless, titanium |
| Linear | Low friction, high positional accuracy | High-speed finishing in aluminum and softer materials |
Buyers should verify guideway type with T.R. Wigglesworth based on their primary applications.
Coolant Delivery and Chip Management
Effective coolant delivery extends tool life and improves surface finish. FEMCO's public documentation does not detail through-tool coolant availability or chip conveyor compatibility for the Durga 25-E. Both are standard in this machine class; confirm specifics with T.R. Wigglesworth during equipment specification.
Automated chip removal prevents recutting and reduces manual cleanup between shifts — particularly valuable during lights-out production. For shops running multi-shift or unattended cycles, chip conveyor compatibility is worth prioritizing early in the configuration conversation.
Control System and Ease of Operation
Fanuc 0T / 0T-C Controller
The Durga 25-E uses the Fanuc 0T or 0T-C series controller, the industry-standard platform for CNC turning.
Practical benefits:
- Industry-standard G-code and M-code compatibility reduces programming time
- Familiar interface shortens operator training for shops already running Fanuc equipment
- Broad aftermarket support for troubleshooting and spare parts
Coordinate Systems Explained
Fanuc turning controllers manage tool positioning through specific coordinate systems:
| System | Axes | Function |
|---|---|---|
| Absolute (X/Z) | X = radial/diameter; Z = longitudinal | Moves tool to a fixed point relative to workpiece origin |
| Incremental (U/W) | U = X-axis delta; W = Z-axis delta | Moves tool a set distance from its current position |
| Machine Coordinates | Machine zero reference | Fixed calibration baseline used for system homing |
Knowing which mode is active prevents costly setup errors, especially when switching between absolute and incremental programming mid-operation. That context carries directly into how the controller handles tool offset data.
Tool Offset and Work Zero Setting
Program Z0 establishment:
- Execute zero return (home) procedure to establish machine reference
- Touch the master tool to the workpiece end face
- Enter the position via the Work Shift offset menu
- X zero is factory-preset to spindle centerline
Geometry offsets: Each turret station stores individual tool geometry data, enabling automatic compensation during tool changes, which cuts new job setup time and reduces the chance of operator error.
MPG (Manual Pulse Generator) / Handle Mode
The MPG enables fine manual jogging during setup and tool qualification. The axis selector switch and jog rate control provide precise incremental movement, which is particularly useful when qualifying new tools or setting offsets on complex part geometries.
Ideal Applications and Industries
Primary Industry Applications
The FEMCO Durga 25-E excels in industries requiring tight tolerances and repeatable multi-tool operations:
- Aerospace: Shafts, bushings, landing gear bushings, hydraulic fittings
- Medical devices: Surgical instrument components, implant housings, tight-tolerance cylindrical parts
- Defense: Ordnance components, weapon system parts
- Mold components: Ejector pins, core pins, precision tooling elements
- Contract/job shop: General precision turning across mixed part families

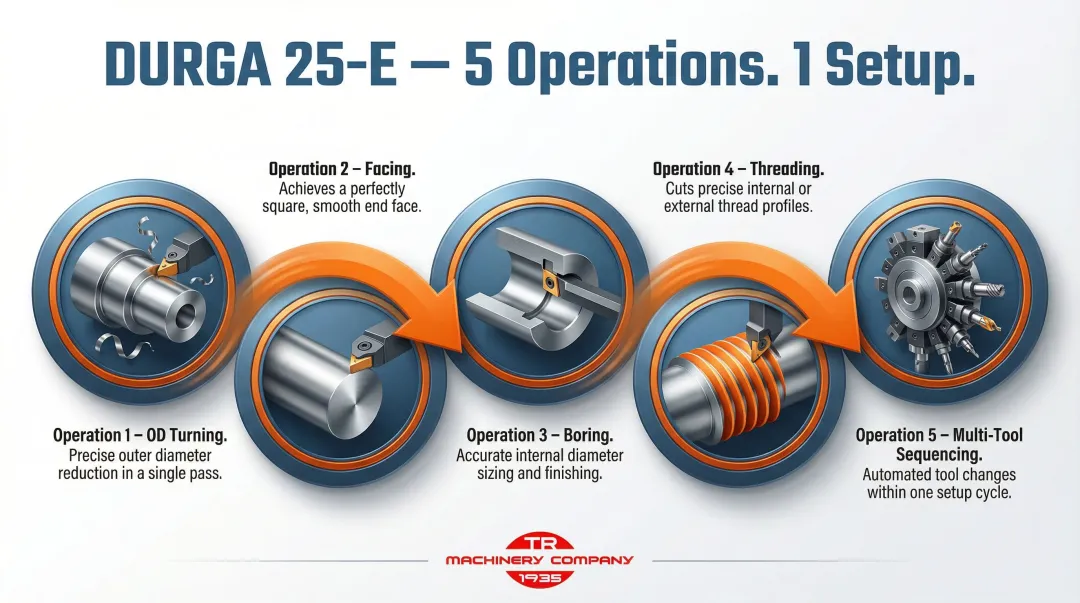

Operations Capability
Each of these industries demands a specific mix of turning operations — and the Durga 25-E supports all of them in a single setup:
- Roughs and finishes external diameters with multiple insert geometries (OD turning)
- Squares end faces and shoulders for assembly-ready parts (facing)
- Handles internal diameter work via boring bars and insert tooling
- Cuts custom thread pitches using the G76 single-point threading cycle
- Sequences up to 23/24 tools without mid-cycle changes, enabling complex programs from one setup
Material Compatibility
The Durga 25-E cuts the materials these industries actually run:
- Steel: Carbon steel, alloy steel, 4130, 4140
- Stainless: 304, 316, 410SS, 17-4 PH
- Aluminum: 6061, 7075, aerospace alloys
- Titanium: Grade 5 (Ti-6Al-4V), medical-grade titanium
- Cast iron: Gray iron, ductile iron
Material capability correlates directly with spindle power and structural rigidity. The Durga 25-E's 10–20 HP spindle motor provides sufficient torque for interrupted cuts in harder materials when paired with appropriate tooling.
Case Example: Houston Oilfield Equipment reduced choke valve flange processing time from 2 hours to 1.5 hours by standardizing on FEMCO CNC lathes for OD turning, ID boring, and ring groove machining in carbon steels and stainless alloys.
Acquiring the FEMCO Durga 25-E Through T.R. Wigglesworth Machinery Co.
T.R. Wigglesworth Machinery Co. is the authorized North American distributor for FEMCO equipment. Operating since 1935, Wigglesworth handles the full acquisition process — from initial configuration through installation, operator training, and long-term lifecycle support.
Services included:
- Factory-trained technician installation and machine commissioning
- On-site operator training for setup, programming, and maintenance
- Access to OEM parts inventory for both current and legacy FEMCO models
- Field service support for troubleshooting and repair
Locations:
- Bedford, Ohio (headquarters)
- Centreville, Virginia
Contact Information:
- Phone: 440-232-6660
- Business Hours: Monday–Friday, 9AM–5PM
For pricing and availability, contact T.R. Wigglesworth directly. Their team can match the Durga 25-E's configuration — turret type, spindle power, and accessory packages — to your shop's specific production requirements.
Frequently Asked Questions
What is the difference between CNC turning and CNC lathe?
"CNC lathe" refers to the machine itself, while "CNC turning" describes the material removal process where the workpiece rotates against a stationary cutting tool. A CNC turning center like the Durga 25-E is an advanced lathe featuring automated tool changes and programmable control.
What type of controller does the FEMCO Durga 25-E use?
The machine uses a Fanuc 0T or 0T-C series controller, supporting standard G-code and M-code programming — a widely adopted system with strong industry familiarity among trained CNC machinists.
How many tools can the FEMCO Durga 25-E turret hold?
Double-disc configurations accommodate up to 23 or 24 tool positions, while some variants ship with 12-station turrets. Confirm the exact configuration with your distributor before ordering.
What industries is the FEMCO Durga 25-E best suited for?
The Durga 25-E is well-suited for aerospace, defense, medical device manufacturing, and precision machining operations. Its heavy-duty construction and multi-tool capacity make it a strong fit wherever repeatable accuracy and minimal part handling are priorities.
How is Program Z0 set on the FEMCO Durga 25-E?
Touch the master tool to the workpiece end face, then enter the position via the Work Shift offset menu to set Program Z0. X zero is factory-preset to the spindle centerline.
Where can I purchase the FEMCO Durga 25-E in the US?
Contact T.R. Wigglesworth Machinery Co., an authorized FEMCO dealer based in Bedford, Ohio. Reach their sales team at 440-232-6660 during weekday business hours (Monday–Friday, 9AM–5PM).
