Knee Mills vs. Benchtop Mills: Complete Comparison Guide

Introduction

Pick the wrong mill and you'll know it fast: missed tolerances, constant rework, and a machine that can't keep pace with production. Both knee mills and benchtop mills handle core milling operations (drilling, facing, slotting, and contouring), but their capabilities diverge sharply once real shop demands enter the picture. Selecting a benchtop mill when the work calls for a knee mill means premature wear and chronic rework; buying a knee mill for genuinely light-duty work ties up capital and floor space without a return.

The tradeoff is direct. Benchtop mills are compact, affordable, and easy to set up. Knee mills deliver greater rigidity, higher table load capacity, and the precision required for aerospace and medical device tolerances. Budget matters, but matching machine capability to your actual production requirements matters more.

This guide covers how each machine works, where they excel, key specifications to compare, and a practical framework for choosing based on shop type and production goals.

TLDR

  • Knee mills offer superior rigidity, 750–850 lb table capacity, and reliable precision on steel and hard metals
  • Benchtop mills are compact and budget-friendly — best suited for aluminum, brass, plastics, and light-duty work
  • Key differences: rigidity, table load capacity, Z-axis travel, footprint, and long-term cost of ownership
  • Go knee mill for job shops, tight tolerances, and hard metals; go benchtop when space and upfront cost are the deciding factors

Knee Mills vs. Benchtop Mills: Quick Comparison

Cost

Knee mills:

Benchtop mills:

  • Entry-level models: $2,499 to $4,999
  • Lower upfront investment
  • Limited upgrade and resale value

Footprint and Weight

Knee mills:

  • Weight: 1,930 to 3,100 lbs
  • Floor space: approximately 84" x 120"
  • Require dedicated floor installation and typically three-phase power

Benchtop mills:

  • Weight: 280 to 750 lbs
  • Bench space: 15.75" x 16.5" to 41.75" x 34.63"
  • Designed to sit on a workbench; run on single-phase power

Table Load Capacity

Knee mills:

  • Maximum workpiece weight: 750 to 850 lbs
  • Heavy cast iron construction handles continuous cutting cycles without bed flex or fatigue
  • Suitable for fixturing heavy parts and multi-part setups

Benchtop mills:

  • Maximum workpiece weight: 200 to 400 lbs
  • Lighter construction limits workpiece size and weight; many models do not publish rated load specifications

Z-Axis Travel and Rigidity

Knee mills:

  • Combined Z-axis travel: 19" to 21" (knee movement + quill)
  • Rigid column and heavy base minimize deflection under load
  • Maintains accuracy during deep cuts and heavy material removal

Benchtop mills:

Accuracy and Tolerance Range

Knee mills:

  • Capable of holding tolerances within 0.0002" (spindle runout spec)
  • Hand-scraped ways on premium models enhance alignment and wear resistance
  • Suitable for aerospace, medical device, and precision mold-making applications

Benchtop mills:

  • Practical for prototype work, hobby projects, and light-duty parts where tolerances of ±0.005" or looser are acceptable
  • Vibration and deflection make them unsuitable for tight-tolerance or sustained production use

Use these specs as a starting point — the sections below break down each factor in detail to help you match the right machine to your shop's actual requirements.

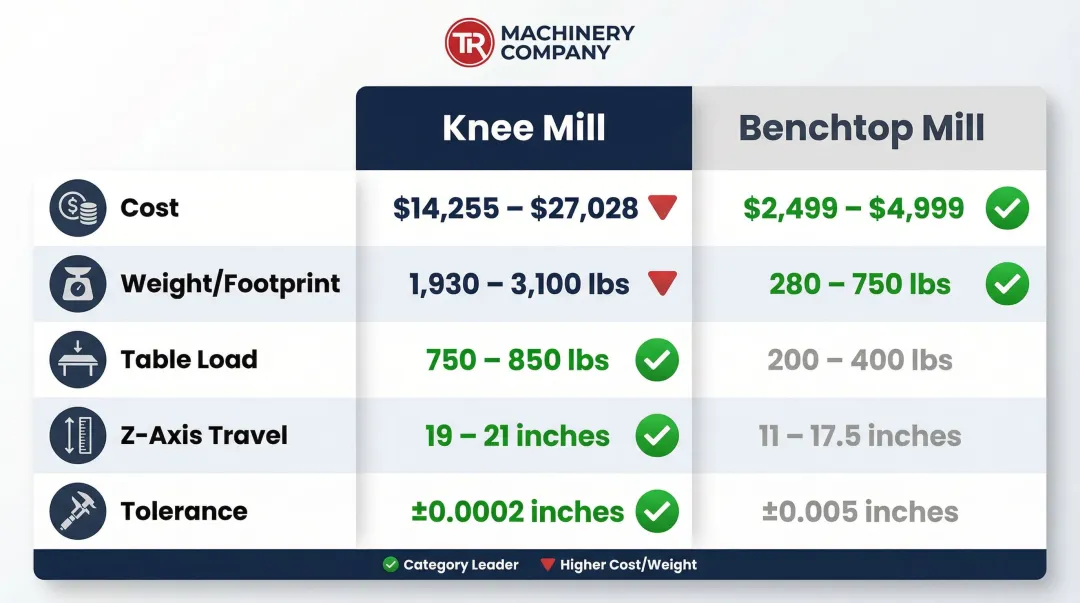

Knee mill versus benchtop mill five-factor specification comparison infographic

What Is a Knee Mill?

A knee mill is a vertical milling machine where the worktable is mounted on a "knee"—an adjustable casting that slides vertically along the column. This design allows the operator to set Z-axis height with precision. The quill provides additional fine Z-axis motion for drilling operations, while the spindle remains fixed to the head.

Structural Advantages

Knee mills feature heavier cast iron construction, wider bases, and longer table travel along both X and Y axes compared to benchtop machines. This rigidity reduces vibration, maintains tighter tolerances, and enables deeper cuts in steel and alloys — the machine mass absorbs cutting forces that would otherwise cause deflection and chatter in lighter equipment.

Control Variants

Manual knee mills: Operated via handwheels, often equipped with optional Digital Readout (DRO) systems for precise position feedback. DROs increase manual machining productivity by 40% to 80% by eliminating manual calculation errors.

Power-feed knee mills: Automated axis movement reduces operator fatigue during long production runs and improves surface finish consistency.

CNC knee mills: Retain the adjustable knee while adding programmable control via conversational or G-code programming. Popular in toolrooms and job shops for repeatable operations and small-batch production.

Material and Application Range

Knee mills handle a broad material range, including:

  • Cast iron, malleable iron, and cast steel
  • Soft, medium, and hard steel
  • Aluminum, brass, bronze, magnesium alloy, and zinc alloy

Standard 2-3 HP machines can drill 3/8" in mild steel via power quill feed, mill 2 cubic inches per minute, and bore up to 6" diameter.

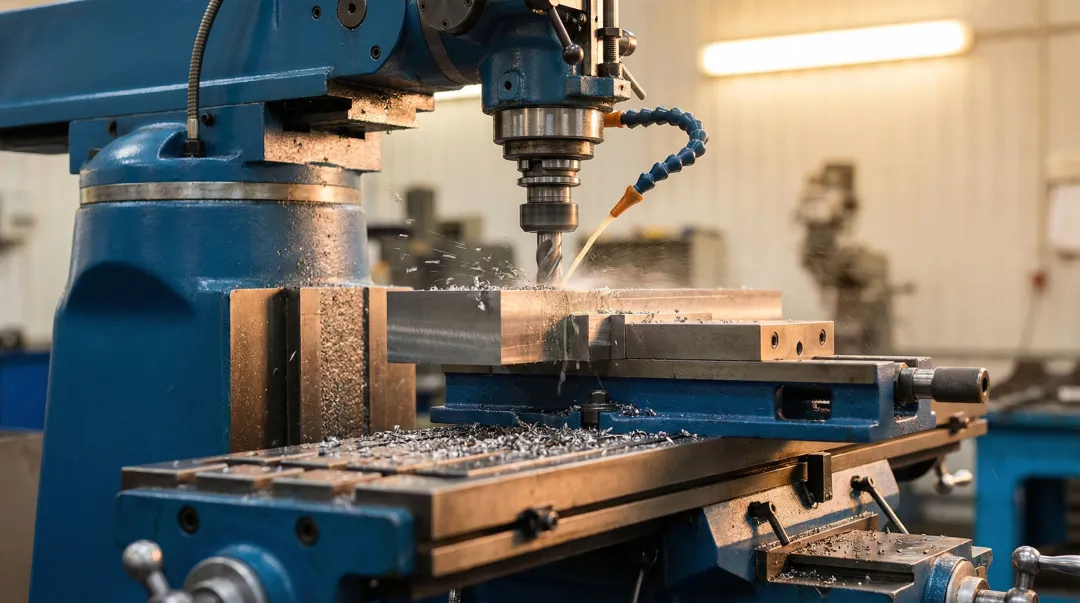

Knee mill machining steel workpiece in professional job shop environment

They are the standard in professional environments—toolrooms, job shops, aerospace component manufacturing, medical device machining, mold making, and precision part production.

Use Cases

Knee mills handle everything from one-off prototype work to small and medium production runs. Applications include die-sinking, surface facing, contouring, and precision boring. Vocational training programs widely use knee mills, which means the operator talent pool is broader and easier to hire from.

T.R. Wigglesworth Machinery Co. is an authorized dealer for knee mill brands including Clausing and Acer, and offers delivery, installation, and operator training as part of each purchase.

What Is a Benchtop Mill?

A benchtop mill (also called a mill drill or bench mill) is a compact, bench-mounted machine that combines drill press functionality with limited milling capability along the X and Y axes.

Two design variants exist: bench mills where the table moves on X and Y while the headstock lowers for depth, and mill drills where the headstock is stationary and the table moves vertically. Mill drills generally deliver more accurate results.

Operational Limitations

Benchtop mills feature lower horsepower motors (1 to 2 HP), lighter column and table construction, reduced X and Y table travel, and limited rigidity compared to knee mills. In practice, this means:

  • Higher vibration during cutting
  • Reduced accuracy in hard materials
  • Smaller maximum part sizes
  • Limited drilling capacity (typically 5/8" in steel)

Benchtop mill manuals explicitly warn that milling with the spindle fully extended causes tool chatter, advising operators to keep the spindle retracted into the headstock for maximum rigidity.

Legitimate Strengths

Despite their limitations, benchtop mills offer genuine advantages:

  • Low cost ($2,499 to $4,999)
  • Minimal floor space requirement
  • Ease of setup for beginners
  • Single-phase power (110V or 220V)

Use Cases

Benchtop mills perform well in:

  • Hobbyist and home-shop use
  • Small educational workshops
  • Light prototype work
  • Repair and maintenance shops that occasionally need to mill simple features

Benchtop mills don't hold up for sustained precision machining, hard metal work, or production environments — factors that become critical when evaluating them against knee mills.

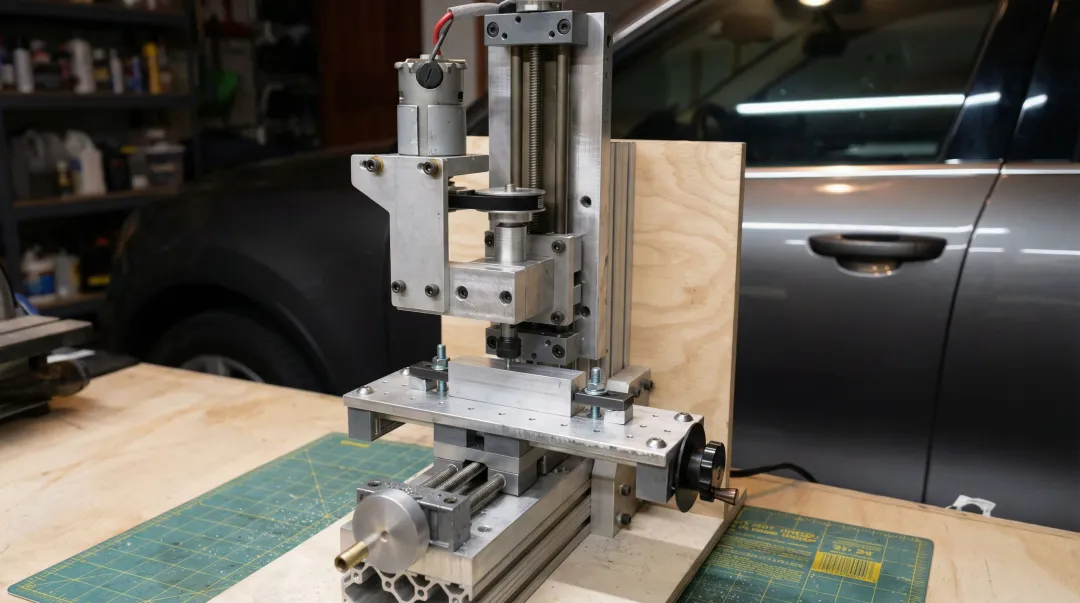

Benchtop mill drilling aluminum part in small workshop or hobby shop

Knee Mill vs. Benchtop Mill: Which One Is Right for You?

The right choice depends on matching machine capability to realistic workload demands across five key factors: production volume, material hardness, required tolerances, available space and power, and long-term total cost of ownership.

Production Volume and Frequency

Benchtop mills are adequate for occasional light-duty milling but degrade quickly under sustained production use due to lighter construction. Knee mills are engineered for continuous operation— the right fit for job shops, manufacturing cells, or toolrooms running daily shifts.

Materials and Tolerance Requirements

If operations involve steel, cast iron, titanium, or other hard alloys—or if finished parts must meet aerospace, medical device, or mold-making tolerances—a knee mill is the only practical choice. Benchtop mills can handle aluminum and softer materials to moderate tolerances, but are not reliable for tight-tolerance work. Rigidity penalties from lighter construction compromise accuracy and tool life.

Space, Power, and Budget Constraints

Benchtop mills run on single-phase power and fit any workbench — accessible for shops without three-phase wiring. Knee mills typically require three-phase power (208V/230V/460V) and dedicated floor space.

Budget is a real constraint, but knee mills hold their value better over time. Professional shops see lower rework risk, longer machine service life, and stronger resale value compared to benchtop alternatives.

With those three criteria in mind, the decision usually comes down to scope of work. Here's how that maps to each machine type.

Situational Recommendations

Choose a benchtop mill if:

  • Your work is primarily hobbyist or light prototype-level
  • Materials are soft (aluminum, brass, plastics)
  • Budget or space is a hard constraint
  • Production volume is low and infrequent

Choose a knee mill if:

  • You operate a professional shop
  • You need consistent accuracy in steel or harder materials
  • You plan to grow your production capacity
  • You require a machine that can be upgraded to CNC

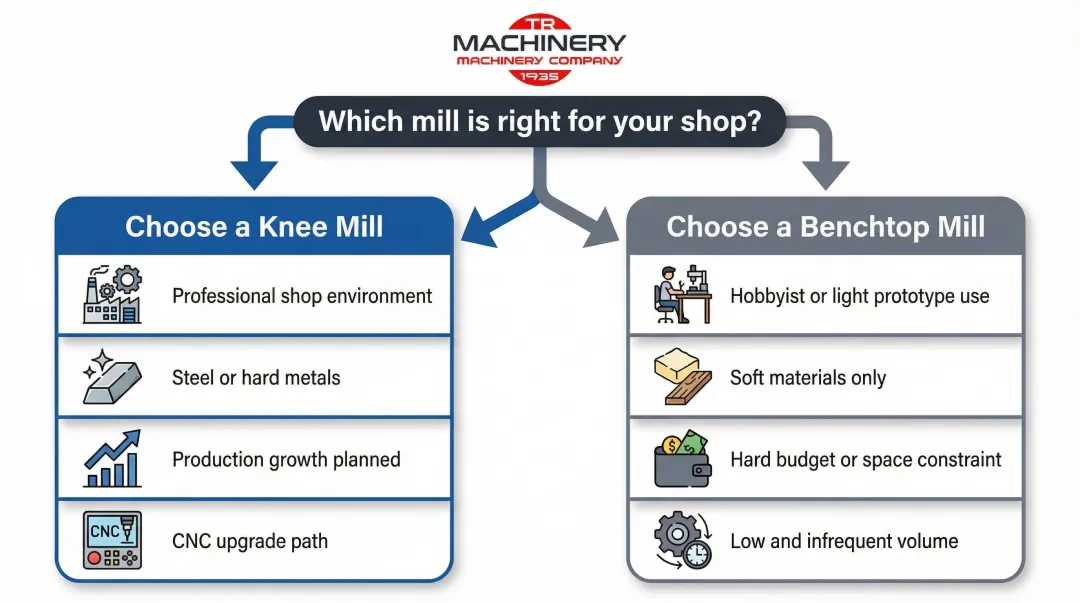

Decision framework flowchart for choosing knee mill versus benchtop mill

T.R. Wigglesworth Machinery Co. stocks both new and used knee mills — including authorized brands such as Acer and Clausing — with delivery, installation, and operator training available. If you're weighing specific models or need help matching a machine to your production requirements, their team has been doing exactly that since 1935.

Real-World Scenarios: Putting the Comparison in Context

Scenario 1: Small Job Shop Upgrade

A small job shop starts with a benchtop mill for occasional prototype work but faces growing customer demands for steel parts with tighter tolerances. The decision to upgrade to a knee mill (or CNC knee mill) is triggered by increasing rework rates and inability to hold required tolerances. Machinists report that upgrading from a benchtop mill to a knee mill provides significantly larger working volume and eliminates the severe rigidity and alignment limitations of round-column benchtop machines.

Scenario 2: Toolroom or Maintenance Application

A maintenance toolroom in a manufacturing facility needs a versatile milling machine for repair work, fixture building, and occasional one-off parts. Manual knee mills remain popular in toolrooms because machinists find them faster and easier to set up for simple parts, jigs, and fixtures compared to programming a CNC machining center.

The tiltable head, movable ram, and rotating turret provide an open work envelope for quick, flexible setups. That makes a manual knee mill with DRO the practical middle ground — more capable than a benchtop mill, and far less costly to operate than a full CNC machining center for occasional use.

Takeaway

Most professional environments — even those with simple, occasional milling needs — are better served by a knee mill's rigidity and accuracy. Benchtop mills are best reserved for genuinely light-duty or non-production contexts. The key factors driving that distinction:

  • Rigidity: Knee mills handle steel and tighter tolerances; benchtop mills flex under load
  • Work envelope: Knee mills offer significantly more table travel and Z-axis range
  • Setup speed: Manual knee mills with DRO outpace CNC centers for one-off and repair work
  • Long-term value: Knee mills hold accuracy and resale value as shop demands grow

T.R. Wigglesworth Machinery Co. carries new and used knee mills across a range of sizes and specifications — useful for shops evaluating their next step up from a benchtop machine.

Conclusion

Knee mills and benchtop mills occupy different positions in the milling machine spectrum. Selecting the right one means being honest about your operation's current and future demands—material types, tolerance targets, production volume, and available infrastructure.

Those demands point clearly in one of two directions:

  • Knee mill: Rigid construction and higher load capacity make it the right call for production environments, hard materials, and tight tolerances — it's a machine that grows with the operation
  • Benchtop mill: Serves light-duty work effectively within its design limits, but struggles with sustained precision cuts in harder materials or high-volume runs

For professional manufacturers, the knee mill's advantage consistently shows up where it matters: fewer rejected parts, better surface finishes, and lower long-term rework costs.

If you're still weighing options, the clearest next step is matching the machine's rated capacity against your most demanding regular job — not your average job. That's where the real difference between these two machines becomes impossible to ignore.

Frequently Asked Questions

What is the difference between a bed mill and a knee mill?

Both are full-sized floor-standing machines. On a knee mill, the table moves vertically via the adjustable knee; on a bed mill, the spindle head moves while the table stays fixed. Bed mills offer higher table load capacity—1,480 lbs vs. 850 lbs in some comparisons—plus greater Z-axis travel for heavier workpieces and deeper cuts.

What is the most accurate knee mill?

Accuracy depends on build quality, table and spindle construction, and proper maintenance. Premium brands like Bridgeport use hand-scraped ways to guarantee alignment and enhance wear resistance. CNC knee mills with DRO systems further improve repeatable accuracy by bypassing leadscrew backlash and providing precise real-time position feedback.

Can a benchtop mill handle steel and hard metals?

While benchtop mills can make light passes in mild steel, their lighter construction and lower horsepower make sustained hard-metal machining impractical. Deflection and vibration cause accuracy loss and accelerate tool wear. Benchtop mills are best reserved for aluminum, brass, and plastics.

What is the typical cost difference between a knee mill and a benchtop mill?

Entry-level benchtop mills range from $2,499 to $4,999, while manual knee mills start at $14,000 to $27,000+, with CNC conversions adding another $19,000+. The knee mill's higher upfront cost often pays off in professional settings through fewer rework cycles and a longer service life.

Can benchtop mills be upgraded to CNC?

Some benchtop mills can be fitted with basic CNC conversion kits, but the mechanical limitations of the machine—rigidity, motor power, limited travel—remain. Round column mill drills lose alignment when the head is raised, making them poor candidates for CNC conversion. CNC knee mills are a far more effective option for shops wanting CNC capability with a manageable investment.

Which mill type is better for a small job shop or toolroom?

A manual or CNC knee mill is recommended for any professional job shop or toolroom context. Greater rigidity, material range, accuracy, and operator familiarity make knee mills the industry standard. Benchtop mills are not recommended for production or precision professional environments.
