Introduction: What Are Band Saw Parts and Why Do They Matter?
Every machinist knows the frustration: a critical bar stock order needs to be cut to length by shift end, but the blade is drifting, the cut is crooked, and scrap is piling up. The problem usually isn't the blade—it's a worn guide insert, incorrect tension, or a tracking control that hasn't been adjusted in months. Knowing how each component functions is what separates clean production cuts from costly downtime — which, in industrial manufacturing, averages $260,000 per hour.
This guide covers every major band saw component for machinists, shop technicians, engineers, and buyers across aerospace, heavy manufacturing, and precision machining. Whether you're troubleshooting, specifying new equipment, or training operators, you'll find practical explanations of how structural parts, blade components, and controls work together for accurate, repeatable cuts.
TLDR
- A band saw drives a continuous toothed blade around two wheels via an electric motor, cutting at controlled speed
- Core structural parts — frame, wheels, table, drive system — directly affect cut accuracy and rigidity
- Blade pitch (TPI), set, and width must match the material and cut type to avoid premature failure
- Tension, tracking, and guides need regular adjustment — they're the root cause of most cutting problems
- Horizontal saws cut bar stock to length; vertical saws handle curves, contours, and fabrication work
How a Band Saw Machine Works
A band saw operates by driving a continuous toothed metal band—the blade—around two or more wheels. An electric motor powers the lower wheel (drive wheel) via a belt-and-pulley system, causing the blade to travel at a controlled speed measured in feet per minute (FPM). As the blade moves, its teeth engage the workpiece, removing material in the form of chips. Unlike reciprocating saws that waste energy during the return stroke, the band saw's continuous cutting action delivers consistent chip load and minimal vibration.

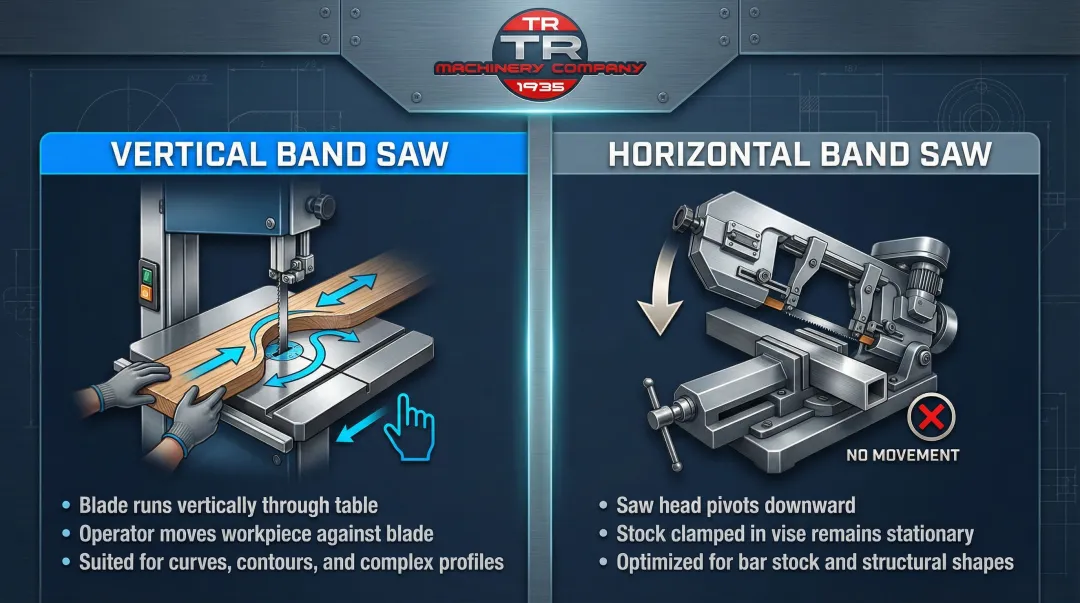

Two Cutting Orientations:
- Vertical band saws: The blade runs vertically through the table; the operator or a power feed moves the workpiece against the blade. This configuration allows for straight cuts, curved contours, and complex profiles, making vertical saws the preferred choice for fabrication shops.
- Horizontal band saws: The saw head (containing the wheels, blade, and motor) pivots downward to feed the blade through fixed stock clamped in a vise. These machines are optimized for cutting bar stock, tubing, and structural shapes to length with minimal operator involvement.
Regardless of orientation, band saw performance depends on precise coordination across all components:
- Frame: Must hold the wheels in rigid alignment throughout the cut
- Blade tension and tracking: Blade must be tensioned correctly and run centered on the wheels
- Guide assemblies: Must support the blade without damaging the tooth set
When any of these elements is out of specification, cut accuracy suffers and blade life drops sharply.
Core Structural Parts of a Band Saw
Frame and Cabinet
The frame is the machine's backbone, typically cast iron or welded steel. It houses and aligns every component, from wheel assemblies to motor mounts. A warped or cracked frame allows wheels to shift out of parallel alignment, causing blade drift and vibration that no operator adjustment can fix.
Frame construction types:
- Cast iron frames: Found on industrial-grade machines, offering maximum rigidity and vibration damping — essential for precision cutting in aerospace and heavy manufacturing
- Fabricated steel frames: Lighter and less expensive, suitable for lighter-duty applications where portability outweighs the need for ultimate rigidity
The cabinet or base encloses the lower wheel, motor, drive components, and (on metal-cutting models) the coolant reservoir and chip collection system. When sourcing equipment, inspect the frame for cracks, particularly around mounting bosses and stress points near the column attachment.
Column or Arm
The column (also called the arm) is the vertical support structure connecting the upper and lower wheel housings. All components above the table — upper wheel assembly, guide post, and tensioning mechanism — mount to the column. The column determines the machine's throat depth: the maximum distance from the blade to the rear of the column, which directly limits workpiece width.
A 20-inch vertical band saw can cut a workpiece up to 20 inches wide when positioned front-to-back through the throat. When evaluating used machines, verify that the column is straight and that the upper wheel assembly mounts squarely to it. Any twist or misalignment is nearly impossible to correct.
Band Wheels (Drive Wheel and Idler/Upper Wheel)
The band saw uses two wheels to support and move the blade. The lower (drive) wheel connects to the motor via belt and pulley, providing the power that moves the blade. It features a crowned profile — slightly higher in the center — covered with a rubber tire.
The crown keeps the blade centered during operation. The rubber tire cushions metal-on-metal contact and prevents blade damage.
The upper (idler) wheel is not motorized but serves three functions:
- Raised or lowered to apply correct blade tension (tensioning)
- Tilted forward or backward to keep the blade centered on both wheels (tracking)
- Lowered to create slack for blade removal and installation
Wheel tires wear over time, developing flat spots, cracks, or glazing. Inspect tires during blade changes and replace them when they no longer provide adequate grip or cushioning.
Work Table
The table is the flat cast-iron surface that supports the workpiece during cutting. On vertical band saws, the table typically includes:
- Miter slot: Accepts miter gauges, jigs, and fixtures for repeatable angled cuts
- Blade slot: Required clearance for blade installation and removal
- Tilt mechanism (trunnion assembly): Allows the table to tilt 0–45° for bevel cuts
Table squareness should be verified every time the blade is changed. Use a machinist's square to check that the table is perpendicular to the blade in both the front-to-back and side-to-side directions. A table that's out of square by even 1° will produce parts that require secondary operations to correct.

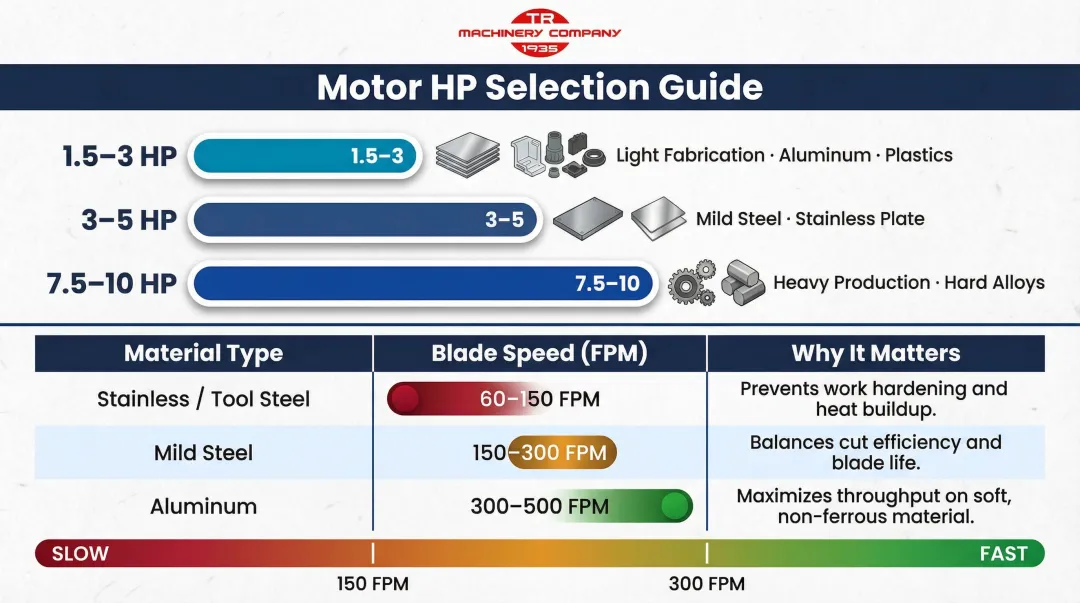

Motor and Drive System
The electric motor powers the drive wheel via a belt-and-pulley or transmission system. Motor horsepower determines what materials and blade widths the machine can handle:
- 1.5–3 HP: Light fabrication, aluminum, plastics, thin-wall tubing
- 3–5 HP: General-purpose metalworking, mild steel bar stock, stainless steel plate
- 7.5–10 HP: Heavy-duty production cutting, large-diameter bar stock, hard alloys
Many industrial band saws include a variable-speed pulley system for adjusting blade speed (in feet per minute) to match the material. Blade speed has a direct impact on tool life and cut quality:
| Material | Recommended Speed | Reason |
|---|---|---|
| Stainless steel, tool steel | 60–150 FPM | Prevents tooth overheating |
| Mild steel | 150–300 FPM | Balances speed and blade life |
| Aluminum | 300–500 FPM | Maximizes productivity on soft stock |
The Band Saw Blade: The Heart of the Cut
The Band Saw Blade: Construction, Teeth, and Selection
The blade is a continuous band of alloy steel with teeth along one edge. The body is flexible (annealed, or softened through heat treatment) to bend around the wheels without breaking, while the teeth are hardened to resist wear.
Industrial metalworking blades typically use bimetal construction: a high-speed steel (HSS) cutting edge electron-beam welded to a spring steel backing, combining cutting performance with fatigue resistance.
Blade Teeth: Pitch, Set, and Width
Tooth pitch is measured in teeth per inch (TPI). Pitch determines how efficiently the blade cuts and how well it handles different material thicknesses:
- Coarse pitch (2–4 TPI): Large gullets clear chips efficiently when cutting thick sections, soft materials, or non-ferrous metals
- Medium pitch (6–10 TPI): General-purpose metalworking for bar stock 1–3 inches thick
- Fine pitch (14–24 TPI): Required for thin-wall tubing, sheet metal, and hard materials to prevent tooth stripping
Tooth set refers to the teeth being bent alternately left, right, and straight (raker pattern). This creates a kerf—the width of the cut—slightly wider than the blade body, preventing the blade from binding in the cut. Set patterns include:
- Raker set: Left, right, straight sequence; general-purpose cutting
- Wavy set: Groups of teeth with varying set angles; reduces noise and vibration when cutting thin or interrupted sections like tubing
- Alternate set: Every tooth bent alternately; fast material removal where finish is secondary
Blade width determines the minimum radius the blade can cut and its rigidity for straight cuts:
- Narrow blades (1/4–1/2 inch): Required for tight-radius curves and contours
- Medium blades (3/4–1 inch): Versatile for moderate curves and general fabrication
- Wide blades (1 1/4 inches and wider): Maximum rigidity for straight production cuts
The 3-Tooth Rule
The 3-tooth rule governs blade pitch selection: at least 3 to 6 teeth must be engaged in the material at all times. Fewer than 3 teeth in contact means each tooth carries excessive load, leading to vibration, stripping, and early breakage. More than 24 teeth engaged overfills the gullets with chips, causing overheating and rapid dulling.
This is especially critical with thin-wall material. A 1/8-inch wall tube, for example, requires 14–18 TPI to keep 3–6 teeth in contact across the wall — making pitch selection the single most common point of failure in metalworking band saw setups.

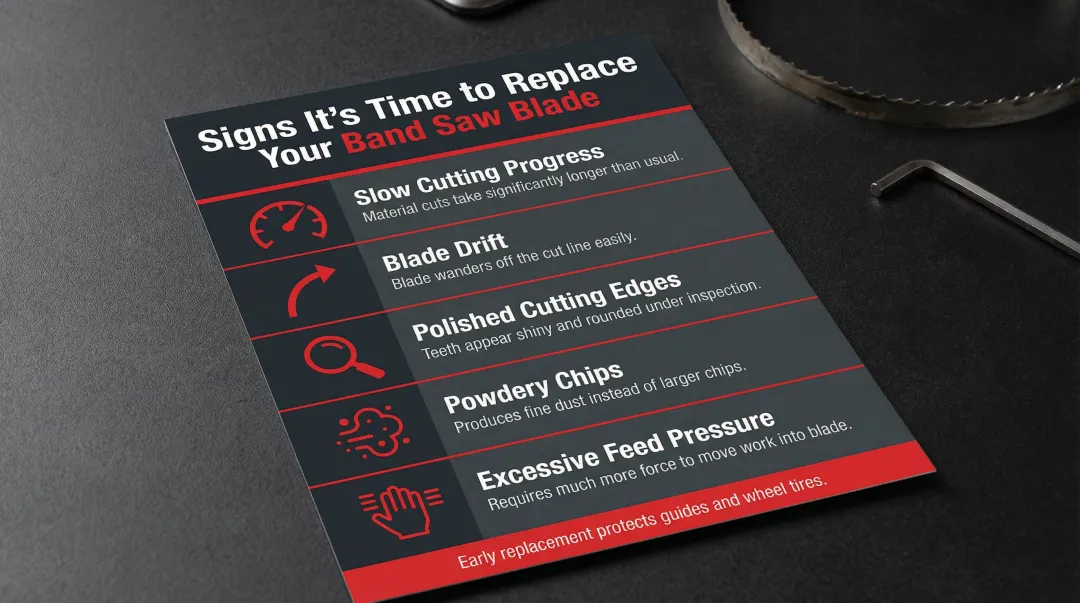

Signs of Blade Wear
Replace the blade when you observe:
- Slow cutting progress: The blade no longer advances through the material at normal feed pressure
- Blade drift: The cut wanders off the layout line despite steady feed
- Polished cutting edges: A visual check with the machine off reveals shiny, rounded teeth rather than sharp, defined geometry
- Powdery chips: Metals that normally produce curled chips — mild steel, aluminum — are generating fine, granular dust instead
- Requires noticeably more feed pressure or lateral correction to hold a straight cut line
Early replacement prevents damage to guide bearings and wheel tires — components far costlier to replace than the blade.
Operational Control Components
Blade Tension System
Proper blade tension is critical to cutting accuracy. Too little tension causes the blade to deflect under load, producing inaccurate cuts and increasing breakage risk. Too much tension fatigues the blade prematurely and stresses the wheel bearings.
The tension mechanism uses a handwheel or crank that raises the upper wheel against a spring, with a tension scale or indicator mounted on the machine.
Note that tension scales on many machines are approximate. Recheck blade tension after a new blade stretches slightly during its first 50 to 100 square inches of cutting.
Tracking Control
Blade tracking ensures the blade runs centered on both wheels. The upper wheel can be tilted (canted) forward or backward using a tracking adjustment handwheel. Tracking must be adjusted:
- Every blade change
- Any time the blade starts riding off the wheel edges
Proper tracking means the blade's back edge just contacts the thrust bearing without the blade overhanging the wheel edges. Incorrect tracking causes accelerated tire wear and can cause the blade to run off the wheels entirely during operation.
Blade Guide System (Upper and Lower)
Band saws have two guide assemblies—one above and one below the table—each consisting of:
- Rear thrust bearing: Prevents the blade from being pushed backward off the wheels under cutting load
- Two side guides: Keep the blade from deflecting laterally during cutting
Side guide types:
- Block guides: Graphite or steel blocks; low cost but wear quickly
- Bearing guides: Ball bearings; longer life and less friction than blocks
- Ceramic guides: Lowest friction and longest wear life; preferred for production environments
Side guide adjustment: Set clearance of approximately the thickness of a sheet of paper. Position the guides so the teeth clear entirely — only the blade body should contact the guides.
The guide post — the height-adjustable assembly above the table — positions the upper guide assembly. Set it approximately 6mm (1/4 inch) above the workpiece. If set too high, the guides cannot adequately support the blade, reducing cut accuracy and creating a safety hazard.
Dust Port and Coolant System
Effective chip clearance is essential for blade life and cutting performance:
- Wood cutting band saws: Use dust ports connected to vacuum collection systems
- Metal cutting band saws: Use air jets or mist coolant systems directed at the blade-workpiece contact point to remove chips and reduce heat
Clogged coolant nozzles or dust ports are a common source of blade overheating and premature wear. Clean coolant systems weekly and replace filters as recommended by the manufacturer.

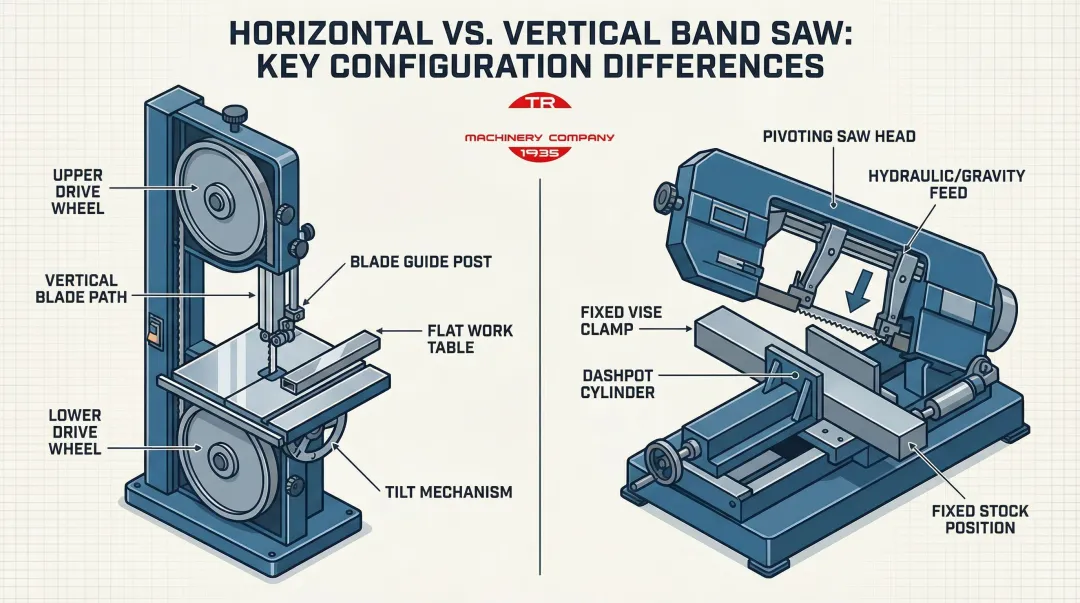

Horizontal vs. Vertical Band Saws: How Parts Differ
The two saw types share many core components, but their configurations—and the parts unique to each—differ significantly based on how the blade and workpiece interact.
Vertical band saw configuration:
- Blade travels vertically through the table
- Workpiece is moved against the blade (manually or with power feed)
- Table can tilt for bevel cuts
- Versatile: capable of contour cutting, curved cuts, filing, and polishing with appropriate attachments
- Standard choice for fabrication and machining shops
Horizontal band saw configuration:
- Saw head (with wheels, blade, and motor) pivots downward to feed the blade through fixed stock
- Stock is clamped in a vise and remains stationary
- Primarily used for cutting bar stock, tubing, and structural shapes to length
- Key components that differ from vertical design: hydraulic or gravity feed system, vise, and dashpot (feed rate stabilizer)
For industrial applications—from aerospace component cutting to heavy manufacturing—the machine's frame, drive system, and blade specifications need to match the work. T.R. Wigglesworth Machinery Co., an authorized Clausing Kalamazoo dealer with over 40 years representing the brand, stocks both horizontal and vertical configurations, with options ranging from 3 HP manual models to 7.5 HP CNC-controlled production machines.
Common Band Saw Part Problems and What They Signal
Blade Drift and Inaccurate Cuts
Blade wanders off the cut line despite steady feed pressure, and finished parts require secondary machining to meet tolerance. Common causes include:
- Misaligned or worn guide inserts
- Incorrect blade tension (too loose)
- Guides set too far from the workpiece
- Blade too wide for the radius being cut
- Damaged tooth set on one side of the blade
Before replacing the blade, check guide alignment, verify tension against the scale, and inspect the guide post height. These adjustments take minutes and often restore accuracy without blade replacement.
Premature Blade Breakage and Dulling
If the blade breaks well short of its expected life — or teeth appear polished or chipped and cutting slows noticeably — the issue is usually mechanical, not the blade itself. Look at these components first:
- Overly tight side guides damaging the blade set
- Worn or missing wheel tires causing blade shock
- Incorrect feed pressure from a malfunctioning power feed or gravity system
- Tensioning system out of calibration
New blades require a 50% feed reduction for the first 50 to 100 square inches of cutting. Skipping this break-in damages the razor-sharp tooth tips and drastically reduces blade life. If breakage occurs after break-in, inspect wheel tires for cracks or flat spots and verify that side guides have proper clearance.
Excessive Machine Vibration
Visible shaking, noisy cutting, and chatter marks on finished parts all point to a vibration problem. The most likely component sources:
- Unbalanced drive or idler wheels
- Worn or mismatched drive belts
- Loose motor mounting bolts
- Workpiece not properly clamped
- Blade pitch incorrect for material thickness (too few teeth engaged)
Letting vibration continue accelerates wear on guides, bearings, and the blade simultaneously. Address it immediately: the underlying mechanical problem will worsen rapidly under continued operation.
Frequently Asked Questions
How does a band saw machine work?
A band saw draws a continuous toothed metal blade around two wheels powered by an electric motor. The blade cuts the workpiece as it passes across or through the material at a controlled speed and feed pressure, removing material in the form of chips.
What are the parts of a band saw machine?
Primary components include structural parts (frame, column, wheels, table, motor), the blade (with its teeth, set, and pitch), and operational controls (tension system, tracking adjustment, blade guides, and guide post).
What is the 3-tooth rule for band saws?
At least 3 to 6 blade teeth must contact the workpiece at all times to prevent tooth stripping and vibration. This rule is the basis for selecting the correct blade pitch (TPI) for a given material thickness, which is especially critical when cutting thin tubing or sheet metal.
What is the difference between a horizontal and vertical band saw?
Vertical band saws move the workpiece against a fixed vertical blade, making them versatile for curves, contours, and fabrication. Horizontal band saws pivot the saw head downward through fixed stock clamped in a vise, optimized for cutting bar stock and structural shapes to length.
How do I know when to replace a band saw blade?
Replace the blade when it cuts slowly or drifts, when teeth appear bright and shiny on the cutting edge, when metals that should produce curled chips instead produce granular chips, or when the blade requires excessive effort to maintain a cut line.
What does blade tension do on a band saw?
Correct blade tension keeps the blade rigid enough to cut accurately without deflecting under load. It also prevents the excessive stress that causes premature blade fatigue and bearing wear. Recheck tension after every blade change, as new blades stretch slightly during initial use.
