Introduction
Selecting the wrong grinding wheel doesn't just reduce efficiency — it damages the workpiece, accelerates wheel wear, and creates unsafe operating conditions in precision manufacturing. A wheel that glazes on hardened steel burns surfaces and destroys tolerances. A wheel mounted beyond its rated speed can burst catastrophically.
Grinding wheel identification charts and ANSI specification codes encode abrasive type, grit, grade, bond, and geometry into a standardized string — giving machinists a precise specification to match against their machine and material. According to OSHA 29 CFR 1910.215, spindle speeds must be verified against wheel markings before mounting — yet many shops skip this step entirely.
Reading that specification correctly is what separates a safe, productive setup from a costly mistake. This guide decodes the full ANSI marking system, explains wheel types and shapes, and provides a practical selection framework for surface grinding, cylindrical grinding, and toolroom work.
TL;DR
- Standard grinding wheels use a six-position ANSI marking system: abrasive type → grit size → grade → structure → bond type
- Wheel selection depends on six factors: workpiece material, operation type, finish requirement, removal rate, machine RPM, and coolant use
- Hard materials need soft-grade wheels; soft materials need hard-grade wheels — reversing this causes glazing, burn, and premature wear
- Wheel shape (Type 1, Type 27, Type 28) must match your grinder geometry and grinding angle — mismatches create safety risks
- When in doubt, verify wheel specs against your machine's rated RPM and arbor size before mounting
What Is a Grinding Wheel?
A grinding wheel is a bonded abrasive tool used for material removal, shaping, and surface finishing. Unlike static cutting tools, grinding wheels continuously expose fresh abrasive grains as the bond wears. This self-sharpening mechanism sustains cutting efficiency — and it's also why selecting the right wheel specification matters far more than most operators expect.
Two broad categories dominate industrial use: bonded grinding wheels (vitrified, resinoid, rubber bonds) used in precision and production grinding, and coated abrasives used for finishing. This article focuses exclusively on bonded wheels for precision applications.
Core Components of a Grinding Wheel
Three elements determine wheel performance:
Abrasive grain (the cutting element):
- Aluminum oxide (A): General-purpose grain for ferrous metals and high-tensile materials
- White aluminum oxide (WA): Friable, cool-cutting variant for tool steels
- Silicon carbide (C/GC): Harder, sharper grain for non-ferrous metals, cast iron, and carbides
- Ceramic aluminum oxide (SG): Self-sharpening microcrystalline grain offering 3-5X longer life than conventional aluminum oxide
Bond (the matrix holding grains):
- Vitrified (V): Glass-like ceramic bond fired at high temperatures; most common for precision grinding due to rigidity and porosity
- Resin (B/BF): Organic polymer bond, reinforced with fiberglass (BF) for high-speed and cut-off applications
- Rubber (R): Flexible organic bond used for centerless regulating wheels and smooth finishing
Structure/porosity controls spacing between grains. Closed structures (grades 1–6) pack grains densely for better form holding and surface finish; open structures (8–14+) widen the spacing for chip clearance and coolant flow, which is critical for soft metals and high stock removal. Grade 7 sits between these as a general-purpose middle ground.

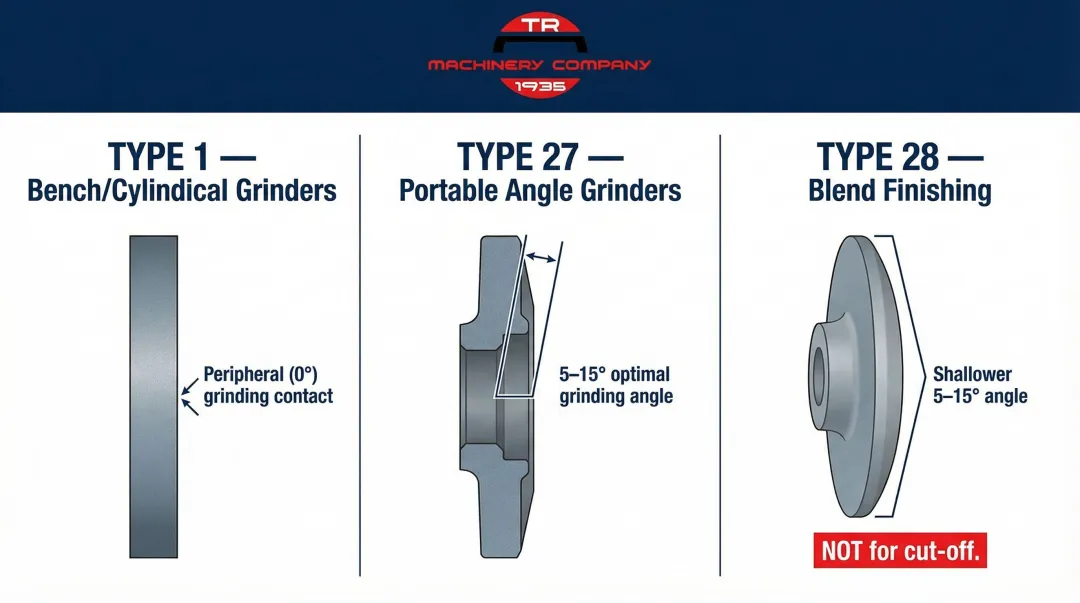

Common Grinding Wheel Types and Shapes
Wheel shape (designated by ANSI B7.1 Type numbers) determines mounting compatibility and grinding angle. The three most common configurations in industrial grinding:
- Type 1 (Straight/Flat): The standard for bench, pedestal, and cylindrical grinders. Grinding occurs on the wheel periphery — ideal for surface grinding with horizontal spindles.
- Type 27 (Depressed Center): Built for portable angle grinders, with a recessed center that allows 5–15° grinding angles. Used heavily in fabrication and weld grinding. UAMA safety standards specify approximately 30° operating angle to prevent side-load failure.
- Type 28 (Saucer/Raised Hub): Similar to Type 27 but with a more pronounced dish, producing a shallower 15° angle and greater surface contact. Suited for blend finishing; not rated for cut-off operations.
How to Read a Grinding Wheel Identification Chart
The ANSI B74.13-2016 standard, published by the Unified Abrasives Manufacturers' Association (UAMA), governs the six-position marking sequence for bonded abrasives. Every compliant wheel label follows this format:
[Abrasive Type] – [Grain Size] – [Grade] – [Structure] – [Bond Type] – [Manufacturer's Code]
Example: A 36 L 5 V 23
- A = Aluminum oxide abrasive
- 36 = Coarse grit (medium stock removal)
- L = Medium-soft grade (bond hardness)
- 5 = Dense structure
- V = Vitrified bond
- 23 = Manufacturer's proprietary modifier
Example: WA 60 K 8 V
- WA = White aluminum oxide (cool cutting)
- 60 = Medium grit (balanced removal/finish)
- K = Soft grade
- 8 = Standard structure
- V = Vitrified bond
Abrasive Type and Grain Code
Primary abrasive letter codes:
| Code | Grain Type | Best For |
|---|---|---|
| A | Aluminum oxide (brown) | General-purpose ferrous metals, high-tensile steels |
| WA | White aluminum oxide | Cool cutting on tool steels, heat-sensitive alloys |
| C | Silicon carbide (black) | Non-ferrous metals, cast iron |
| GC | Green silicon carbide | Cemented carbides, ceramics, carbide tooling |
| SG | Seeded gel ceramic aluminum oxide | High-performance applications requiring maximum wheel life |
Norton Proprietary Designations:Manufacturers add prefixes to indicate grain blends:
- 32A: Sharp monocrystalline aluminum oxide (purple grain) for medium-to-heavy stock removal
- 38A: White friable aluminum oxide (99.8% pure) — the coolest-cutting option for tool steels
- 5SG: High-concentration ceramic aluminum oxide blend offering 3-5X longer wheel life
Grain Size (Grit Number)
Grit numbers run inverse to particle size: the higher the number, the finer the grain.

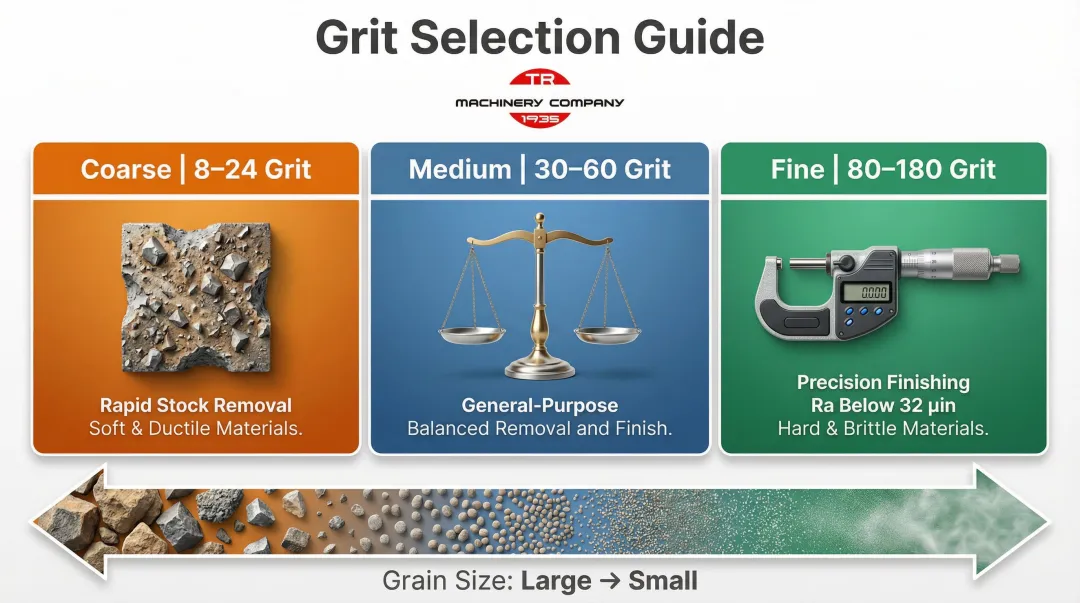

Grit Selection Guide:
| Grit Range | Particle Size | Best For |
|---|---|---|
| 8-24 | Coarse | Rapid stock removal, soft/ductile materials, rough surfaces |
| 30-60 | Medium | Balanced removal and finish, general-purpose grinding |
| 80-180 | Fine | Precision finishing, tight tolerances (Ra < 32 µin), hard/brittle materials |
Practical rule: Use coarser grits for soft, ductile materials and heavy stock removal. Use finer grits for hard, brittle materials and surface finishes below 32 µin Ra.
Grade (Hardness Letter)
Grade refers to bond hardness: how firmly the bond retains abrasive grains, not the hardness of the abrasive itself.
Scale: Soft (A-H) → Medium (I-P) → Hard (Q-Z)
Grade Selection Rule:
- Hard workpieces → Soft-grade wheels: Bond releases dull grains quickly, preventing glazing and heat buildup
- Soft workpieces → Hard-grade wheels: Bond retains sharp grains longer for efficient cutting
Ignoring this rule leads directly to burning, chatter, and surface damage. Two warning signs to watch for:
- Wheel glazes (smooth, shiny surface that rubs instead of cuts): grade is too hard
- Wheel wears excessively: grade is too soft
Structure Number and Bond Code
Structure numbers typically range from 1 (dense) to 14+ (open):
- Open structures (higher numbers) improve chip clearance and coolant penetration
- Prevents loading in aluminum, titanium, and other soft metals prone to wheel clogging
- Dense structures (lower numbers) improve form holding and surface finish consistency
Bond codes:
- V (Vitrified): Rigid, precise, most common for surface and cylindrical grinding
- B / BF (Resin/Reinforced): Flexible, high-speed capable, cut-off wheels
- R (Rubber): Smooth finish, centerless grinding regulating wheels
How to Choose the Right Grinding Wheel for Your Application
Grinding wheel selection comes down to five variables: workpiece material, operation type, machine parameters, finish requirements, and coolant conditions. A mismatch in any one of them degrades wheel life, parts-per-dress, or surface finish — and in the worst cases, creates burn or safety hazards.
Workpiece Material
Material hardness and ductility dictate both abrasive type and grade.
Hard, heat-treated steels and tool steels:
- Abrasive: White aluminum oxide (WA or 38A-type) or ceramic (SG)
- Grade: Softer (H-L) to ensure self-sharpening
- Grit: Medium-to-fine (46-80)
- Ceramic wheels (SG) offer best wheel life and lowest cost-per-part in production runs
Non-ferrous metals, cast iron, carbide, ceramics:
- Abrasive: Silicon carbide (C or GC) — aluminum oxide wheels will glaze and fail to cut
- Grade: Medium-to-hard to prevent excessive wheel wear
- Structure: Open (10-14) to prevent loading from soft chips

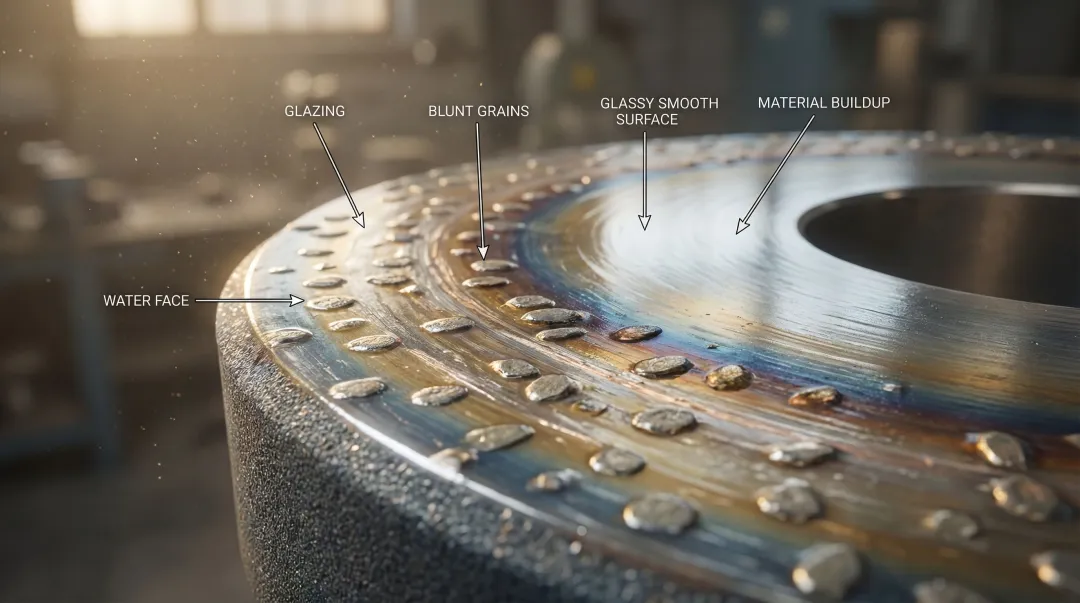

As Norton's industrial technical guidelines confirm, using aluminum oxide on non-ferrous materials causes wheel loading and glazing, eliminating cutting efficiency and generating excessive heat.
Operation Type and Stock Removal Rate
Once material type is confirmed, match your wheel to the operation — aggressive removal and fine finishing require opposite specifications.
Rough grinding and heavy stock removal:
- Grit: Coarse (24-36)
- Grade: Medium-to-hard
- Structure: Open
- Bond: Vitrified for precision; resin for high-speed portables
- Priority: Metal removal rate (MRR) over finish
Precision/finish grinding and form grinding:
- Grit: Fine (46-80+)
- Grade: Matched to material hardness
- Structure: Closed (1-6) for form holding
- Priority: Dimensional accuracy and surface finish consistency
Machine Compatibility and Maximum Operating Speed
Every grinding wheel is marked with a maximum operating speed in RPM or SFPM (surface feet per minute). Exceeding this rating is a critical safety hazard that can cause wheel burst.

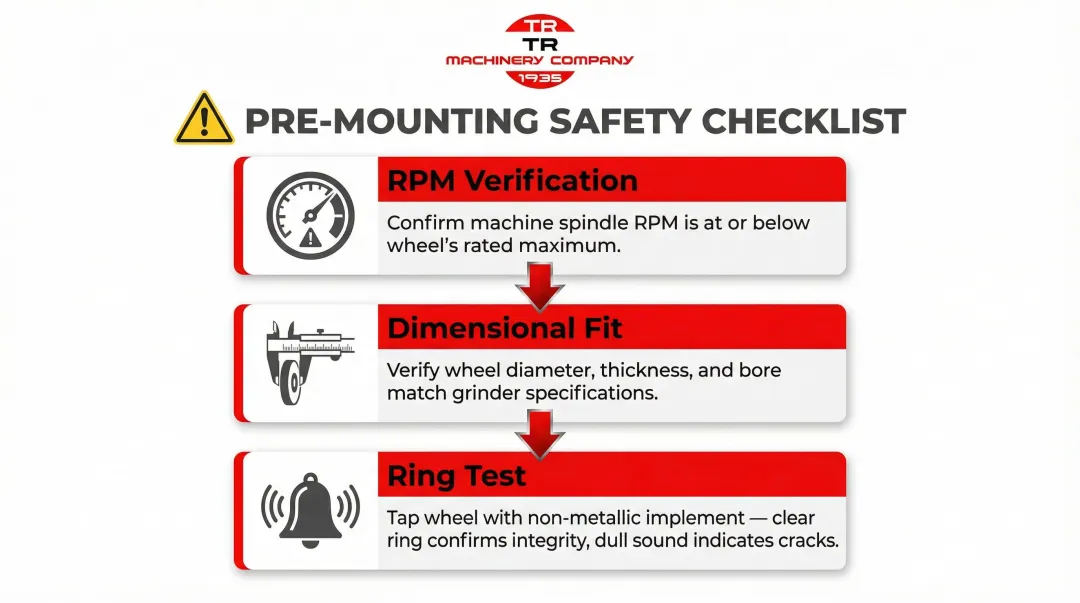

Before mounting, verify:
- Machine spindle RPM matches or is below wheel's rated maximum RPM
- Wheel diameter, thickness, and bore fit the grinder's specifications
- Wheel has passed the Ring Test (tap gently with non-metallic implement — undamaged vitrified wheels ring clearly; cracked wheels sound dull)
Machine tool manufacturers — such as KENT surface grinders carried by T.R. Wigglesworth — include recommended wheel size ranges and maximum RPM in equipment specifications. Matching these parameters ensures safe, optimal performance.
Required Surface Finish and Wheel Hardness
Surface finish requirements (Ra or Rz values) directly dictate grit selection.
According to Norton's industrial technical data, expected surface finish by grit size for precision grinding:
| Grit | Ra (µm) | Ra (µin) |
|---|---|---|
| 46 | 1.10 | 42 |
| 60 | 0.80 | 32 |
| 80 | 0.70 | 26 |
| 120 | 0.40 | 16 |
| 180 | 0.20 | 8 |
If the wheel glazes (loses cutting action without wearing):
- Grade is too hard for the material
- Dress more frequently or select a softer grade
If the wheel wears excessively:
- Grade is too soft
- Select a harder grade
Wet vs. Dry Grinding Conditions
Coolant presence directly alters grade and structure selection — often by one to two steps in either direction.
Wet grinding (coolant-assisted):
- Allows wheels 1-2 grades harder than dry grinding
- Supports finer grits for better finish
- Controls thermal damage on aerospace titanium and medical-grade stainless
- Extends wheel life and improves form holding
Dry grinding:
- Mandates open structures (10-14+) to manage heat buildup
- Requires softer grades for faster grain release
- Often uses resinoid bonds for thermal flexibility
- Higher risk of burn on heat-sensitive alloys

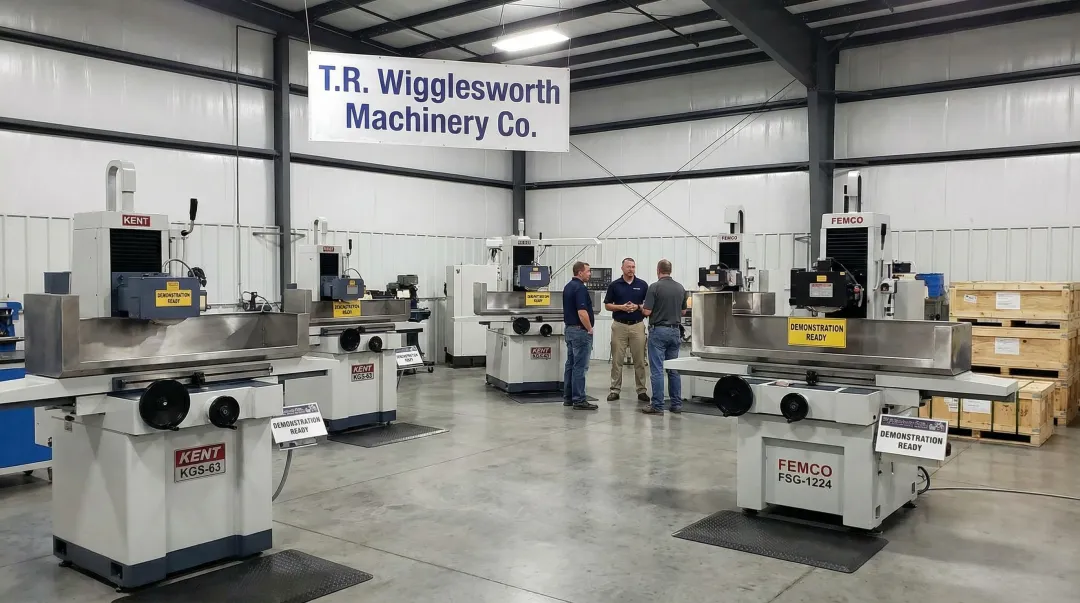

How T.R. Wigglesworth Machinery Co. Can Help
T.R. Wigglesworth Machinery Co. has supplied industrial grinding machines and tooling since 1935. That history means the company has worked through the wheel selection problems that aerospace, medical device, and heavy manufacturing shops run into — mismatched specs, incorrect mounting, incompatible spindle speeds — and knows how to avoid them.
As an authorized dealer for KENT, FEMCO, and DAH LIH grinding machines, T.R. Wigglesworth provides machine-specific wheel compatibility guidance. Access to Norton abrasives means wheel specifications can be matched directly to a machine's spindle speed, table size, and application requirements — whether the job involves aerospace tolerances or heavy stock removal.
What T.R. Wigglesworth brings to wheel selection:
- Over 85 years of machine tool expertise across precision, heavy, and mold machining industries
- Authorized dealer for KENT, FEMCO, and DAH LIH grinding machines, with access to OEM specs for correct wheel fitment
- Access to Norton abrasives product line for verified specifications
- Delivery, installation, and training services to ensure correct wheel mounting and machine setup from day one
Conclusion
Selecting the right grinding wheel starts with decoding the identification chart. Each variable — abrasive type, grit, grade, structure, bond, and wheel shape — maps directly to what the wheel will and won't do in practice.
Once you can read that specification string, the right choice becomes clear: it's the wheel calibrated to your material, machine, operation, and finish requirement — not the most expensive or most popular option. Revisit your wheel selection whenever materials, tolerances, or equipment shift. Even a small change in workpiece hardness or spindle speed can make a previously reliable wheel the wrong tool for the job.
Frequently Asked Questions
How do you read a grinding wheel specification/code?
A standard wheel spec follows the sequence: abrasive type (letter) → grain size (number) → grade (letter) → structure (number) → bond type (letter). For example, "A 36 L 5 V" indicates aluminum oxide, 36 grit, medium-soft grade, dense structure, and vitrified bond.
How do I identify a grinding wheel by its markings?
Markings on the wheel label or blotter include dimensional specs (diameter × thickness × bore), the ANSI marking sequence, maximum operating RPM, and manufacturer's proprietary code. Together these fully identify the wheel's composition and safe use conditions.
What do grit numbers, abrasive codes, and grade letters mean?
- Grit 36: Coarse — fast stock removal, rougher finish
- Grit 60: Medium — balanced removal and finish quality
- 32A: Norton's sharp monocrystalline aluminum oxide for medium-heavy grinding
- 38A: White friable aluminum oxide for cool cutting on tool steels
- Grade Z: Hardest bond classification, used where maximum grain retention is needed
How do you select the correct grinding wheel for a job?
Follow this sequence:
- Identify workpiece material
- Determine operation type (rough removal vs. finish grinding)
- Set your surface finish target
- Check machine RPM and wheel size limits
- Choose abrasive type, grit, grade, structure, and bond accordingly
What is a Type 27 grinding wheel and how does it differ from Type 1 and Type 28?
Type 1 is a flat wheel used on bench and cylindrical grinders for peripheral grinding. Type 27 has a depressed center for 5–15° angle grinding on portable grinders, commonly used for weld removal. Type 28 has a more pronounced dish for shallower contact angles and blending applications.
Do all grinding wheels fit all grinders, or how do I know if a wheel fits my grinder?
Wheels must match the grinder's arbor bore size, maximum wheel diameter, and spindle RPM rating. Mounting an oversized wheel or one rated below the machine's RPM is a serious safety hazard. Always verify both the machine specifications and the wheel's rated maximum operating speed before installation.
